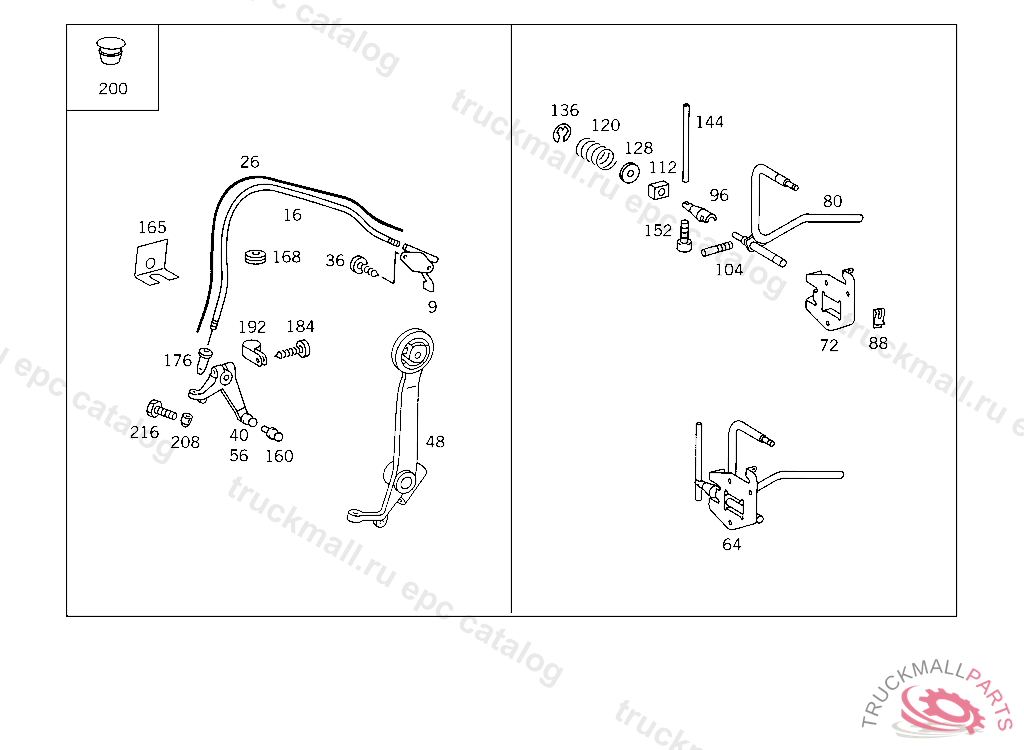

Поз.
Артикул
Описание
9
LEVER MANUAL CONTROL
9
LEVER MANUAL CONTROL
16
WIRE SPIRAL , ORDER BY THE METER
26
WIRE IDLING ADJUSTMENT
26
WIRE IDLING ADJUSTMENT, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
36
SHEET METAL SCREW
40
LEVER (CONTROL LEVER), 10/50 FROM CHASSIS 240107-499999 ALSO INSTALLED ON 235047,236260,237247-237256,239123,239954. 20/60 FROM CHASSIS 240088-499999 ALS ONSTALLED ON 235047,236260,237247-237256,239123,239954. FROM CHASSIS 556500 ALSO INSTALLED ON 539105,550539,550540,550680-550682,552384,552385,552524,552525,552673-552675,552828,552829,552985, 552986,553156-553161,553308-553310,553466-553468,553635-553637,554257,554260,554261,555183-555185, 555642,555643.
48
LEVER (CONTROL LEVER), FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
56
LEVER (CONTROL LEVER)
64
LEVER ,P 012148
72
BEARING BRACKET ,P 012148
80
LEVER ,P 012148
88
CLIP LEVER TO SHAFT,P 012148
96
SHAFT ,P 012148
104
STUD LEVER TO SHAFT,P 012148
112
BUSHING ,P 012148
120
SPRING ,P 012148
128
FITTED WASHER ,P 012148
136
LOCK PLATE INTERMEDIATE BEARING
144
LEVER ,P 012148
152
SCREW SHIM TO LEAF SPRING
152
SCREW , Replaced By: A0019907212
152
SCREW , Replaced By: N000912006175
160
BALL PIVOT
165
BRACKET WIRE CABLE TO HOOD BRACKET
168
GROMMET CAB ROOF
168
GROMMET
176
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
184
SHEET METAL SCREW , Replaced By: N000000000459
184
SHEET METAL SCREW , Replaced By: N007981004339
184
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
184
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
192
CLAMP LINE MOUNTING SA 088202/01
200
STOP PLUG. PLUG COVERING
208
RING WIRE CABLE TO LEVER
208
END PIECE WIRE CABLE
216
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
WIRE CABLE , Replaced By: A6013000132
999
GROMMET
999
BUTTON. KNOB
999
NUT
