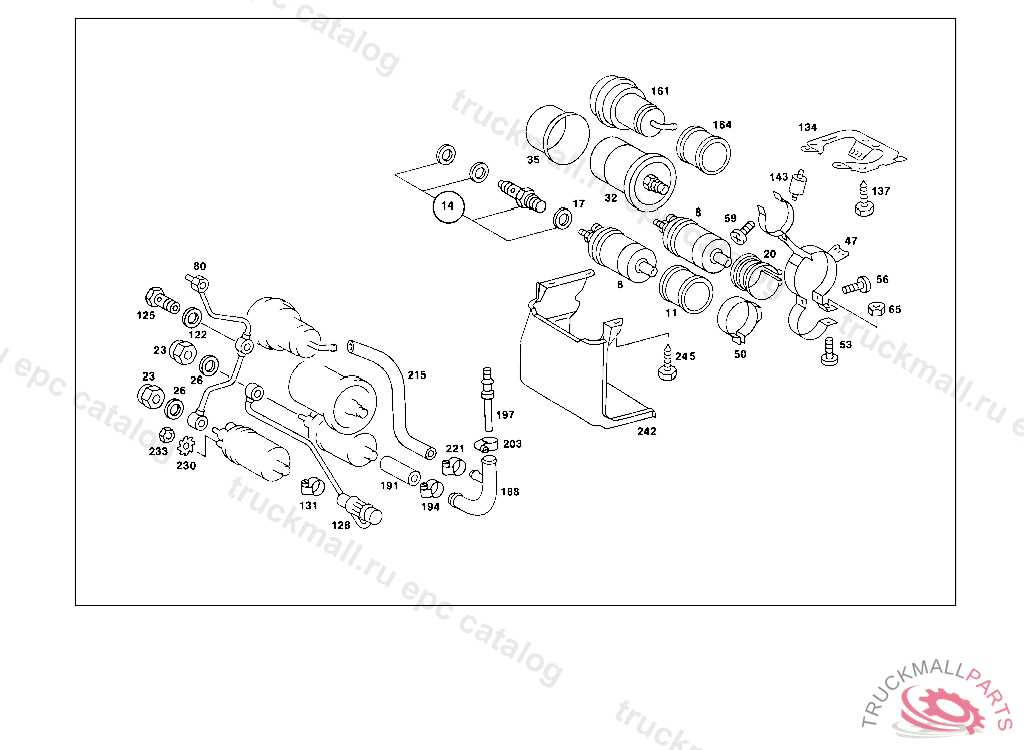

Поз.
Артикул
Описание
8
FUEL PUMP ,C 227244 , J 081288
11
INSULATION ,F 021692
14
VALVE ,F 021692
17
SEAL RING LINE CONNECTION
23
NUT
26
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
32
FUEL FILTER , Replaced By: A0024771701
32
FUEL FILTER , NORMAL COURSE OF REPAIR, Replaced By: A0024774401
32
FUEL FILTER , A 240011 (SINDELFINGEN PLANT PRODUCTION END) F 132823 F 282121
32
FUEL FILTER , ONLY FOR R.S.A.
35
INSULATION
47
BRACKET PUMP,FILTER & FUEL ACCUMULATOR
53
SCREW PLUG SOCKET TO REAR CROSS MEMBER
59
SCREW PLUG SOCKET TO REAR CROSS MEMBER, Replaced By: N000000002036
65
NUT TACHOGRAPH TO BRACKET
80
LINE FROM FUEL PUMP TO FILTER AND TO ACCUMULATOR
122
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
125
HOLLOW SCREW HEATING CONNECTION
134
BRACKET , FROM CHASSIS 072 103611
137
SHEET METAL SCREW VALVE TO WINDOW SILL
143
BUFFER
161
ACCUMULATOR
161
ACCUMULATOR
188
ELBOW FITTING
191
HOSE FROM VENT PIPE TO FILLER NECK 400 MM, 000 098845 003 049444 007 042062 083 000290 086 000150 093 000121 102 079297 103 079274 105 099374 183 000405 190 000351
194
CLAMP FROM VENT PIPE TO FILLER NECK
197
FUEL HOSE FROM TANK FILTER TO ELBOW FITTING
203
CLAMP FROM VENT PIPE TO FILLER NECK
215
FUEL HOSE FROM FUEL ACCUMULATOR TO ELBOW FITTING
221
CLAMP CHECK VALVE,K 169122
221
LOOM TIE , Replaced By: A1149970590
221
LOOM TIE , Replaced By: A1149970290
221
LOOM TIE
230
TOOTHED WASHER BACK-UP LAMP TO BRACKET
230
TOOTHED WASHER COVER TO COVERING,K 093739
233
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
233
NUT TACHOGRAPH TO BRACKET
242
PROTECTIVE COVER
245
SHEET METAL SCREW VALVE TO WINDOW SILL
