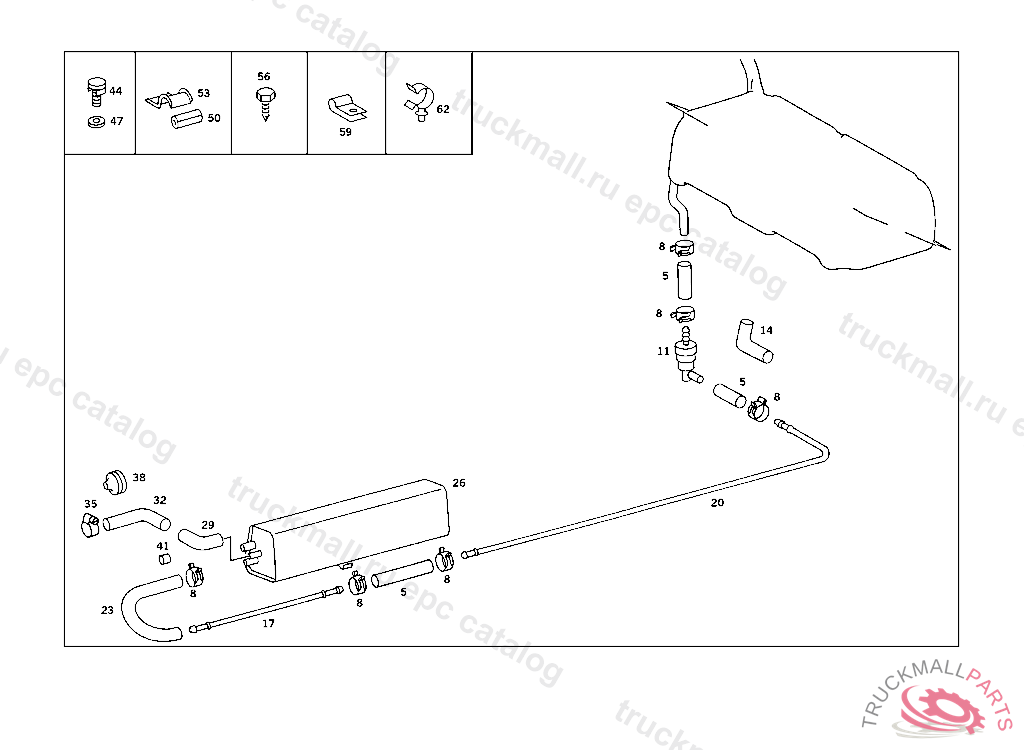

Поз.
Артикул
Описание
5
HOSE FROM FEED LINE TO FILTER 240 MM
5
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
5
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
8
LOOM TIE
11
VALVE ,K 169122
14
HOSE FROM FUEL TANK TO FEED LINE
17
BREATHER PIPE FRONT
20
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
20
BREATHER PIPE , Replaced By: A0004290801
23
MOLDED HOSE
26
ACTIVATED CHARCOAL FILTER , 020,021,023 ONLY ON RETROFIT/CATALYST VEHICLES
26
ACTIVATED CHARCOAL FILTER , Replaced By: A1244700359
29
CONNECTOR ,F 264120
32
PLASTIC PIPE RISING PIPE 4X6 MM
32
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
35
CLAMP CHECK VALVE,K 169122
38
GROMMET
41
BOOT
44
SCREW LINES UNDER FUEL TANK
47
RUBBER RING SIGNAL LAMP TO ROOF
50
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
53
CLAMP FORKED SUPPORT,TOP
56
SHEET METAL SCREW VALVE TO WINDOW SILL
59
CLAMP AT TUNNEL
62
BRACKET LINE MOUNTING 11 MM
