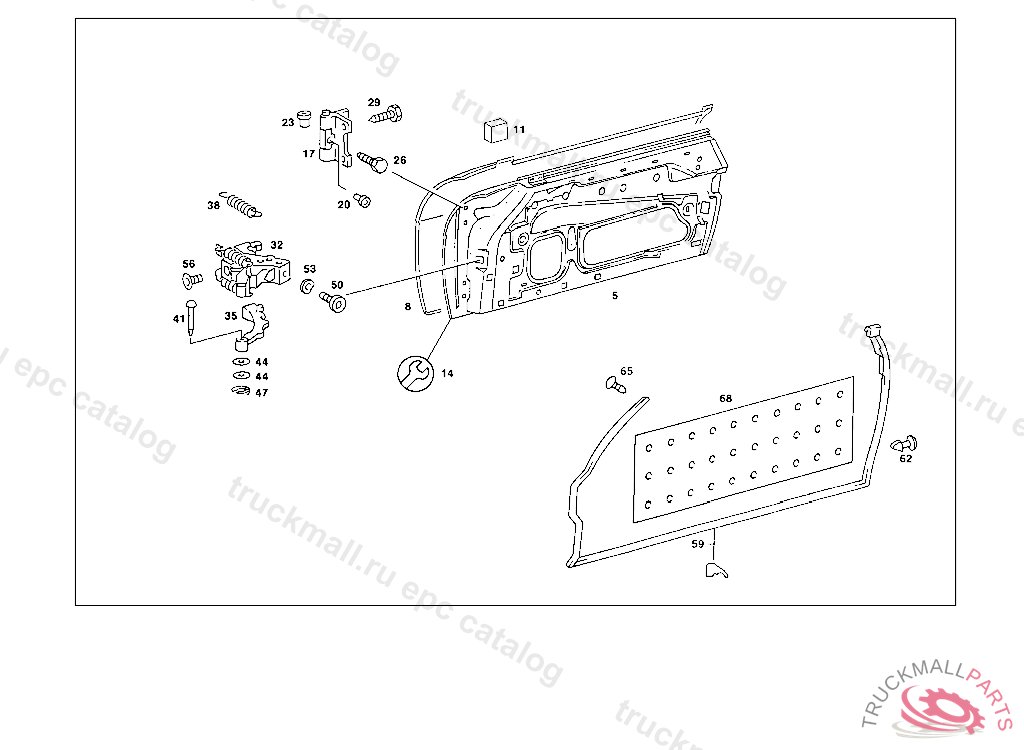

Поз.
Артикул
Описание
5
DOOR SHELL RIGHT
5
DOOR SHELL LEFT
5
DOOR SHELL , Replaced By: A1077202805
5
DOOR SHELL , Replaced By: A1077202705
8
PANELLING RIGHT
8
PANELLING LEFT
11
PAD BETWEEN PANELLING AN STIFFENING TUBE
14
REPAIR KIT CONVERSION OF FRONT DOOR
17
HINGE RIGHT, PRIOR TO INSTALLATION PRESS IN HINGE BOLT FROM OTHER SIDE, HINGE BOLT HEAD MUST POINT UPWARD
17
HINGE , Replaced By: A1077200137
20
GREASE NIPPLE
23
BUSHING
26
SCREW
29
SCREW
32
DOOR CHECK
35
CAM
38
SPRING
41
PIN
44
WASHER
44
WASHER DOOR CHECK TO FRONT PANEL PILLAR
47
LOCK
50
SCREW PLATE TO TRANSMISSION CASE
53
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
53
SPRING WASHER , Replaced By: N000137008212
56
SCREW
59
WEATHERSTRIP RIGHT, 042 015518 045 022257 046 002630
59
WEATHERSTRIP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1077201678
59
WEATHERSTRIP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1077201578
59
WEATHERSTRIP LEFT, 042 015518 045 022257 046 002630
62
PLUG
65
PLUG
68
INSULATION
68
INSULATION
68
INSULATION , Replaced By: A1107270390
68
INSULATION , Replaced By: A2106820008
