Поз.
Артикул
Описание
5

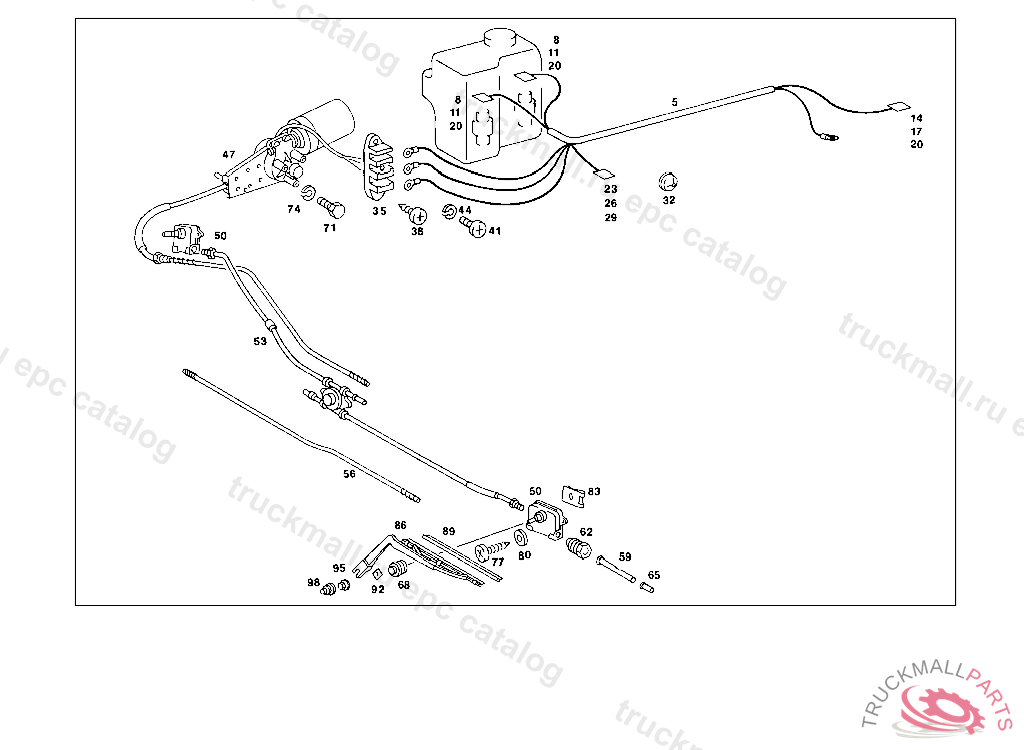

ELECTRIC CABLE HEADLAMP WIPER/WASHER, FROM CHASSIS: 107.022 005201 ALSO INSTALLED ON 005190-005192,005192,005194-005199 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021802 107.025,026,045,046 000001 107.042 004222 ALSO INSTALLED ON 004213,004215-004218,004220 107.043 013577 107.044 047068 ALSO INSTALLED ON 047057,047061,047062,047064-047066
8
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
11
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
14
PIN BUSHING HOUSING 4-POLE
17
COVER
20
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
20
ROUND PIN BUSHING , Replaced By: A0035452626
23
PLUG HOUSING
26
COVER
29
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
32
GROMMET BLINKER LAMP BRANCH-OFF
35
CABLE CONNECTOR TRIPLE
38
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
41
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
41
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
41
SCREW , Replaced By: N007985006580
41
SCREW , Replaced By: N007985004107
41
SCREW , Replaced By: N007985005157
44
LOCK WASHER BRACKET TO STEERING COLUMN END
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
44
LOCK WASHER T-FITTING TO BRACKET
47
ELECTRIC MOTOR
50
GEARING
53
DRIVE
56
CRANK
59
PROTECTIVE TUBE
62
HOLLOW SCREW
65
CAP
68
CAP
71
SCREW COVER PLATE TO COVER PLATE M 6 X 10
71
SCREW , Replaced By: N304017006034
74
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
77
SHEET METAL SCREW OIL LINE MOUNTING
80
WASHER , Replaced By: N000433005304
83
LOCK INSTRUMENT PANEL TO PANELLING
86
WIPER ARM LEFT
86
WIPER ARM RIGHT
89
WIPER RUBBER
92
PLATE
95
NUT WINDOW REGULATOR TO REAR DOOR
98
LOCKING CAP
