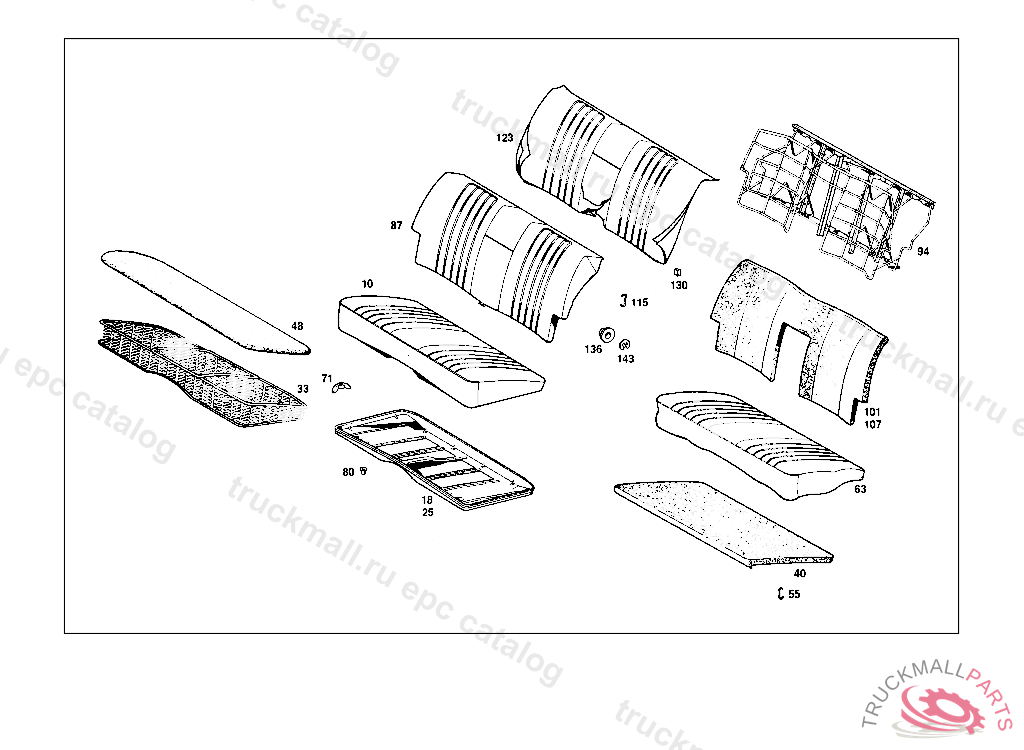

Поз.
Артикул
Описание
10
REAR SEAT CUSHION , WHEN ORDERING STATE COLOR NUMBER
25
CUSHION FRAME
33
SPRING CORE
40
PAD
48
PAD
48
PAD
55
CLIP COVER TO PAD
63
COVER , STATE COLOR NUMBER WHEN ORDERING 087142
80
GROMMET REAR SEAT CUSHION TO FLOOR
87
BACKREST WITH CENTRAL FOLDING ARMREST, WHEN ORDERING STATE COLOR NUMBER
94
BACKREST FRAME , MIND RANG OF DELIVERY
107
PAD
115
CLIP COVER TO PAD
130
CLIP
999
NUT BALL PIVOT TO LEVER
999
PAD , Replaced By: A1159240114
999
COVER LEATHER, WHEN ORDERING STATE COLOR NUMBER
999
BACKREST FRAME , 025 UP TO CHASSIS 003785, Replaced By: A1119808134, +001A1119707130, +002A1159730820, +002N006799009001
999
COVER , Replaced By: A1119205946
999
SPRING CORE , Replaced By: A1159200040
999
COVER , FROM CHASSIS 028778 INSTALLED ON 028752,028754,028755,028765,028766,028776
999
SEAT CUSHION LESS COVER
999
SPRING CORE , Replaced By: A1159200040
999
REAR SEAT CUSHION , Replaced By: A1119205420, +002A0009900662
999
BACKREST LESS COVER WITH CENTRAL FOLDING ARMREST
999
SEAT CUSHION LESS COVER , Replaced By: A1119205302, +002A0009900662
999
CUSHION FRAME , Replaced By: A1119205302, +002A0009900662
999
WASHER
999
CLIP COVER TO REAR SEAT BENCH BACKREST FRAME, 010 UP TO CHASSIS 068345, 110 UP TO CHASSIS 105977
999
CLIP BLOWER COVERING
