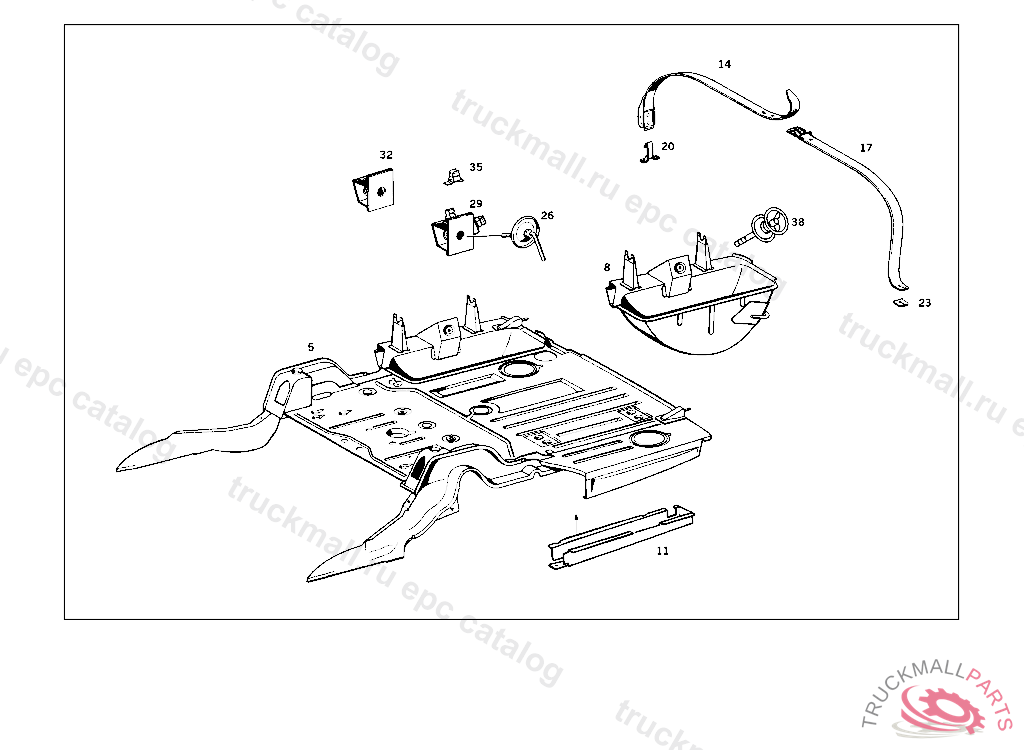

Поз.
Артикул
Описание
5
FLOOR , Replaced By: A1156100461
5
FLOOR
8
SPARE WHEEL WELL
8
SPARE WHEEL WELL , Replaced By: A1156100375
11
STAY LEFT
14
BELT WITH TENSION LOCK
17
BELT
20
FIXTURE TENSION LOCK
23
PLATE
23
PART NAME MISSING , Replaced By: A1158980011
26
BRACKET
29
CONSOLE
32
CONSOLE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1158900131
35
BRACKET
38
BRACKET , Replaced By: A1078900214
38
BRACKET
999
SHEET METAL NUT , Replaced By: N913008006300
999
LEDGE LUGGAGE COMPARTMENT
999
SCREW (SPARE WHEEL TO SIDE PANEL)
999
SCREW
999
CLAMP
999
CLAMP
999
LEDGE , Replaced By: A1086830224
999
BRACKET
999
STAY RIGHT
999
SCREW BRACKET TO COVERING
999
SCREW COVER PLATE TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N000000001145
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
