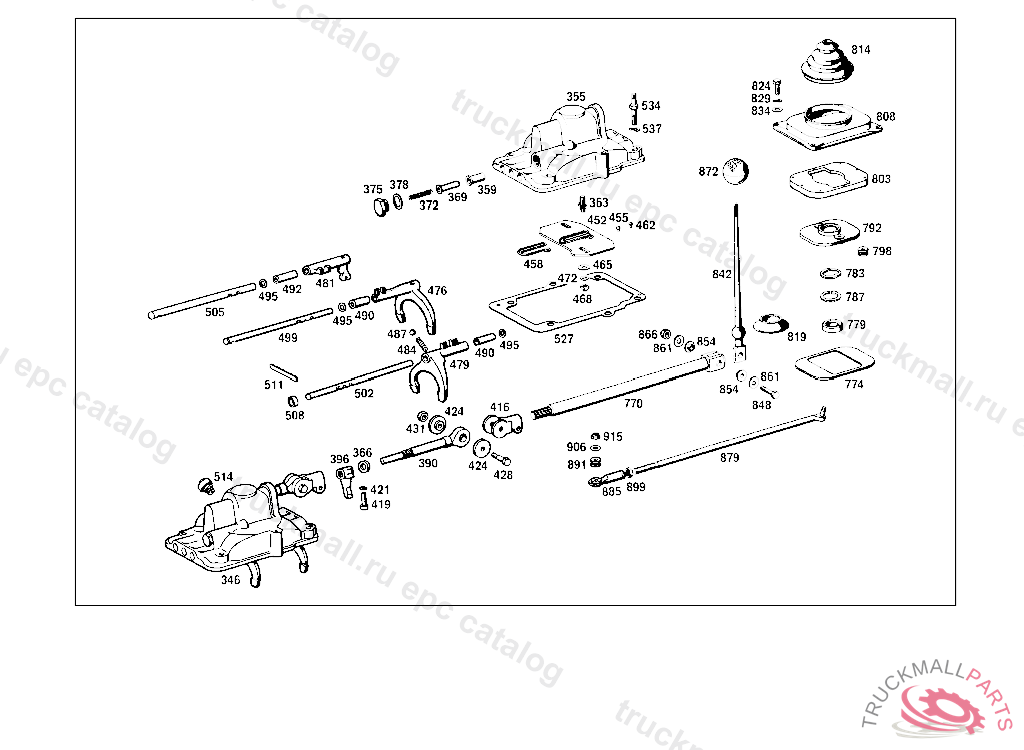

Поз.
Артикул
Описание
346
TRANSMISSION CASE COVER
346
TRANSMISSION CASE COVER , Replaced By: A1112603414
355
TRANSMISSION CASE COVER , ON SPECIAL REQUEST, FLOOR SHIFT
359
BUSHING INTERLOCK PIN, 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1
363
INTERLOCK PLUG , Replaced By: A3442657044
366
SEAL RING , ON SPECIAL REQUEST, FLOOR SHIFT
369
INTERLOCK PIN REVERSE SPEED, 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1556499
372
PRESSURE SPRING INTERLOCK PIN, 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1556499
375
SCREW PLUG
378
SEAL RING SOLENOID VALVE A 18X24
390
SHAFT
390
SHAFT , Replaced By: A1112600038
396
SHIFTING FINGER , ON SPECIAL REQUEST, FLOOR SHIFT
416
YOKE , ON SPECIAL REQUEST, FLOOR SHIFT
419
SCREW , ON SPECIAL REQUEST, FLOOR SHIFT
421
LOCK WASHER , 010 UP TO REAR AXLE 009905,012 UP TO REAR AXLE 026069
424
SEAL , ON SPECIAL REQUEST, FLOOR SHIFT
428
PIN , ON SPECIAL REQUEST, FLOOR SHIFT
431
NUT
452
GUIDE PLATE , ON SPECIAL REQUEST, FLOOR SHIFT
455
PIN , ON SPECIAL REQUEST, FLOOR SHIFT
458
PRESSURE SPRING , ON SPECIAL REQUEST, FLOOR SHIFT
462
RIVET , ON SPECIAL REQUEST, FLOOR SHIFT
465
WASHER DETENT PLATE TO COVER, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
468
NUT , FROM TRANSMISSION
472
SPRING WASHER , ON SPECIAL REQUEST, FLOOR SHIFT
476
SHIFTING FORK 1ST AND 2ND SPEED
479
SHIFTING FORK 3RD AND 4TH SPEED
481
LEVER REVERSE SPEED
484
SPRING
487
BALL
490
SPACER TUBE
492
SPACER TUBE
495
WASHER 0.30 MM
499
SHIFTING ROD 1ST AND 2ND SPEED
502
SHIFTING ROD 3RD AND 4TH SPEED
505
SHIFTING ROD REVERSE SPEED
508
SPACER TUBE
511
KEY
514
BREATHER TRANSFER CASE
527
GASKET
534
PIN ,042 007201042 014258
537
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
537
SPRING WASHER , Replaced By: N000137008212
770
SHIFTING TUBE
774
RUBBER PAD , Replaced By: A1112670086, +001A1112600395, +001A1112680697, +001A0009947041
774
RUBBER RING
779
RUBBER RING
783
WASHER
787
LOCK
792
BEARING
798
BUSHING
803
BEARING COVER TOP
808
COVER PLATE
814
BOOT
819
BOOT BOTTOM,042 014258
824
SCREW COVER PLATE TO BRACKET
829
SPRING WASHER LICENSE PLATE TO BRACKET
834
WASHER COVER PLATE TO COVER PLATE
834
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
842
SHIFT LEVER
848
SCREW
854
BUSHING
861
WASHER
866
NUT
872
KNOB
879
PULL ROD ,067753
885
END PIECE ,042 014258
891
BUSHING
899
NUT
906
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
906
WASHER COVER PLATE TO COVER PLATE
915
NUT
999
SWITCH ,000101003390, Replaced By: A0005451206, +002A0035452626, +001A0085453728, +001A0085453828
999
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
BALL BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
SEAL RING , 105925
999
GASKET KIT TRANSMISSION
999
PULL ROD ,067752, Replaced By: A1112600389, +001N000985006000
999
COUNTERSHAFT , 014 FROM TRANSMISSION 063031,021/023 FROM TRANSMISSION 000101 014 UP TO TRANSMISSION 163395 NOT INSTALLED ON 128601-128710,021/023 UP TO TRANSMISSION 004870
999
TRANSMISSION CASE COVER , 105925, Replaced By: A1112600621, +001A1112610279
999
TRANSMISSION CASE COVER FRONT, 105926-261361
999
TRANSMISSION WITH BELL HOUSING
999
GASKET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
GEAR 1ST SPEED, 014 UP TO TRANSMISSION 163395 NOT INSTALLED ON 128601-128710,021/023 UP TO TRANSMISSION 004870
999
SYNCHRONIZER BODY , 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12 NO LONGER AVAILABLE
999
KNOB ,042 004925, Replaced By: A1112680242
999
PIN ,042 007200, Replaced By: A1112680774, +001N000985006000
999
KNOB , Replaced By: A1112680942
999
BEARING COVER BOTTOM
999
REPAIR KIT TRANSMISSION CASE FRONT COVER
999
WASHER1.0 MM, 10/50,12/52 UP TO CHASSIS 096085, 20/60,22/62 UP TO CHASSIS 095140
999
SCREW ,042 004925, Replaced By: A1119901001, +001A0019900151
999
WASHER0.5 MM, 10/50,12/52 UP TO CHASSIS 096085, 20/60,22/62 UP TO CHASSIS 095140
999
GASKET
999
THRUST WASHER , Replaced By: A1202621362
999
THRUST WASHER 4.50 MM
999
THRUST WASHER , Replaced By: A1202621562
999
THRUST WASHER , NOT USED
999
THRUST WASHER , Replaced By: A1202621862
999
THRUST WASHER AS REQUIRED
999
THRUST WASHER , Replaced By: A1202622062
999
THRUST WASHER AS REQUIRED
999
PIN ,041857
999
SPACER WASHER 0.20 MM
999
SPACER WASHER 0.2 MM
999
SPACER WASHER 0.3 MM
999
SPACER WASHER 0.30 MM
999
SNAP RING , Replaced By: A1369940935
999
SNAP RING 2.05 MM
999
GEAR 38 TEETH, 3RD SPEED, 014 UP TO TRANSMISSION 163395 NOT INSTALLED ON 128601-128710,021/023 UP TO TRANSMISSION 004870
999
GASKET , 040898
999
THRUST WASHER 3.90 MM
999
THRUST WASHER 4.00 MM
999
THRUST WASHER 4.10 MM
999
THRUST WASHER AS REQUIRED 4.20 MM
999
COVER AS REQUIRED 4.30 MM
999
THRUST WASHER 4.40 MM
999
THRUST WASHER 4.50 MM
999
SHIFTING FORK 1ST AND 2ND SPEED
999
PIN ,042 008399, Replaced By: A1112670074, +001A0019900151
999
SPACER WASHER AS REQUIRED 0.10 MM, UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
SPACER WASHER 0.25 MM
999
SPACER WASHER 0.50 MM
999
COTTER PIN
999
WASHER
999
LOCK WASHER TAIL LAMP TO BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N000933006194
999
SCREW YOKE TO SHIFTING TUBE
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW , Replaced By: N304017008043
999
SCREW CLUTCH TO FLYWHEEL
999
SCREW , Replaced By: N304017010050
999
NUT , Replaced By: N304032008006
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW VALVE TO BRACKET M 8X55
999
SCREW , Replaced By: N304017010055
999
NUT
999
NUT BATTERY CABLE
