Поз.
Артикул
Описание

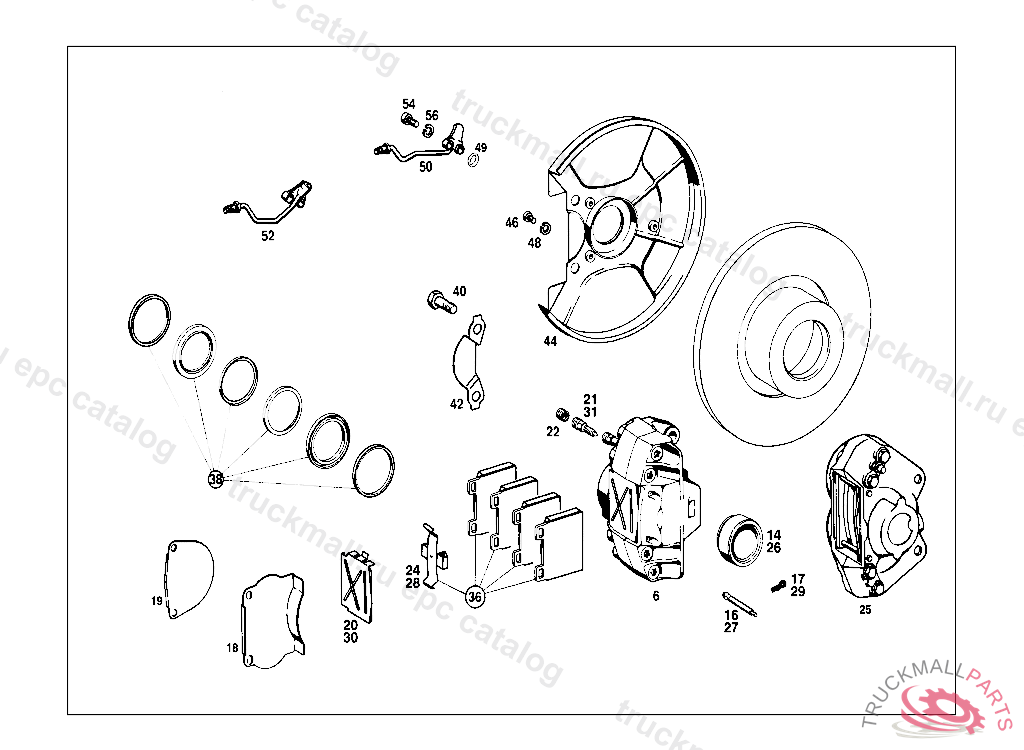

6
CALIPER LEFT,LESS PAD ASSEMBLIES, TEVES, IN PAIRS OPTIONAL W/000 421 73 98,BENDIX, FROM CHASSIS: 010 094997 110 244251
6
CALIPER RIGHT,TEVES,LESS LINING, IN PAIRS OPTIONAL WITH, 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414
6
CALIPER , 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414, Replaced By: A0014218198, +001A0004206720
6
CALIPER , 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414, Replaced By: A0014218298, +001A0004206720
14
PISTON , 005,007,008,015,017 203606 011 014721
16
DOWEL PIN TEVES
20
PROTECTIVE PLATE
21
BLEEDER VALVE
21
BLEEDER VALVE
22
PROTECTIVE CAP , Replaced By: A0004217187
22
PROTECTIVE CAP , Replaced By: A0004210887
22
PROTECTIVE CAP ,5 962906
24
SPRING , 005,007,008,015,017 203606 011 014721
25
CALIPER RIGHT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
25
CALIPER LEFT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
26
PISTON
27
DOWEL PINBENDIX
27
DOWEL PIN , Replaced By: A0009912660, +001A0004210573
28
SPRING
29
LOCK , Replaced By: A0004210573
29
LOCK , Replaced By: A0004210573
29
LOCKBENDIX
30
PROTECTIVE PLATE
31
BLEEDER VALVEBENDIX
36
BRAKE PAD. TS BRAKE PAD PARTS KIT
38
REPAIR KIT MAKE"TEVES"
38
REPAIR KIT BENDIX, 005,007,008,015,017 203606 011 014721
38
REPAIR KIT , Replaced By: A0005866442
40
SCREW
42
LOCK
42
LOCK , Replaced By: A1119940432
42
LOCK , Replaced By: A1159940732
44
PROTECTIVE PLATE LEFT, 016 UP TO CHASSIS 075175, 018,019 UP TO CHASSIS 081818
44
PROTECTIVE PLATE RIGHT
46
SCREW OIL PIPE TO SLEEVE VALVE
48
LOCK WASHER FLEXIBLE SHAFT TO ANGLE DRIVE
50
LINE LEFT
52
LINE RIGHT FROM WHEEL CYLINDER TO CONNECTOR
54
SCREW CONTROL SHAFT TO ENGINE
54
SCREW
54
SCREW , Replaced By: N000912006064
54
SCREW , Replaced By: N000912006170
56
LOCK WASHER
56
LOCK WASHER FLEXIBLE SHAFT TO ANGLE DRIVE
999
LOCK , Replaced By: A0004280673
999
RETAINING SPRING BRAKE HOSE TO BRACKET
999
LEVER , Replaced By: A1145860142, +001A1154202785
999
PIN , Replaced By: A1145860142, +001A1154202785
999
CAP
999
CLAMP
999
SEAL RING
999
SEAL RING , Replaced By: A1139970241
999
LOCK WASHER
999
NUT , 000,001,004,010,016 FROM CHASSIS 064106 ALSO INSTALLED ON, SEE FOOTNOTE 5, 100,101,104,110,116 FROM CHASSIS 099642 ALSO INSTAL LED ON, SEE FOOTNOTE 6, EXCEPT FOR 099892
999
LOOM TIE HAND PUMP
999
LOOM TIE ALTERNATOR BREATHING
999
STRAP , ORDER BY THE METER
999
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
