Поз.
Артикул
Описание
1

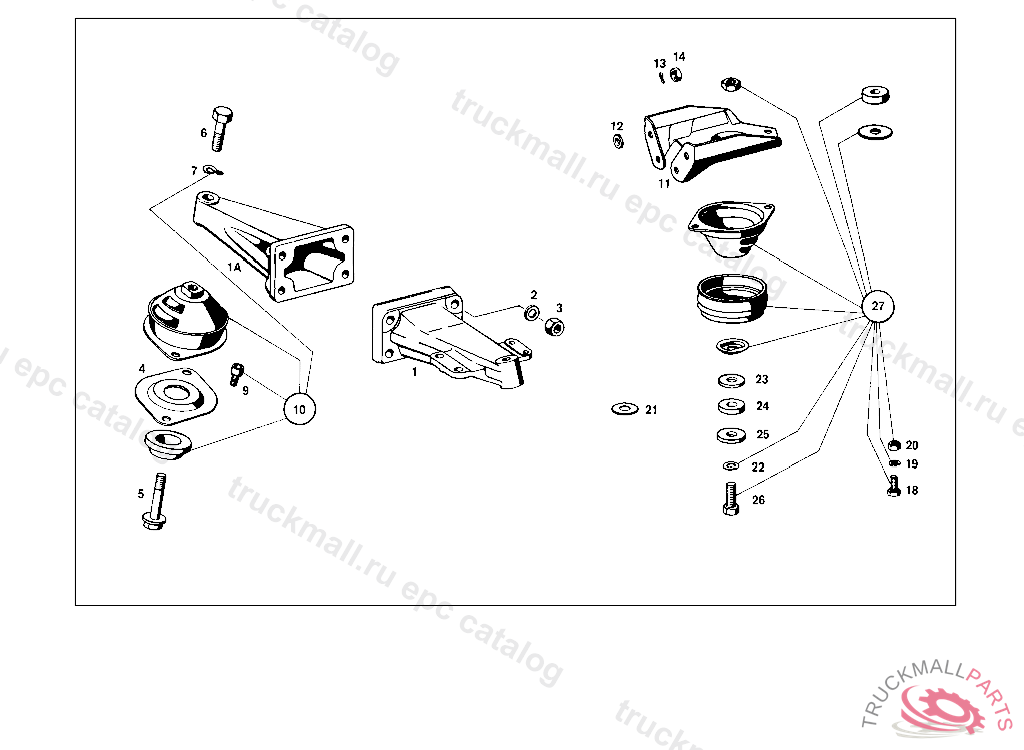

ENGINE SUPPORT LEFT, 981 10/50,20/60000537 981 12/52,22/62000005
2
WASHER
3
NUT BRACKET TO RETARDER
4
PLATE
5
SCREW , 042012865
6
SCREW
7
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
7
SPRING WASHER CAB FLOOR
9
COMBINATION BOLT
10
REPAIR KIT ENGINE FRONT SUSPENSION, 000,001,004,010,016 FROM CHASSIS 116469, 100,101,104,110,116 FROM CHASSIS 196147 FOR EXPORT, ON SPECIAL REQUEST
11
ENGINE SUPPORT REAR, 130558-187306
12
SPACER RING SUPPORT TO OIL PAN
13
SPRING WASHER , Replaced By: N000137008212
14
NUT , Replaced By: N304032008006
14
NUT
18
SCREW , Replaced By: N304017008016
18
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
19
LOCK WASHER TAIL LAMP TO BRACKET
20
NUT
20
NUT , Replaced By: N304032008006
21
ADJUSTING WASHER TIGHTENER PULLEY TO SUPPORT
22
SPRING WASHER CAB FLOOR
22
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
23
ADJUSTING WASHER CLAMPING LEVER TO SUPPORT,6 900042
24
ADJUSTING WASHER SPARE WHEEL HOIST TO FRAME
25
ADJUSTING WASHER SPARE WHEEL HOIST TO FRAME
26
SCREW , Replaced By: N304017012020
26
SCREW END PIECE TO EXHAUST PIPE M 12X30
27
REPAIR KIT
999
RUBBER MOUNTING LEFT, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
ENGINE SUPPORT RIGHT, 981 10/50,20/60000537 981 12/52,22/62000005
999
RUBBER BUFFER ENGINE SUSPENSION,184086 309.0 EXCEPT FOR 050192297 050, 182065 309.1
999
RETAINER , NO LONGER AVAILABLE INDIVIDUALLY
999
RUBBER MOUNTING , NO LONGER AVAILABLE
999
RUBBER MOUNTING , NO LONGER AVAILABLE INDIVIDUALLY
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY
