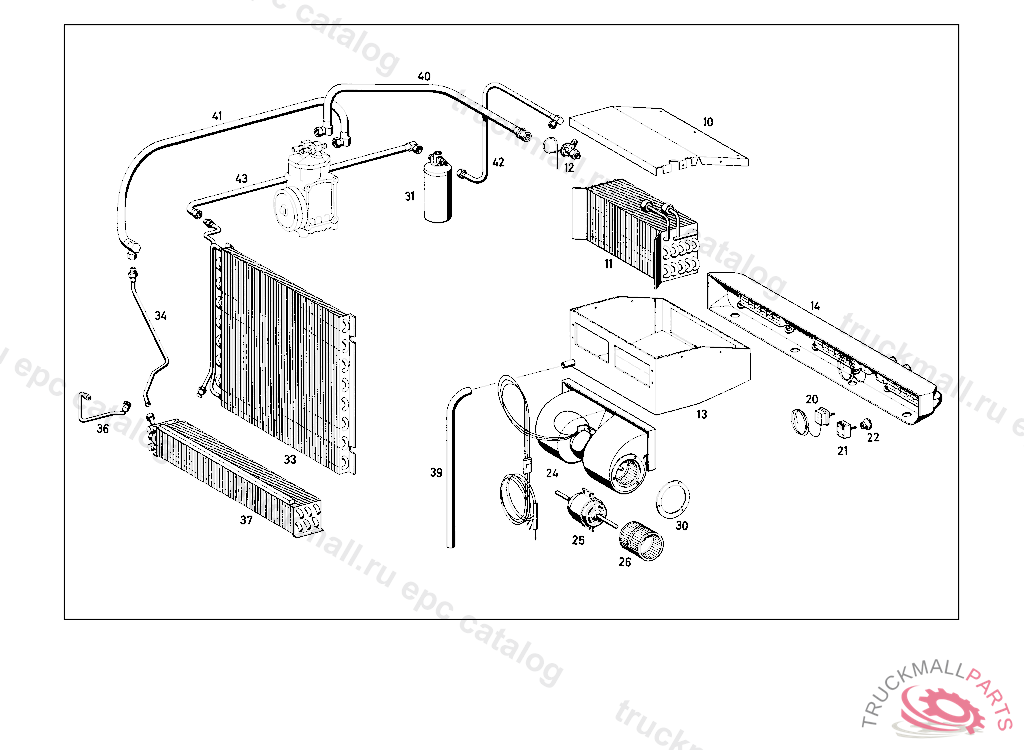

Поз.
Артикул
Описание
10
HOUSING
11
EVAPORATOR
12
VALVE
13
HOUSING
14
AIR DUCT
20
SWITCH
21
SWITCH
22
KNOB
24
BLOWER
25
MOTOR
26
ROTOR LEFT
30
COVERING
31
TANK
33
CONDENSER
34
HOSE
36
HOSE
37
CONDENSER
39
HOSE
40
HOSE
41
HOSE
42
HOSE
43
HOSE
999
LAMP SOCKET
999
BULB
999
CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235
999
SEAL , Replaced By: A0008356598
999
SEAL , Replaced By: A0008356798
999
SEAL , Replaced By: A0008356698
999
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
999
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
999
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
999
FELT WAFFLE-FACED FELT-,FOR FRONT FLOOR,TOP550 X 560 X 10 MM, ORDER BY THE METER 10/50,12/52,000,001,004,010 UP TO CHASSIS 099714,10/50,12/52,100,101,104,110 UP TO CHASSIS 210863,AND FOOTNOTE 4
999
WASHER
999
GROMMET3.0 MM
999
CLIP FLEXIBLE SHAFT TO WHEELHOUSE, 086 007397 093 010089 183 NOT FOR SWEDEN 028930 183 SWEDEN F 001867 ALSO INSTALLED ON 028960 190 030466 ALSO INSTALLED ON 030442 193 005964 280 NOT FOR SWITZERLAND 009681 ALSO INSTALLED ON 009608,009626-009679 280 SWITZERLAND 009208 283 NOT FOR SWITZERLAND 019905 ALSO INSTALLED ON 019489,019510,019514,019524,019528-019534,019541,019543,019548-019550,019554-019575,019587,019590, 019593,019603,019604,019613,019614,019625-019638,019646,019649-019712,019715-019814,019821,019830- 019894,019899,019901. 283 SWITZERLAND F 000423 ALSO INSTALLED ON 021312,F 000333
999
CLAMP FOR CONDENSER-TO-LIQUID-TANK AND EVAPONATOR-TO-COMPRESSOR HOSES
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159870240
999
GROMMET
999
SHIM
999
CLAMP , 107.022 005200 EXCEPT FOR 005190-005192,005194-005199. 107.023 012496 107.024 021803 EXCEPT FOR 021794,021804
999
LINING RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
AIR DISTRIBUTOR
999
NOZZLE
999
PLATE OPERATION INSTRUCTION
999
PLATE MAKE PLATE
999
ROTOR RIGHT
999
CLAMP , Replaced By: A3449957120
999
GROMMET 34 MM
999
SHEET METAL SCREW MODULE TO HOUSING
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017006020
999
SCREW OIL LINE TO CRANKCASE
999
NUT BALL PIVOT TO LEVER
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW , Replaced By: N000000000453
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW LICENSE PLATE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
