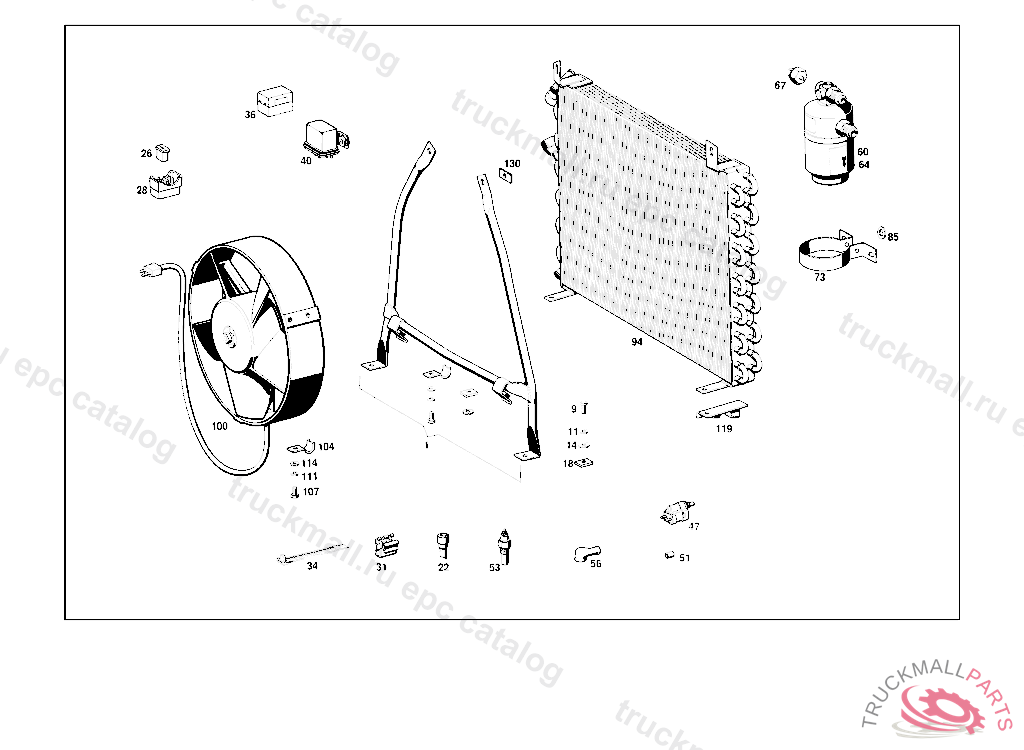

Поз.
Артикул
Описание
1
STRUT , UP TO CHASSIS: 114.011,023,060,062,072,073 100000 114.007,008,015,017 200000 115.015,115 200000 115.110 400000
9
SCREW COVER PLATE TO BRACKET
11
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
14
WASHER COMPRESSED AIR LINE TO BRACKET
14
WASHER , Replaced By: N009021006208
18
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
22
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
22
PLUG
26
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
26
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
28
PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
28
PLUG , Replaced By: A0075450028, +004A0035452626, +001A0095452128
31
CLIP PLUG TO REAR PILLAR
34
LOOM TIE , Replaced By: A0019974390
34
LOOM TIE TO MOUNT PLASTIC PIPING
36
FUSE BOX , Replaced By: A0005459901
36
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
40
RELAY
47
SWITCH
51
SPACER TUBE
53
SWITCH,AUTOMATIC
56
BOOT , Replaced By: A0005463335
56
BOOT HEATER PLUGS
60
TANK
64
TANK
67
SWITCH , Replaced By: A0008208010
67
SWITCH
73
BRACKET
85
WASHER , Replaced By: A2019900640
85
WASHER BRACKET TO BATTERY FRAME CONSOLE
94
CONDENSER
100
BLOWER
104
CLAMP
107
SCREW , Replaced By: N304017006018
107
SCREW COVER PLATE TO COVER PLATE M 6 X 12
111
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
114
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
119
BRACKET LEFT
130
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER T-FITTING TO BRACKET
999
SPRING WASHER , Replaced By: N000137010205
999
SCREW LEVER TO SHAFT
999
FUSE , Replaced By: A0005458334
999
WASHER , Replaced By: N009021006208
999
SCREW FUEL CONSUMPTION DISPLAY
999
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
NUT
999
NUT BALL PIVOT TO LEVER
999
NUT TACHOGRAPH TO BRACKET
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , ALSO APPLICABLE TO VERSION 55705/11-/62
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017005002
999
SCREW
999
WASHER BOOT TO CAB FLOOR
999
SPRING WASHER SHIFTING ROD TO BRACKET
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER , Replaced By: N000433005304
999
TANK , Replaced By: A1158350471
999
CONDENSER , Replaced By: A1158300270, +001A1156200685
999
TANK , Replaced By: A1158350271
999
CONDENSER
999
BRACKET RIGHT
999
BRACKET LEFT
999
BRACKET RIGHT
999
CONDENSER
999
BRACKET RIGHT, ALSO APPLICABLE TO VERSION 55705/11-/62
999
BRACKET , ALSO APPLICABLE TO VERSION 55705/11-/62
999
BLOWER , Replaced By: A0005004093
999
BLOWER , FOR THE NEW PART NUMBER,SEE SA 10 947 OR 10 948, Replaced By: A1145000899
999
BLOWER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 115.000,002,010 078816 115.015 090838 115.100,102,103,110,112 201277 115.115 098453 FOR THE NEW PART NUMBER,SEE SA 10 947 OR 10 948, Replaced By: A1145000899
999
SWITCH,AUTOMATIC , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS: 108.016 034366 108.018,019 035297 109.016 002221 109.018 002815 FROM CHASSIS,SEE STANDARD VERSION, Replaced By: A0035452424
999
PLUG , Replaced By: A0045458628
999
REGULATOR , Replaced By: A0008200710
999
REGULATOR , Replaced By: A0008208010
999
REGULATOR , Replaced By: A0008200710
999
FUSEA16
