Поз.
Артикул
Описание

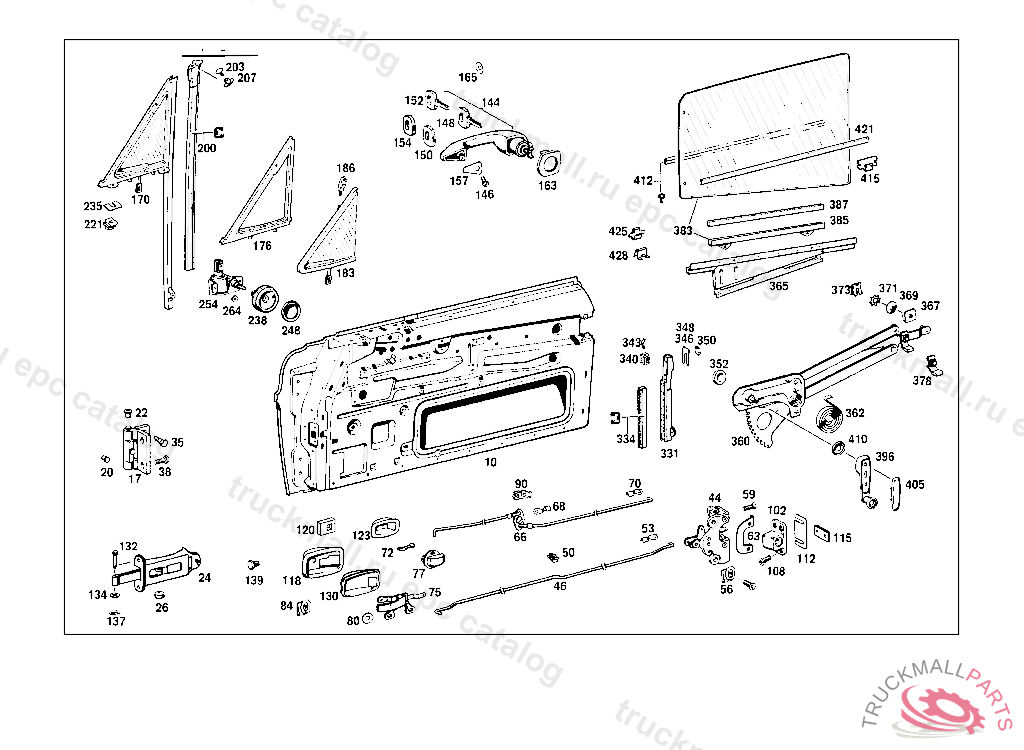

10
DOOR SHELL RIGHT
17
HINGE RIGHT, 068052
17
HINGE , Replaced By: A1157200537
20
GREASE NIPPLE
22
BUSHING
24
DOOR CHECK
26
ROLLER , Replaced By: A3147230068
26
ROLLER
35
SCREW
38
SCREW
38
SCREW , Replaced By: A1239900217
44
LOCK CENTRAL DOOR,001274
46
PULL ROD
50
CLIP
53
LOCK PULL ROD TO DOOR LOCK
56
NUT RETAINER , Replaced By: A3229900091
59
SCREW
59
SCREW , Replaced By: A1409843029
63
EDGING RIGHT
66
DOOR LOCKING DEVICE RIGHT
68
LOCK PULL ROD TO DOOR LOCK
70
LOCK PULL ROD TO DOOR LOCK
72
LOCK
75
INTERIOR HANDLE ASSEMBLY RIGHT
77
DOOR LOCKING DEVICE
80
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
84
NUT RETAINER , Replaced By: A3229900091
90
NUT RETAINER
102
LOCKING EYE RIGHT, FROM CHASSIS: 010 031987 ALSO INSTALLED ON: 026127-026384 110 071329 ALSO INSTALLED ON: 057116-057347
108
SCREW
112
PLATE 0.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
115
PLATE
118
ESCUTCHEON RIGHT
120
SEAL
123
ESCUTCHEON
130
INSERT RIGHT
132
PIN
134
WASHER DOOR CHECK TO FRONT PANEL PILLAR
137
LOCK
144
DOOR HANDLE LESS KEY,RIGHT, STATE LOCK NUMBER WHEN ORDERING
146
PIN
148
KEY , STATE LOCK NUMBER WHEN ORDERING THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
150
KEY HEAD
152
KEY SECONDARY KEY HUF, STATE LOCK NUMBER WHEN ORDERING
154
KEY HEAD
157
PAD FRONT RIGHT
163
PAD REAR RIGHT
163
PAD , Replaced By: A1157660405
165
DISC SPRING
170
VENTILATOR WINDOW RIGHT
176
SEAL RIGHT, 099999
183
VENTILATOR WINDOW RIGHT
186
MOUNTING
200
WINDOW RUN , 099999
203
FASTENER BUTTON
207
FASTENER BUTTON , 099999
221
NUT RETAINER , Replaced By: A3229900091
235
ADAPTER 1 MM, 100001
238
KNOB , 099999
248
CAP
254
FASTENER RIGHT, 099999
264
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
331
SEALING SECTION 2240 MM, ORDER BY THE METER
331
GUIDE RAIL , Replaced By: A0009852930, +002A1157250132, +002A1157250232, +004A1157250064
334
SEALING SECTION , Replaced By: A1157250025
340
GUIDE JAW , FROM CHASSIS: 023 002471
343
SPRING , FROM CHASSIS: 023 002471
346
WASHER
348
ADAPTER 1 MM, 100001
350
DISC SPRING
352
EXPANSION PLUG (FOR DOOR-HANDLE-ASSEMBLY MOUNTING HOLE IN FRONT DOOR INTERIOR PLATE)
360
WINDOW REGULATOR RIGHT
362
SPRING
365
WINDOW REGULATOR RAIL RIGHT
367
REPAIR KIT
367
SLIDE , Replaced By: A1155860072
367
REPAIR KIT , Replaced By: A1237200114
369
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
371
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
373
LOCK , UP TO CHASSIS: 005,007,008,015,017 207357 011 101648 060 102313 062 101808
383
CRANK OPERATED WINDOW RIGHT
385
RETAINING RAIL
387
RUBBER MOULDING
396
CRANK
405
COVERING , STATE COLOR NUMBER WHEN ORDERING
405
PAD , Replaced By: A1237600020
405
COVERING , Replaced By: A1237600120
410
WASHER
412
SEALING RAIL 2200 MM
415
CLIP
421
SEALING RAIL INSIDE LEFT AND RIGHT
421
SEALING RAIL , Replaced By: A1237250265, +005A1239880378
421
SEALING RAIL , Replaced By: A1077250065
425
CLIP , 000103
428
CLIP , 004281
999
KEY TO SWITCH BOX, 001313
999
KEY , STATE LOCK NUMBER WHEN ORDERING, Replaced By: A0007600506
999
KEY BLANK (MASTER KEY) HUF
999
KEY BLANK (SECONDARY KEY) HUF
999
RUBBER PAD , Replaced By: A0009875460
999
RUBBER PAD , ORDER BY THE METER
999
ADHESIVE TAPE , Replaced By: A0019875646
999
NUT RETAINER , Replaced By: A0009908391
999
NUT RETAINER , Replaced By: A0009907191
999
SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER
999
EDGING
999
CRANK , FROM CHASSIS: 000,002,010 046471 015 047683 100,102,110 111771 103,112 112413 115 051671 005,017,105,107,108,117,119 000001, Replaced By: A1237600102
999
INTERIOR HANDLE ASSEMBLY LEFT, 000,001,004,010 FROM CHASSIS 188150,100,101,104,110 FROM CHASSIS 352119,002,003,005,011 FROM CHASSIS 031990
999
INSERT LEFT
999
ESCUTCHEON LEFT
999
WASHER
999
REPAIR KIT , Replaced By: A1237200014
999
DOOR SHELL LEFT
999
BRACKET LEFT
999
BRACKET RIGHT
999
BRACKET (RETAINING FRAME),WITH FIXED WINDOW, LEFT, 100001
999
REPAIR KIT CONVERSION OF FRONT DOOR
999
PANELLING LEFT, STATE COLOR NUMBER WHEN ORDERING
999
PANELLING LEFT, STATE COLOR NUMBER WHEN ORDERING
999
PANELLING RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
GLASS PANE LEFT, 100001
999
SEAL , UP TO CHASSIS: 114.023 100072 114.072 100247 114.073 100029 FROM CHASSIS:SEE SA 56137
999
BRACKET , UP TO CHASSIS: 114.023 100072 114.072 100247 114.073 100029 FROM CHASSIS:SEE SA 56137
999
SEAL LEFT, 100001
999
GLASS PANE , UP TO CHASSIS: 114.023 100072 114.072 100247 114.073 100029 FROM CHASSIS:SEE SA 56137
999
REPAIR KIT , Replaced By: A1237200114
999
LOCK WITH INTERIOR LOCKING MECHANISM,LEFT
999
SEAL LEFT
999
GARNISH MOULDING LEFT
999
WELT LEFT
999
DOOR LOCKING DEVICE LEFT
999
LOCK WITH INTERIOR LOCKING MECHANISM,RIGHT
999
GUIDE RAIL , Replaced By: A0009852930, +002A1157250132, +002A1157250232, +004A1157250064
999
WINDOW RUN
999
LOCK LEFT AT CENTRAL SIDE DOOR,001274
999
WINDOW REGULATOR RAIL LEFT
999
PANELLING LEFT, STATE COLOR NUMBER WHEN ORDERING
999
VENTILATOR WINDOW LEFT, 099999
999
FASTENER LEFT, UP TO CHASSIS: 073 100000
999
LOCKING EYE LEFT
999
WEATHERSTRIP LEFT
999
VENTILATOR WINDOW LEFT, 099999
999
EDGE GUARD SECTION RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
CRANK OPERATED WINDOW LEFT
999
HINGE PIN
999
PULL ROD RIGHT
999
PLATE 1.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
999
WINDOW RUN , Replaced By: A1157250925
999
COVERING LEFT
999
SEALING RAIL , UP TO CHASSIS: 023 101005 072 103550 073 106463, Replaced By: A1157251165, +001A0009875460
999
GARNISH MOULDING LEFT
999
GLASS PANE , Replaced By: A1157201718
999
SEAL LEFT
999
GLASS PANE , Replaced By: A1157201818
999
SEALING RAIL , Replaced By: A1077250065
999
WINDOW REGULATOR LEFT
999
WINDOW RUN 2275 MM LONG
999
SEALING RAIL LEFT, FROM CHASSIS: 023 101006 072 103551 073 106464
999
SEALING RAIL RIGHT, FROM CHASSIS: 023 101006 073 106464
999
RAIL LEFT
999
SEAL LEFT
999
GARNISH MOULDING LEFT
999
DOOR HANDLE LESS KEY,LEFT, STATE LOCK NUMBER WHEN ORDERING
999
DOOR HANDLE LEFT,WORKSHOP VERSION,WITH KEY,ANY LOCK
999
DOOR HANDLE RIGHT,WORKSHOP VERSION,WITH KEY, ANY LOCK
999
PAD , Replaced By: A1157660205
999
PAD LEFT
999
PAD , Replaced By: A1157660305
999
SEAL INSIDE 4000 MM
999
BRACKET , Replaced By: A1147201114
999
SCREW
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
WASHER
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO BRACKET
999
SCREW DISTRIBUTOR TO CAB
999
NUT BALL PIVOT TO LEVER
999
SCREW SLOTTED GATE
999
SCREW WASHER TO STEERING COLUMN BRACKET, ONLY ON VEHICLES WITH MERCEDES-BENZ PLATFORN4 492544
999
TOOTHED WASHER CABLE TO FUSE BOX
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW , Replaced By: N007982003238
999
SHEET METAL SCREW , Replaced By: N007982003203
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SCREW FUEL CONSUMPTION DISPLAY
999
SCREW
999
SCREW ,K 062140, Replaced By: N007985006580
999
SCREW APPARATUS PLATE TO CAB,K 062140
999
SCREW
999
SCREW
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
