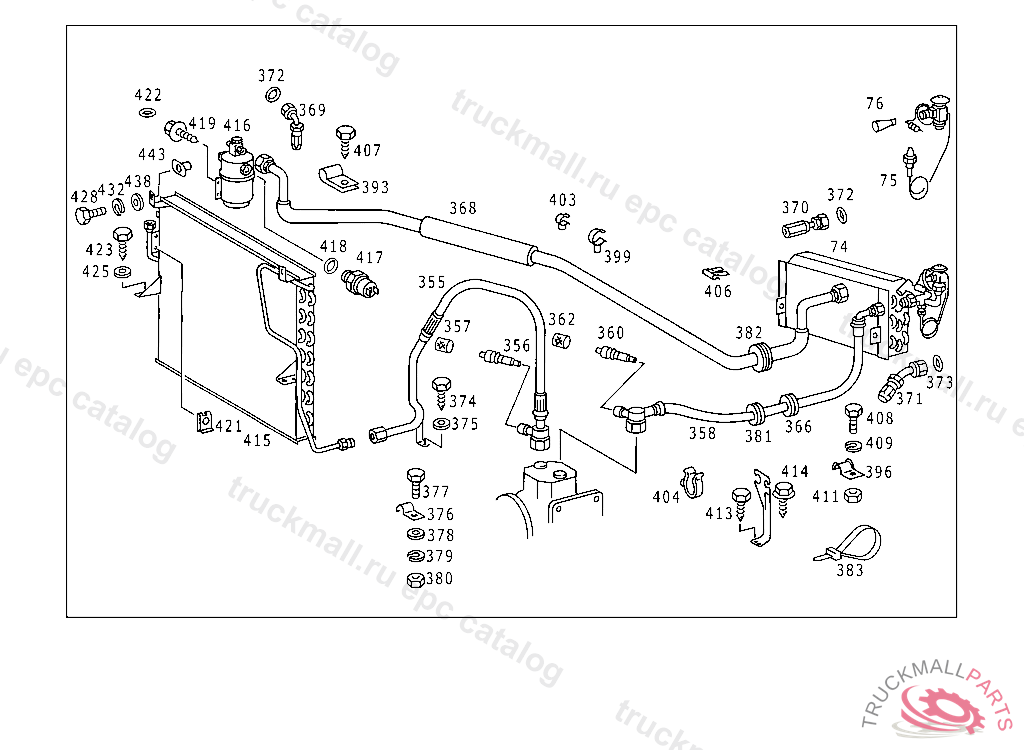

Поз.
Артикул
Описание
74
EVAPORATOR
75
VALVE
76
FILTER
355
PIPE LINE FROM COMPRESSOR TO CONDENSER
355
PIPE LINE FROM COMPRESSOR TO CONDENSER
356
VALVE INSERT , NOT USED
357
CAP (PARTS KIT),CAP
358
HOSE FROM COMPRESSOR TO EVAPORATOR
358
PIPE LINE FROM COMPRESSOR TO EVAPORATOR
360
VALVE INSERT , NOT USED
362
CAP (PARTS KIT),CAP
366
GROMMET BATTERY CASE
368
HOSE FROM COMPRESSOR TO EVAPORATOR 1500 MM, LESS HOSE CONNECTIONS
368
HOSE , Replaced By: A0189970582, +001A0019978368, +001A0019978468
368
HOSE , Replaced By: A0189975882, +001A0009970168, +001A0009975168
368
HOSE , Replaced By: A0009971752
368
HOSE FROM LIQUID TANK TO EXPANSION VALVE 430 MM, LESS HOSE CONNECTIONS
369
CONNECTOR 5/8IN.,90 DEGS.,NOMINAL WIDTH,8MM
370
CONNECTOR 5/8IN.,180 DEGS.,NOMINAL WIDTH,8MM
371
CONNECTOR 90 DEGREES 7/8" N W 13
372
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
373
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
374
SHEET METAL SCREW
375
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
376
CLAMP , 115.100,105,110,115,117 R.H.D.
377
SCREW COVER PLATE TO BRACKET
378
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
379
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
380
NUT BALL PIVOT TO LEVER
381
GROMMET
382
GROMMET EVAPORATOR-TO-COMPRESSOR HOSE
383
LOOM TIE TO MOUNT PLASTIC PIPING
383
LOOM TIE
383
LOOM TIE
383
LOOM TIE LINE MOUNTING 280 MM
393
CLAMP ELECTRIC CABLE MOUNTING
396
CLAMP TO MOUNT MAIN CABLE HARNESS
399
BRACKET LINE MOUNTING 11 MM
403
BRACKET LINE MOUNTING 11 MM
404
CLAMP HOSE TO HOSE 20 MM
406
CLIP
407
SHEET METAL SCREW BRACKET TO CAB FLOOR
408
SCREW COVER PLATE TO COVER PLATE M 6 X 12
409
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
411
NUT BALL PIVOT TO LEVER
413
SHEET METAL SCREW
414
COMBINATION BOLT BATTERY FRAME TO CONSOLE, TOP
415
CONDENSER
415
CONDENSERFA. BEHR
416
TANK
417
SWITCH LIQUID TANK, 023 060688 033 029143 123 043369 130 055527
418
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
419
COMBINATION BOLT
421
LOCK INSTRUMENT PANEL TO PANELLING
422
SEAL , ALSO APPLICABLE TO VERSION 55705/11-/62
423
SHEET METAL SCREW BRACKET TO WINDOW SILL
425
WASHER COMPRESSED AIR LINE TO BRACKET
428
SCREW COVER PLATE TO COVER PLATE M 6 X 12
432
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
438
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
443
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
999
HOSE CLAMP LINE MOUNTING
