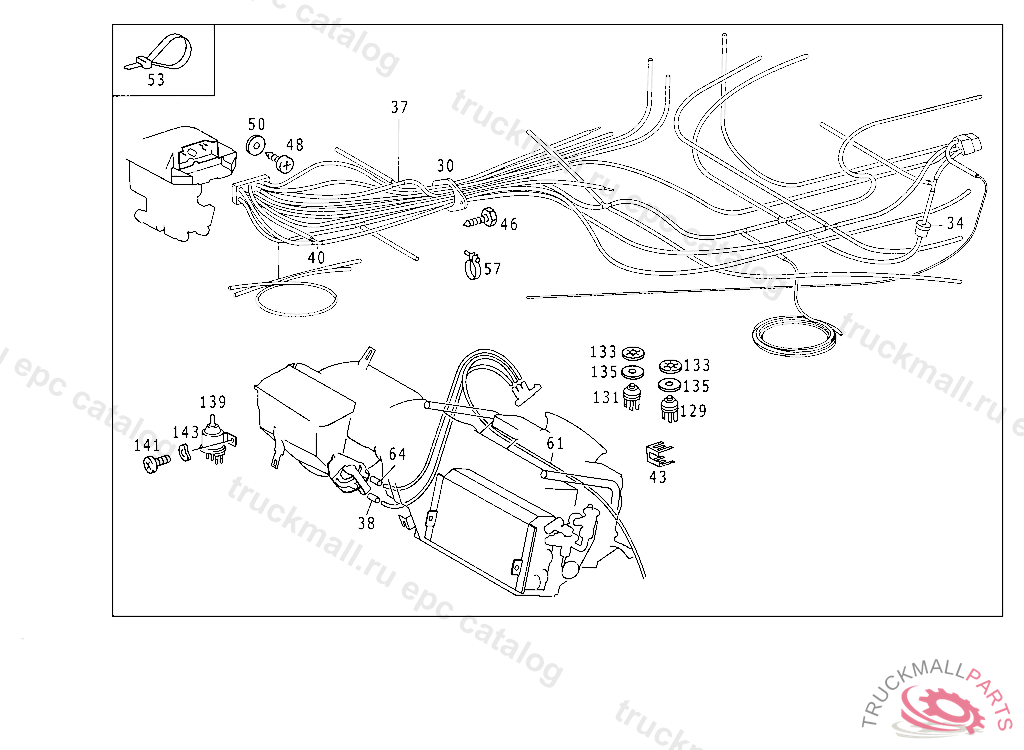

Поз.
Артикул
Описание
30
LINE VACUUM
34
VALVE
37
BRANCH-OFF FITTING
38
HOSE *** 30 MM
40
BRANCH-OFF FITTING REAR LID VACUUM ELEMENT 90 MM
43
CLIP
46
SHEET METAL SCREW
48
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
50
WASHER COVERING TO CYCLONE AIR TRAP
53
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
53
LOOM TIE
53
LOOM TIE TO MOUNT PLASTIC PIPING
53
LOOM TIE
57
CLAMP RISING PIPE,5 4734955 909351
61
HOSE , Replaced By: A0009976552
61
HOSE FROM VACUUM SWITCH TO CIRCULATING-AIRFLAP-ELEMENT Y-SHAPE DISTRIBUTOR 600 MM
64
HOSE50 MM, ORDER BY THE METER
64
HOSE *** 30 MM
129
SWITCH COLOR,GREEN
131
SWITCH COLOR,YELLOW
133
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
135
RUBBER RING
139
VALVE (3/2-WAY SOLENOID VALVE)
141
SCREW , Replaced By: N007985005157
143
SPRING WASHER ALTERNATOR CONNECTION D+
999
HOSE CLAMP LINE MOUNTING
