Mercedes A0015453826 - Контактный штифт

280 SEL 116.025 STANDARD

46 STEERING - 001 CRUISE CONTROL SWITCH (FOR TYPES 124,126,129,140,201 SEE STANDARD MICROFICHE)

Поз.
Артикул
Описание

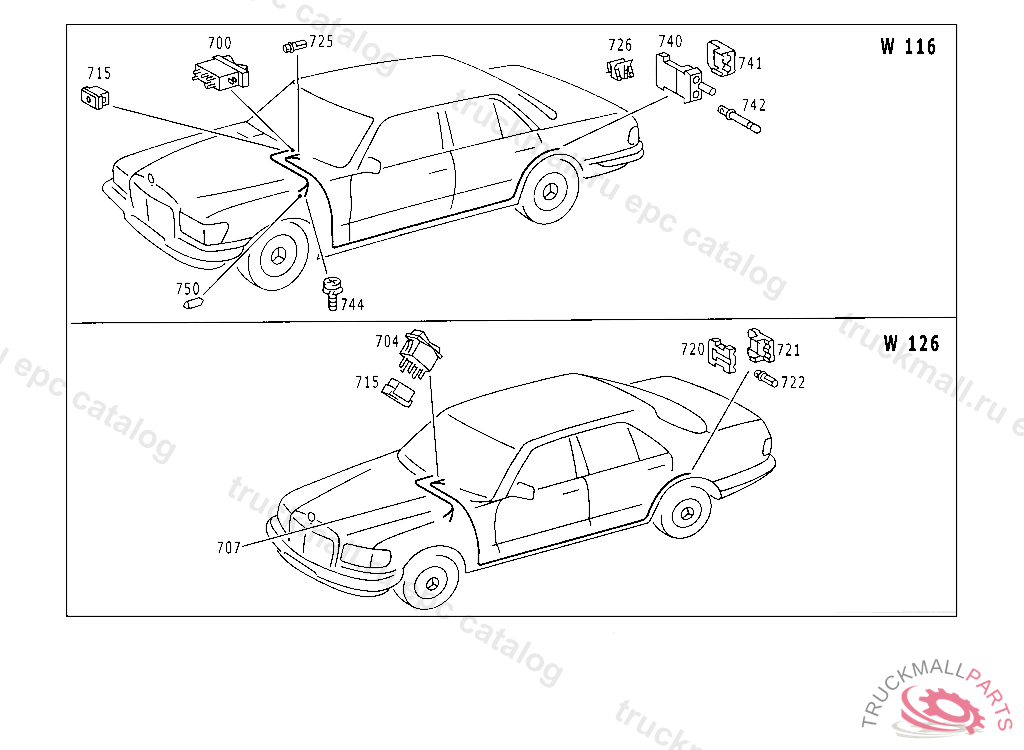

700
A0008206210
SWITCH SLIDING ROOF
704
A0008206310
SWITCH ELECTRIC SLIDING ROOF
707
A1268200815
ELECTRIC CABLE SLIDING ROOF SWITCH
715
A0008211226
CONNECTOR QUADRUPLE
720
A0085453728
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
721
A0085453828
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
722
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
725
A0015454426
ROUND PIN BUSHING4 MM2
726
A0029884878
CLIP PLUG TO REAR PILLAR
740
A0095454028
PLUG HOUSING
741
A0095454128
COVER
742
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
744
N914025004103
COMBINATION BOLT CABLE TO FUSE BOX
750
A0005458334
FUSEA16
999
A0009948945
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
999
A1247820046
STAY
