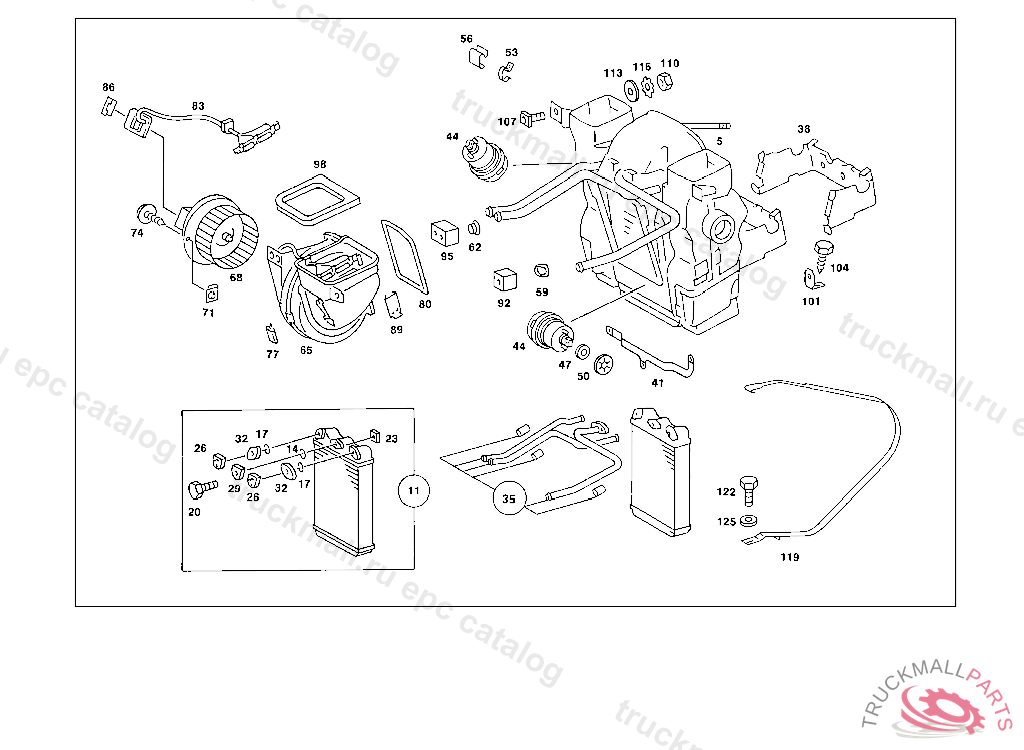

Поз.
Артикул
Описание
5
HEATER CASE
5
HEATER CASE , 023 132842 033 054320 123 116633 130 137940
5
HEATER CASE
5
HEATER CASE
5
HEATER CASE , UP TO CHASSIS: 123.083 UNTIL PRODUCTION STOP 123.086 007097 123.093 008963 123.183 015308 123.190 021904 123.193 001979
5
HEATER CASE
5
HEATER CASE
5
HEATER CASE
5
HEATER CASE , 020 059172 023 074440 026 036422 030 020509 033 033722 120 093776 123 054332 126 033048 130 068945, Replaced By: A1238302462, +001A1238300085
11
HEAT EXCHANGER
14
SEAL
17
SEAL
20
SCREW
23
NUT
26
GROMMET
29
GROMMET
32
FLANGE
35
PIPE LINE (PARTS KIT),HEAT EXCHANGER PIPES
38
BRACKET HEATER CASE
38
BRACKET HEATER CASE
41
LEVER LEGROOM FLAP LEVER
44
ELEMENT DEFROSTER NOZZLE
44
ELEMENT LEGROOM FLAP LEVER
47
RUBBER RING ELECTRIC CABLE TO CABLE DUCT
50
LOCK. CLIP LICENSE PLATE FLAP
53
SPRING
53
SPRING , Replaced By: A1238350034
56
SPRING , Replaced By: A0008352134
56
SPRING
59
SPACER
62
SPACER
65
BLOWER , NOT FOR USE WITH AIR CONDITIONER
65
BLOWER , NOT FOR USE WITH AIR CONDITIONER
65
BLOWER , NOT FOR USE WITH AIR CONDITIONER
68
ELECTRIC MOTOR , NOT FOR USE WITH AIR CONDITIONER
68
ELECTRIC MOTOR , NOT FOR USE WITH AIR CONDITIONER
71
LOCK
74
SHEET METAL SCREW BRACKET TO FIRE WALL
77
SPRING
77
SPRING , Replaced By: A0008352134
80
SEAL
83
RESISTOR , UP TO MODEL YEAR '81
83
RESISTOR , UP TO MODEL YEAR '81
86
CLIP , UP TO MODEL YEAR '81
89
SPRING
92
SEAL
95
SEAL
98
SEAL
101
BRACKET
104
SCREW BRACKET TO FIRE WALL
104
SHEET METAL SCREW , Replaced By: N000000000542
107
SCREW
110
NUT BALL PIVOT TO LEVER
113
WASHER COMPRESSED AIR LINE TO BRACKET
113
WASHER , Replaced By: N009021006208
116
TOOTHED WASHER MASKED STOP LAMP
119
BRACKET HEATER CASE WITH HEAT EXCHANGER, 023 193636 033 079829 123 207997 130 211344 223 005817
122
SCREW PIPE CLAMP
122
SCREW , Replaced By: N304017008021
125
WASHER , Replaced By: N000125008443
125
WASHER EXHAUST MUFFLER TO STRAP
