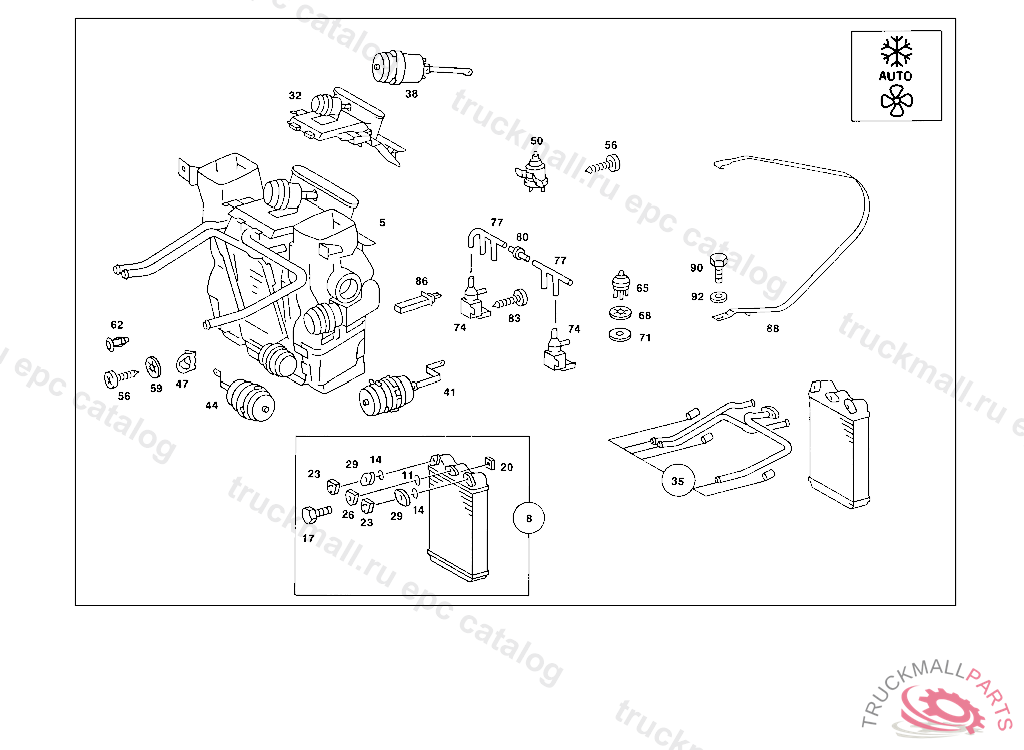

Поз.
Артикул
Описание
5
HEATER CASE
5
HEATER CASE
5
HEATER CASE , Replaced By: A1238303562
8
HEAT EXCHANGER
11
SEAL
14
SEAL
17
SCREW
20
NUT
23
GROMMET
26
GROMMET
29
FLANGE
32
PIPE SOCKET , FROM MODEL YEAR '81
32
PIPE SOCKET
35
PIPE LINE (PARTS KIT),HEAT EXCHANGER PIPES
38
ELEMENT CENTRAL NOZZLE
41
ELEMENT DEFROSTER NOZZLE FLAP CONTROL
41
ELEMENT DEFROSTER NOZZLE FLAP CONTROL, FROM MODEL YEAR '81
41
ELEMENT DEFROSTER NOZZLE FLAP CONTROL
44
ELEMENT LEGROOM FLAP LEVER, FROM MODEL YEAR '81
44
ELEMENT DEFROSTER NOZZLE
44
ELEMENT LEGROOM FLAP LEVER
47
BRACKET VACUUM ELEMENT TO LEGROOM FLAP, FROM MODEL YEAR '81
50
VALVE (3/2-WAY SOLENOID VALVE)
50
VALVE , Replaced By: A0015408697
56
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
59
LOCK. CLIP LICENSE PLATE FLAP
59
LOCK PLATE
62
RIVET
65
SWITCH COLOR,YELLOW
65
SWITCH COLOR,GREEN
65
SWITCH , Replaced By: A0008000573
65
SWITCH , Replaced By: A0008000673
68
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
71
RUBBER RING
74
CHANGE-OVER VALVE CHANGE-OVER VALVE
74
VALVE. CHANGE-OVER VALVE , Replaced By: A0008000478
77
DISTRIBUTOR CHANGE-OVER VALVE
80
DISTRIBUTOR CHANGE-OVER VALVE
83
SCREW
83
SHEET METAL SCREW , Replaced By: N000000002062
86
TEMPERATURE SENSOR , Replaced By: A1268301672
86
TEMPERATURE SENSOR , Replaced By: A1268301772
86
TEMPERATURE SENSOR (HEAT EXCHANGER),AT HEATER CASE
88
BRACKET HEATER CASE WITH HEAT EXCHANGER, 023 193636 033 079829 123 207997 130 211344 223 005817
90
SCREW PIPE CLAMP
90
SCREW , Replaced By: N304017008021
92
WASHER , Replaced By: N000125008443
92
WASHER EXHAUST MUFFLER TO STRAP
