Поз.
Артикул
Описание
5

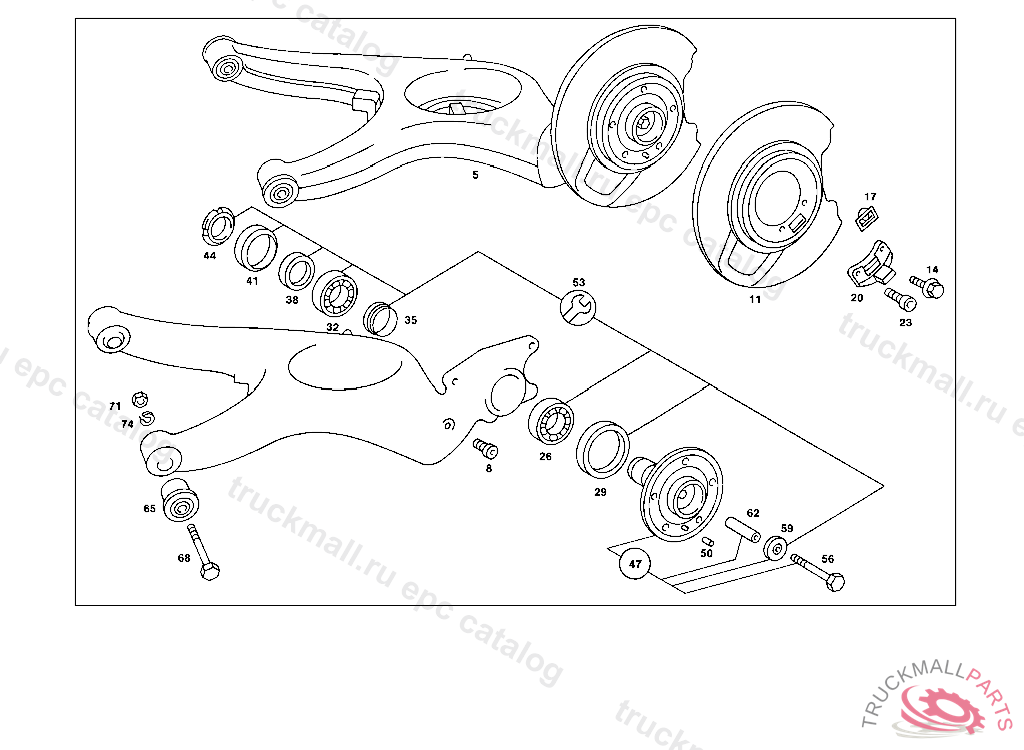

CONTROL ARM LEFT TRANSVERSE CONTROL ARM, WITH WHEEL BEARING AND COVER PLATE
5
CONTROL ARM RIGHT TRANSVERSE CONTROL ARM, WITH WHEEL BEARING AND COVER PLATE
8
PLUG
11
PROTECTIVE PLATE REAR WHEEL BRAKE,RIGHT
11
PROTECTIVE PLATE REAR WHEEL BRAKE,LEFT
14
COMBINATION BOLT
17
CUP COVER PLATE TO TRANSVERSE CONTROL ARM
20
BRAKE ANCHOR BRAKE SHOE
20
BRAKE ANCHOR BRAKE SHOE
20
BRAKE ANCHOR BRAKE SHOE
23
SCREW BRAKE SHOE SUPPORT TO TRANSVERSE CONTROL ARM
26
TAPERED ROLLER BEARING RING GEAR BEARING, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
29
SEAL RING OUTSIDE
29
SEAL RING OUTSIDE
32
TAPERED ROLLER BEARING INSIDE
35
SPACER BUSHING
38
THRUST WASHER
41
SEAL RING INSIDE
44
GROOVED NUT
47
FLANGE , Replaced By: A1263501646
47
FLANGE , Replaced By: A1263501546
47
FLANGE PARTS KIT,LEFT
47
FLANGE PARTS KIT,RIGHT
50
DOWEL PIN
53
REPAIR KIT REAR WHEEL BEARING
56
SCREW AXLE SHAFT TO REAR AXLE SHAFT FLANGE M 8X90, 083 004285 086 003621 093 004152 183 007332 190 011046
56
SCREW AXLE SHAFT TO REAR AXLE SHAFT FLANGE M 8 X 85
59
WASHER AXLE SHAFT TO REAR AXLE SHAFT FLANGE
62
SPACER TUBE AIR RESERVOIR TO FRAME, TO BE ADAPTED DURING ASSEMBLY
62
SPACER TUBE AXLE SHAFT TO REAR AXLE SHAFT FLANGE 67,3 MM
65
RUBBER MOUNTING TRANSVERSE CONTROL ARM TO SUBFRAME
65
RUBBER MOUNTING REPAIR SIZE, WITH ECCENTRIC INTERIOR BUSHING
68
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
68
SCREW , Replaced By: N000960016250
71
NUT
74
LOCK WASHERROCKINGER TYP 59 G140,59 G150
