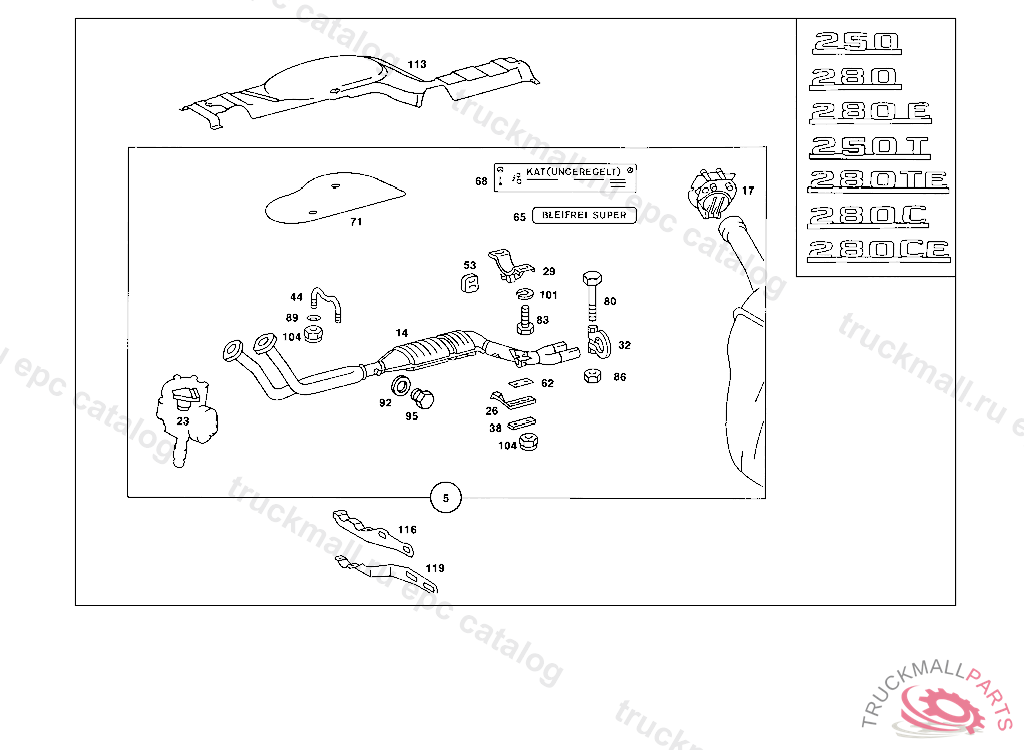

Поз.
Артикул
Описание
5
EXHAUST MUFFLER WITH PIPE RANGE OF DELIVERY FOR SUBSEQT. INSTALLATION OF CATALYST LESS OXYGEN SENSOR
14
EXHAUST PIPE FRONT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
17
FUNNEL , Replaced By: A1694700029
17
FILLER NECK
26
BRACKET
29
BRACKET
32
CLAMP , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
32
CLAMP , Replaced By: A0004900341
38
BASE PLATE
44
CLAMPING BRACKET EXHAUST PIPE TO BRACKET
53
DAMPING PAD , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
62
INSULATION
65
GUIDE SIGN
68
GUIDE SIGN
71
SCREENING MAIN FLOOR,RIGHT, FROM CHASSIS 123.033 041774
80
SCREW , Replaced By: N304017008043
80
SCREW VALVE TO BRACKET M 8X55
83
SCREW PIPE CLAMP
83
SCREW , Replaced By: N304017008021
86
NUT
89
DISC SPRING EXHAUST PIPE TO BRACKET
92
SEAL RING VALVE TO VALVE,K 025179
95
SCREW PLUG
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
104
NUT POWER CYLINDER TO BRACKET
104
NUT , Replaced By: A0009903250
113
SCREENING
116
BRACKET USED WITH FOUR-SPEED TRANSMISSION
116
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION
119
BRACKET
119
BRACKET
