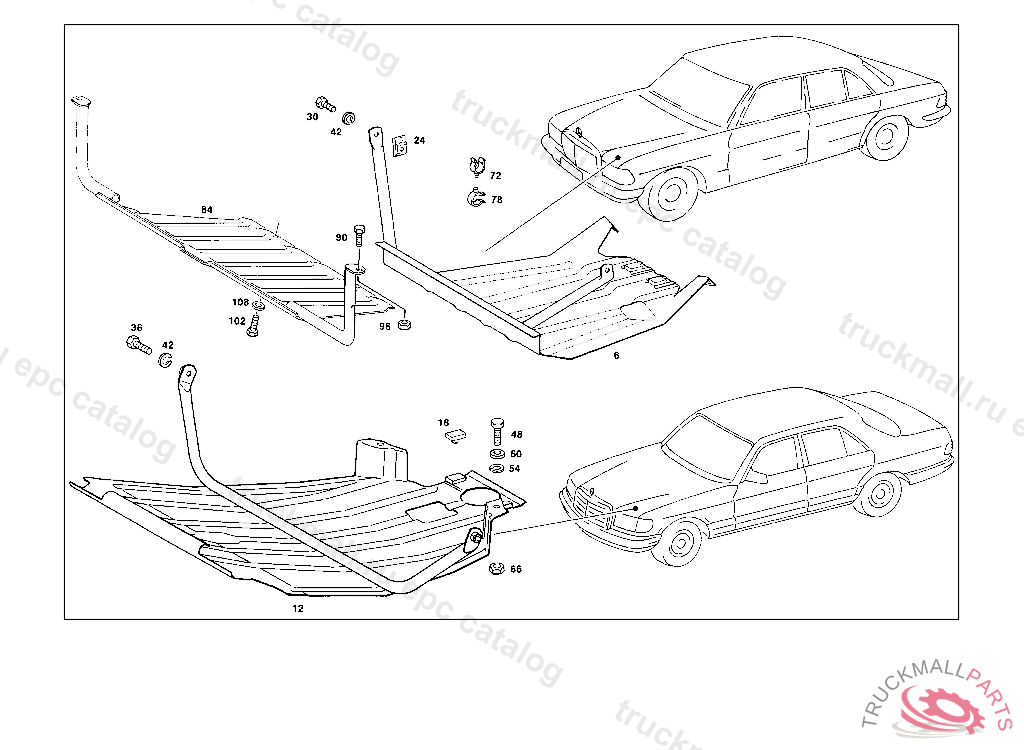

Поз.
Артикул
Описание
6
PROTECTIVE PLATE OIL PAN
12
PROTECTIVE PLATE OIL PAN
18
RUBBER BUFFER
24
NUT RETAINER PROTECTIVE PLATE TO SIDE MEMBER
30
SCREW CLAMP TO BRACKET AND TO PIPE
36
SCREW , Replaced By: N304017008021
36
SCREW PIPE CLAMP
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
48
SCREW , Replaced By: N304017008021
48
SCREW PIPE CLAMP
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
WASHER EXHAUST MUFFLER TO STRAP
60
WASHER , Replaced By: N000125008443
66
NUT , Replaced By: N913004008001
66
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
66
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
72
CLAMP HOSE TO HOSE 20 MM
78
CLAMP , Replaced By: A0005465143
84
PROTECTIVE PLATE RADIATOR, TO BE ADAPTED DURING ASSEMBLY
90
SCREW PIPE CLAMP
90
SCREW , Replaced By: N304017008021
96
NUT , Replaced By: N913004008001
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
102
SCREW , Replaced By: N304017008021
102
SCREW PIPE CLAMP
108
WASHER BRACKET TO LEFT SIDE MEMBER
108
WASHER , Replaced By: N009021008213
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
GROMMET
