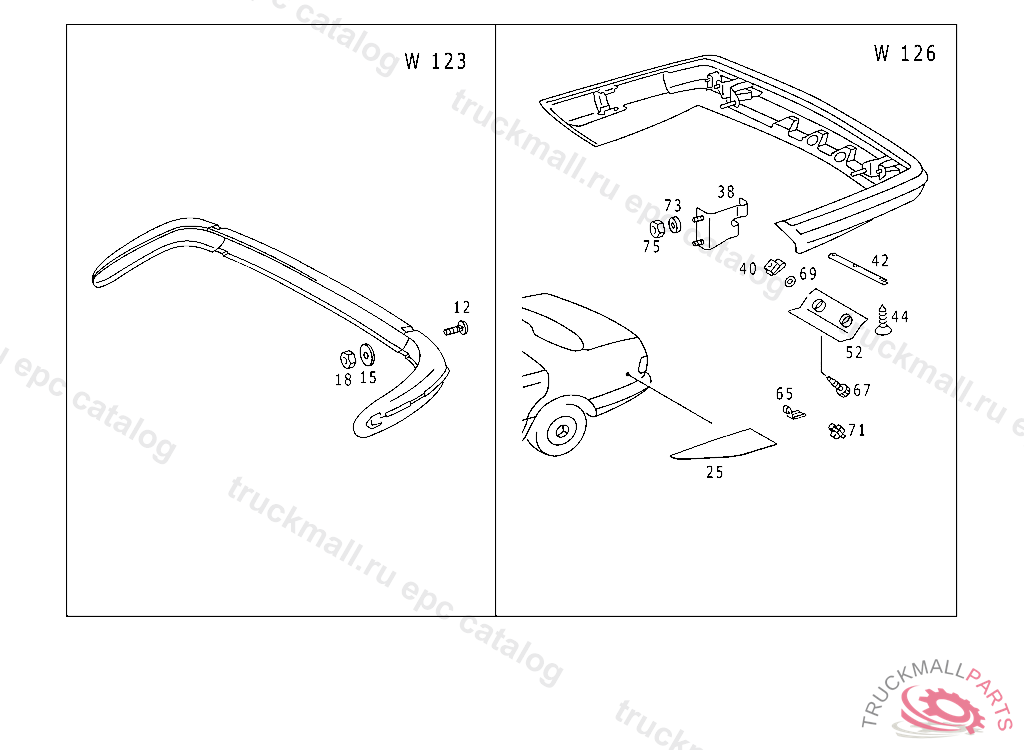

Поз.
Артикул
Описание
12
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
12
SCREW BRACKET TO EXHAUST PIPE BRACKET
15
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
18
NUT
18
NUT
18
NUT , Replaced By: N304032008006
25
COVERING LEFT
25
COVERING RIGHT
38
BRACKET USED WITH HITCHING MECHANISM,RIGHT
38
BRACKET RIGHT,REAR BUMPER TO CROSS MEMBER
38
BRACKET USED WITH HITCHING MECHANISM,LEFT
38
BRACKET LEFT,REAR BUMPER TO CROSS MEMBER
40
NUT RETAINER BUMPER PANELLING
42
REINFORCEMENT BUMPER PANELLING, 126.021 007940 126.022,023 028639 126.032,033 012541 126.036,037 008661
44
SHEET METAL SCREW REINFORCEMENT TO BUMPER COVERING, 126.021 007940 126.022,023 028639 126.032,033 012541 126.036,037 008661
52
COVERING BUMPER PANELLING,CENTRAL
52
COVERING BUMPER PANELLING,CENTRAL
65
SPRING , 126.021 007941 126.022,023 028640 126.032,033 012542 126.036,037 008662 UP TO CHASSIS126.021,022,023,032,033,036,037 A 128992 126.043,044 A 128913
67
SCREW
69
INSULATING PLATE
71
COVER
73
WASHER SUPPORT TO SIDE MEMBER,K 186867
75
NUT BRACKET TO SUPPORT AND TO END PIECE
