Mercedes A2109900020 - БОЛТ М8

200 124.020 200-300 9/89-10/92, 200D-300D 9/89-7/93

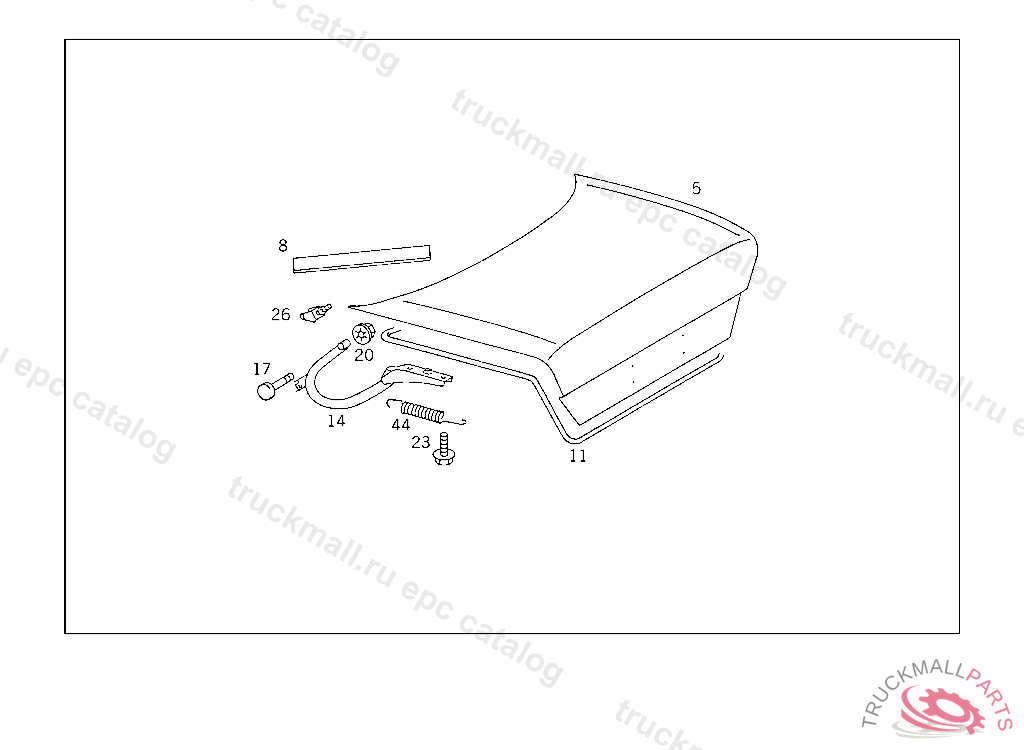

75 REAR LID - 015 REAR LID

Поз.
Артикул
Описание
5
A1247502275
REAR LID STEEL,LESS HOLES FOR TYPE DESIGNATION
8
A1247570997
PAD BETWEEN STIFFENING AND PANELLING 450 MM
8
A1407570097
PAD BETWEEN STIFFENING AND PANELLING 207 MM, TO BE ADAPTED DURING ASSEMBLY
11
A1247500398
SEAL REAR LID
14
A1247500828
HINGE LEVER RIGHT
14
A1247500728
HINGE LEVER LEFT
17
A1249900220
SCREW , Replaced By: A2109900020
17
A2109900020
SCREW HINGE LEVER TO MOUNTING
20
N913013008001
NUT BRACKET MOUNTING
23
N910105006002
HEXAGON HEAD BOLT
26
A2027500126
STOP HINGE LEVER BEARING
44
A1247570629
SPRING REAR LID
