Mercedes A1235040412 - Втулка

230 E JAPAN 124.023 FROM 09/89

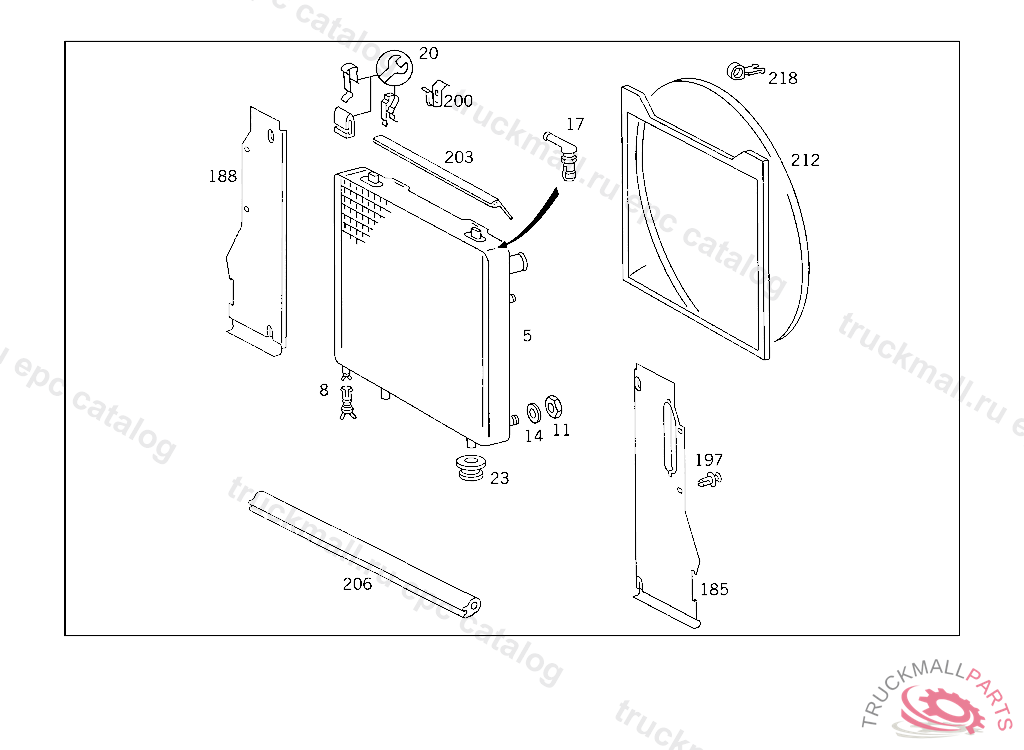

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A1245008703
RADIATOR ONLY FOR USE WITH AIR CONDITIONER
5
A1245000203
RADIATOR , Replaced By: A1245008703
8
A2015000085
SCREW , Replaced By: A0005000185
8
A0005000185
SCREW WATER DRAIN
11
A0039901651
NUT RADIATOR MOUNTING
14
A0039907740
WASHER RADIATOR MOUNTING
20
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
23
A1235040412
RUBBER MOUNTING RADIATOR TO SUPPORT
185
A1245053788
COVERING LATERAL LEFT, ONLY USED WITH AIR CONDITIONER, TO BE ADAPTED DURING ASSEMBLY
185
A1245052288
COVERING , Replaced By: A1245053788
188
A1245052688
COVERING LATERAL RIGHT, ONLY USED WITH AIR CONDITIONER
197
A0009904492
RIVET COVERING
200
A1245040046
CLIP COVERING
203
A2015051786
BOOT RADIATOR BLOCK TO FRAME, ORDER BY THE METER
212
A1245050155
FAN SHROUD ONLY FOR USE WITH AIR CONDITIONER
999
A0005010176
WASHER WATER DRAIN
