Mercedes A0001585303 - КАТУШКА-ЗАЖИГАНИЯ-ZUENDSPULE

230 E JAPAN 124.023 FROM 09/89

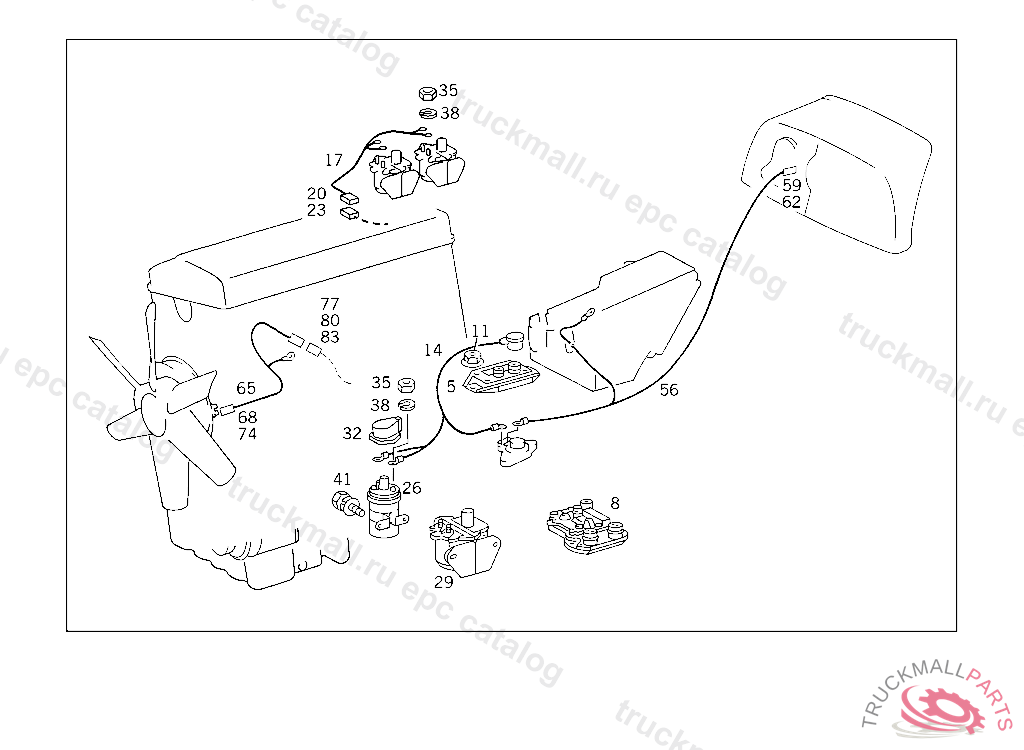

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 255 IGNITION SYSTEM AND CABLE HARNESS FOR TACHOMETER AND FAN

Поз.
Артикул
Описание
5
A0085459432
IGNITION CONTROL BOX
11
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
14
A1245404510
CABLE HARNESS TRANSISTORIZED IGNITION
26
A0001585303
IGNITION COIL
26
A0001586203
IGNITION COIL
32
A0001582285
SUPPRESSOR HOUSING IGNITION COIL
35
N000934005008
NUT TACHOGRAPH TO BRACKET
35
N000934006007
NUT BALL PIVOT TO LEVER
38
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
38
N912004005100
LOCK WASHER T-FITTING TO BRACKET
41
N914001006010
COMBINATION BOLT VACUUM LINE TO FRONT STIFFENING, FROM CHASSIS:107.025 000007 107.026 001620
56
A1245400434
CABLE HARNESS TACHOMETER
59
A0125458328
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
62
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
65
A1245402809
CABLE HARNESS FAN
68
A0125450428
PIN BUSHING HOUSING BIPOLAR
74
A0015454426
ROUND PIN BUSHING4 MM2
77
A0115451028
PLUG HOUSING MAIN CABLE HARNESS
80
A0095451428
COVERTO 011 545 10 28
83
A0115451228
PLUG PIN
