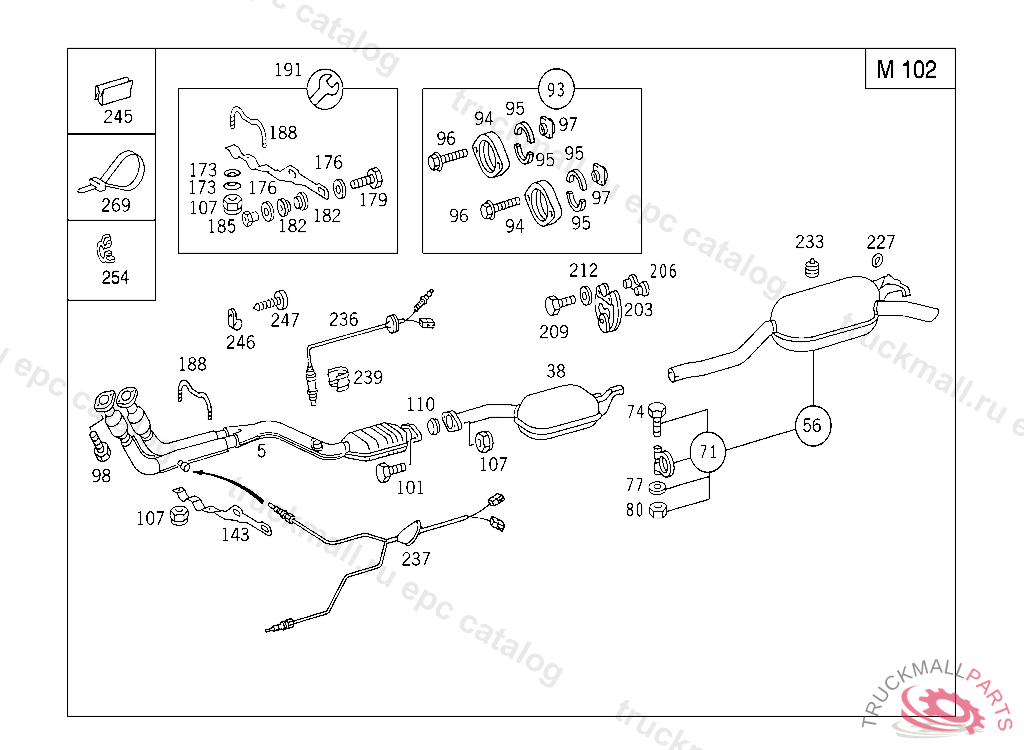

Поз.
Артикул
Описание
71
CLAMP
74
SCREW VALVE TO BRACKET M 8X55
74
SCREW , Replaced By: N304017008043
77
WASHER BRACKET TO CROSS MEMBER
80
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
93
FLANGE PARTS KIT, REPAIR SIZE
94
FLANGE
95
THRUST RING
96
SCREW LOCKING BOLT M8X65,V 208920
97
NUT
98
SCREW LOCKING BOLT M8X65,V 208920
101
SCREW VALVE TO BRACKET M 8X55
101
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
101
SCREW , Replaced By: N304017008053
107
NUT POWER CYLINDER TO BRACKET
107
NUT , Replaced By: A0009903250
110
SEAL RING , Replaced By: A2024920381
110
SEAL RING
143
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION
173
DISC SPRING FRONT EXHAUST PIPE TO BRACKET, FROM IDENT NO. 941506 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINEP 000001P 050586
176
WASHER HIGH PRESSURE HOSE TO BRACKET
179
SCREW PIPE CLAMP
179
SCREW , Replaced By: N304017008021
182
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
185
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
188
CLAMPING BRACKET FRONT EXHAUST PIPE SUSPENSION, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
191
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
203
SUSPENSION RING MAIN MUFFLER SUSPENSION
206
CLAMPING PIECE MAIN MUFFLER SUSPENSION
209
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
209
SCREW , Replaced By: N304017008016
212
WASHER , Replaced By: N000125008443
227
DAMPING PAD EXHAUST PIPE SUSPENSION
233
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
236
SENDER UNIT OXYGEN SENSOR, ONLY FOR AUSTRALIA CODE 625
239
PROTECTIVE PLATE
245
CLIP PLUG MOUNTING
246
CLAMP CABLE HARNESS TO TAIL CENTRAL PIECE
247
SHEET METAL SCREW , Replaced By: N000000000453
254
CLAMP BOWDEN CABLE TO CAB
254
CLAMP , Replaced By: A0009956044
254
CLAMP ELECTRIC CABLE TO DOOR INTERIOR PLATE
269
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
