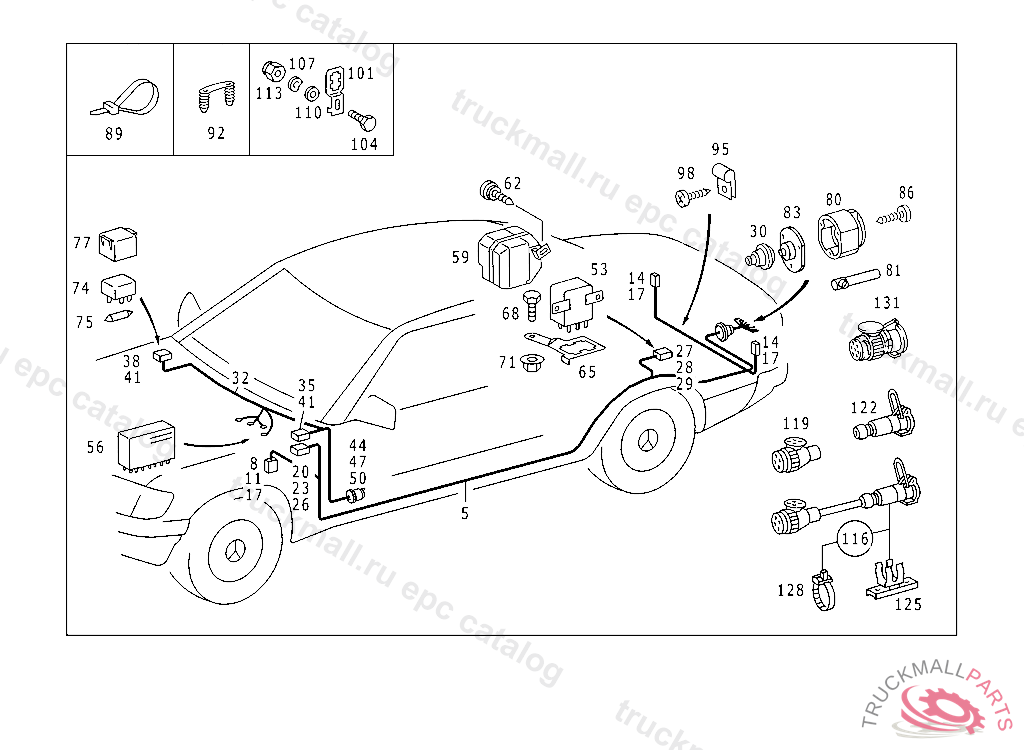

Поз.
Артикул
Описание
5
CABLE HARNESS
5
CABLE HARNESS
8
PLUG ADAPTERTO 014 545 04 28
11
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
14
PLUG ADAPTER FROM CABLE HARNESS PLUG-CONNECTION TO TAIL LAMP PLUG-CONNECTION
17
PIN BUSHINGTO 000 821 19 26
20
PLUG HOUSING
23
COVER
26
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
27
PIN BUSHING HOUSING SENSOR
28
COVERTO 009 545 16 28
29
ROUND PIN BUSHING2.5 MM2
30
BOOT
32
ELECTRIC CABLE FEED-IN
32
ELECTRIC CABLE FEED-IN
35
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
38
PIN BUSHING HOUSING FUSE BOX
41
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
44
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
47
COVERTO 011 545 10 28
50
ROUND PIN BUSHING4 MM2
53
BLINKER UNIT TRAILER BLINKER CONTROL,F 018413
56
RELAY BLINKER/HAZARD-WARNG.-L.SENDER UNITS, HEATED REAR PANE,WIPER,TRAILER COUPL.
59
CAP BLINKER SENDER UNIT
62
SHEET METAL SCREW , Replaced By: N000000002062
62
SCREW
62
WASHER BRACKET TO SUPPORT
65
BRACKET ADDITIONAL FUSE BOX
68
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
71
NUT BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
74
FUSE BOX
75
FUSE25 A
77
COVERING FUSE BOX
80
PLUG SOCKET 13-POLE
81
CONTACT BUSHING LONG VERSION, SCREW-TYPE
81
CONTACT BUSHING SHORT VERSION, SCREWABLE
81
CONTACT BUSHING CAPABLE OF BEING SOLDERED
83
GASKET. GROMMET
86
SHEET METAL SCREW PLUG SOCKET TO BRACKET
89
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
92
CLIP MAIN CABLE HARNESS TO FRONT FLOOR
95
CLAMP CABLE HARNESS TO TAIL CENTRAL PIECE
98
SHEET METAL SCREW MODULE TO HOUSING
101
BRACKET
104
SCREW ELECTRIC CABLE TO PIPE BEND
104
SCREW CONTROL UNIT TO CAB
107
SPRING WASHER ALTERNATOR CONNECTION D+
110
WASHER REFLECTOR TO BRACKET
113
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
116
ELECTRIC CABLE ADAPTER CABLE
119
PLUG 13-POLE
122
PLUG SOCKET 7-POLE
125
BRACKET
128
LOOM TIE TO MOUNT PLASTIC PIPING
131
CONNECTOR ADAPTER FROM 13-PIN TO 7-PIN
