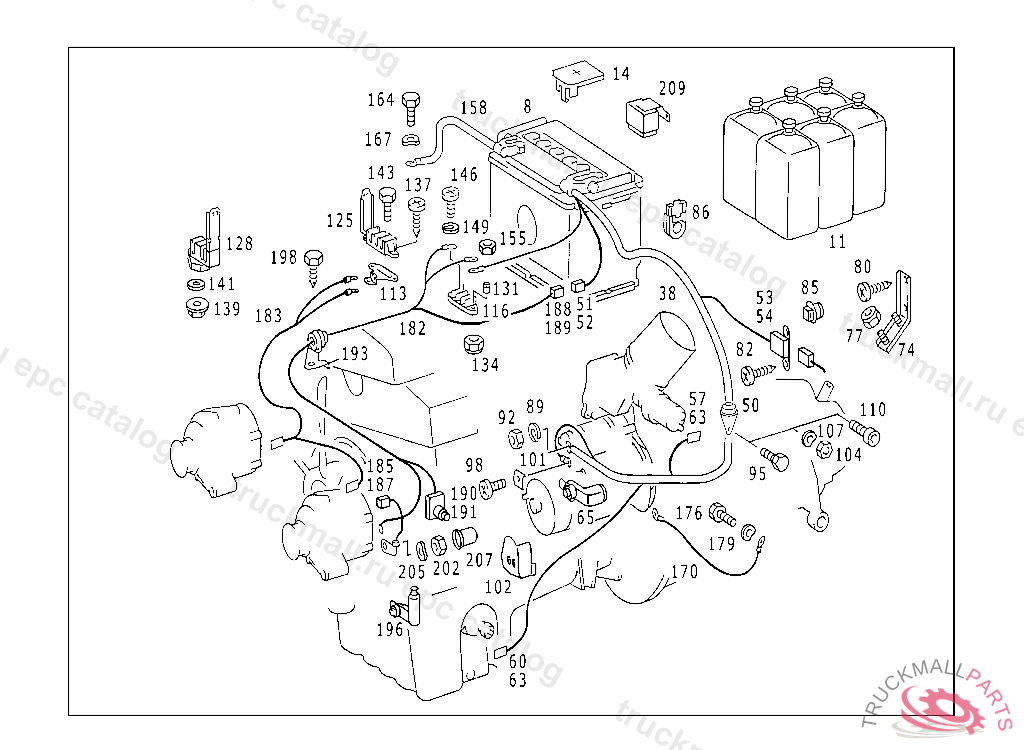

Поз.
Артикул
Описание
8
BATTERY PARTS KIT
8
BATTERY FILLED 12V/62 AH
8
BATTERY100 AH
8
BATTERY PARTS KIT,5 338284
11
BATTERY ACID BOTTLE SET ,5 338284
11
BATTERY ACID BOTTLE SET
14
BOOT POS. POLE
38
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
51
PLUG HOUSING
52
PLUG PIN0.5-2.0 MM2
53
PLUG HOUSING INBOARD CABLE HARNESS PLUG-CONNECTION
54
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
60
PLUG. PIN BUSHING HOUSING NTC FEELER
60
GROMMETTO 014 545 07 28
63
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
65
GROMMET CABLE TO STARTING MOTOR
82
TAPPING SCREW BRACKET TO CAB FLOOR
82
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
89
SPRING WASHER , Replaced By: N000137008212
89
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
89
SPRING WASHER LICENSE PLATE TO BRACKET
92
NUT BALL PIVOT TO LEVER
92
NUT
116
SOCKET-TERMINAL STRIP SPRING DOME
131
LOCK FRONT PANEL,LATERAL RIGHT,9/87
146
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
146
SCREW , Replaced By: N007985004107
149
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
149
LOCK WASHER T-FITTING TO BRACKET
155
NUT BALL PIVOT TO LEVER
158
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
164
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
167
SPRING WASHER , Replaced By: N000137008212
170
NEG. CABLE , Replaced By: A9015400741
170
GROUND STRAP FROM ENGINE TO FRAME
176
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
179
SPRING WASHER , Replaced By: N000137008212
179
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
182
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR
182
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR 120 A
188
PIN BUSHING HOUSING. PLUG INCREASE IN SHIFT POINT, AUTOMATIC TRANSMISSION
189
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
190
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
191
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
198
SHEET METAL SCREW BRACKET TO CAB FLOOR
202
NUT TACHOGRAPH TO BRACKET
202
NUT
205
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
205
LOCK WASHER T-FITTING TO BRACKET
207
PROTECTION CAP , Replaced By: A0008310929
207
CAP SCREW HEAD COVERING
209
RELAY CUT-OFF RELAY BATTERY
