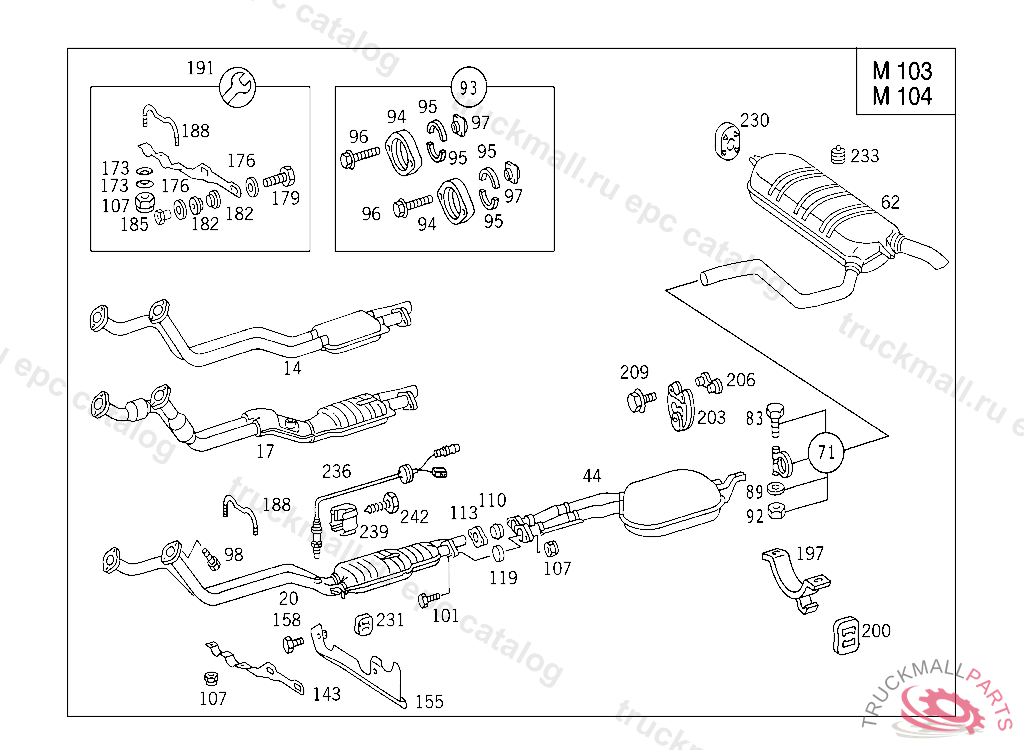

Поз.
Артикул
Описание
62
MUFFLER REAR
62
EXHAUST PIPE , Replaced By: A1244918201
71
CLAMP , Replaced By: A0004900741
71
CLAMP
83
SCREW VALVE TO BRACKET M 8X55
89
WASHER BRACKET TO CROSS MEMBER
92
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
93
FLANGE PARTS KIT, REPAIR SIZE
94
FLANGE
95
THRUST RING
96
SCREW LOCKING BOLT M8X65,V 208920
97
NUT
98
BOLT W FLANGE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
98
SCREW 3/2-WAY VALVE TO BRACKET
101
SCREW VALVE TO BRACKET M 8X55
107
NUT , Replaced By: A0009903250
107
NUT POWER CYLINDER TO BRACKET
110
SEAL RING
110
SEAL RING , Replaced By: A2024920381
143
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION
143
BRACKET USED WITH FIVE-SPEED TRANSMISSION
143
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
173
DISC SPRING FRONT EXHAUST PIPE TO BRACKET, FROM IDENT NO. 941506 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINEP 000001P 050586
176
WASHER HIGH PRESSURE HOSE TO BRACKET
179
SCREW PIPE CLAMP
179
SCREW , Replaced By: N304017008021
182
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
185
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
188
CLAMPING BRACKET FRONT EXHAUST PIPE TO BRACKET
191
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION, INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
203
SUSPENSION RING MAIN MUFFLER SUSPENSION
206
CLAMPING PIECE MAIN MUFFLER SUSPENSION
209
COMBINATION BOLT BRACKET TO EXHAUST MUFFLER
230
DAMPING PAD , Replaced By: A1244920044
230
SUSPENSION RING REAR MUFFLER SUSPENSION
233
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1119871540
236
SENDER UNIT
239
PROTECTIVE PLATE
