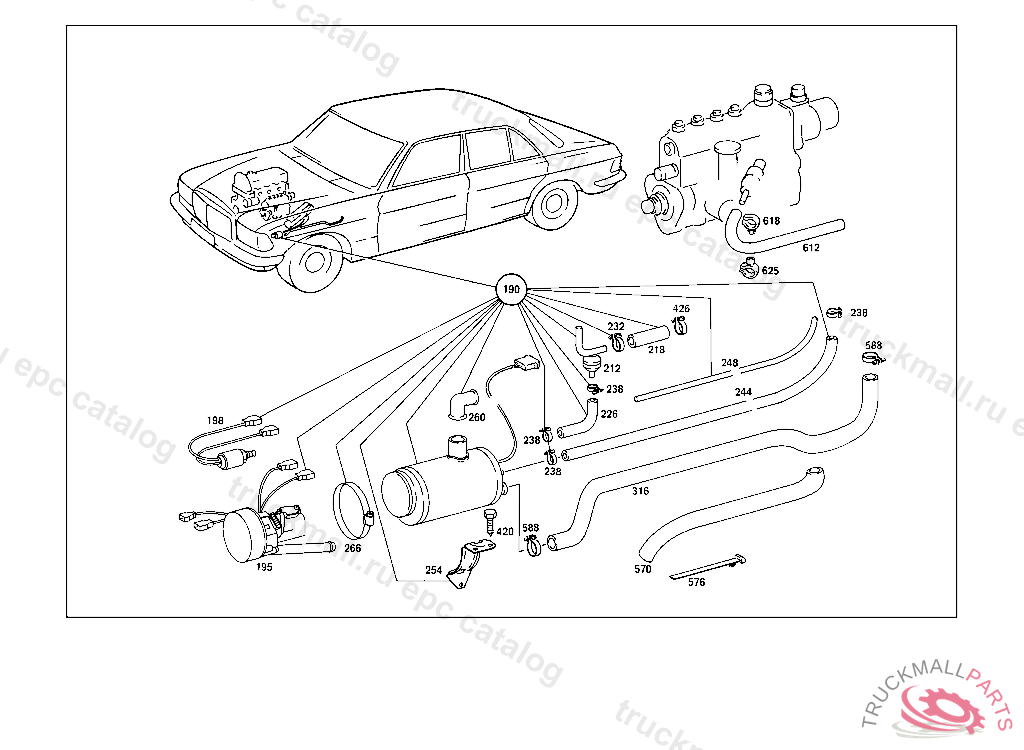

Поз.
Артикул
Описание
190
CONTROL UNIT (SUPPLY UNIT)
195
BLOWER
198
VALVE
198
VALVE
198
VALVE , Replaced By: A0004761232
212
CONNECTOR
218
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
226
HOSE4.5X10X900MM
226
HOSE , Replaced By: A2014761126
226
HOSE , Replaced By: A1104760826
232
HOSE CLAMP HOSE FASTENING 9/13MM
232
CLAMP
238
CLAMP RISING PIPE,5 4734955 909351
244
HOSE4.5X10X900MM
244
HOSE , Replaced By: A2014761126
244
HOSE , Replaced By: A1104760826
248
LINE , Replaced By: A0019978552
248
HOSE770 MM, ORDER BY THE METER
254
BRACKET CONTROL UNIT
260
BOOT
266
CLAMP
316
HOSE , 123.102,103,123,125,412537 123.105,130,132,309615 123.120 359321
420
SHEET METAL SCREW
426
CLAMP
570
INSULATING HOSE16X1 MM, ORDER BY THE METER
576
LOOM TIE
588
CLAMP , Replaced By: A0059970190
588
HOSE CLAMP LINE MOUNTING
612
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
618
CLAMP
625
CLAMP , Replaced By: A0004760436
625
BRACKET LINE MOUNTING 11 MM
999
CONTROL UNIT (SUPPLY UNIT), NO LONGER AVAILABLE
999
RECIRCULATING PUMP , Replaced By: A0005062299
999
BRACKET , NOT USED
999
PUMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005062199
999
SEAL
999
SEAL BURNER ELEMENT
999
CLAMP ELECTRIC CABLE TO BRAKE HOSE
999
CONTROL UNIT , NOT USED
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
GROMMET
999
GROMMET
999
GROMMET
999
SPACER TUBE , Replaced By: A6170720151
999
CLAMP , Replaced By: A0004760436
999
CLAMP HOSE TO HOSE 20 MM
999
HOSE8X12 MM, ORDER BY THE METER
999
OPERATING INSTRUCTIONS , NO LONGER AVAILABLE
999
LOOM TIE , Replaced By: A1169970890
999
LOOM TIE , Replaced By: A0019974190
999
LOOM TIE
999
HOSE ,123.183 F012079
999
HEATING UNIT , Replaced By: A1235003298
999
HEATING UNIT , Replaced By: A1235003298
999
HEATING UNIT , Replaced By: A1235003298
999
HEATING UNIT RANGE OF DELIVERY TO 123 500 32 98, 123.102,103,125 257644 123.105,132 242388 123.120 263417 123.123 255591 123.130 240997 123.183 016622 123.190 022642 123.193 000001 IN CASE OF SUBSEQUENT INSTALLATION,APPLICABLE AS FROM BEGINNING OF PRODUCTION
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
HOSE
999
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
CLAMP , Replaced By: A0005465143
999
SHEET METAL SCREW VALVE TO WINDOW SILL
999
BULB , ON CAB 344
999
COMBINATION BOLT INSTRUMENT PANEL TO COWL,BOTTOM
999
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059972790
999
CLAMP
999
CLAMP CHECK VALVE,K 169122
