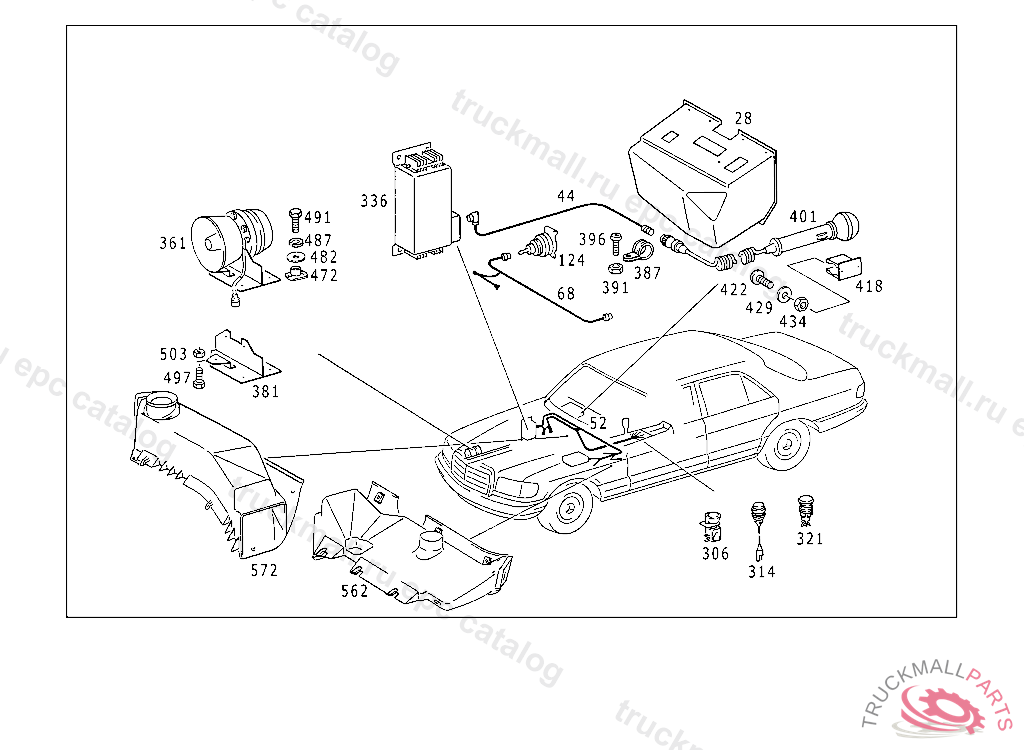

Поз.
Артикул
Описание
28
GLOVE COMPARTMENT , TO BE ADAPTED DURING ASSEMBLY
44
ELECTRIC CABLE FROM AMPLIFIER TO MICROPHONE
52
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM MAIN CABLE HARNESS
68
ELECTRIC CABLE AMPLIFIER-TO-PLUG-SOCKET CABLE IN INSTRUMENT PANEL
124
PLUG SOCKET AT COVERING
306
SWITCH IN TRAY
314
SWITCH INSTRUMENT PANEL
321
SIGNAL LAMP IN TRAY
336
AMPLIFIER60 W
336
AMPLIFIER60 W
336
AMPLIFIER60 W, FROM CHASSIS 123.A 182586 F 027780 126.A 087564
336
AMPLIFIER60 W
336
AMPLIFIER , UP TO CHASSIS123.A 182585 F 027779 126.A 087563 CONVERT AMPLIFIER FROM POS. TO NEG., Replaced By: A0018202089, +001A0028207210, +001A0028207015
361
LOUDSPEAKER
361
LOUDSPEAKER
381
BRACKET
387
CLAMP TUBE TO REAR PILLAR
391
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
396
SCREW ELECTRIC CABLE TO FUSE BOX
401
MICROPHONE
418
BRACKET MICROPHONE
418
BRACKET MICROPHONE
422
SCREW , Replaced By: N007985004107
429
WASHER , Replaced By: N009021004207
429
WASHER COVERING TO CYCLONE AIR TRAP
434
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
472
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
482
WASHER COMPRESSED AIR LINE TO BRACKET
487
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
491
SCREW COVER PLATE TO BRACKET
497
SCREW CAB FLOOR COVERING M 6X25
503
NUT OIL TANK TO BRACKET
562
AIR DUCT BETWEN HEATER CASE AND LEFT FRONT DOOR
572
AIR DUCT BETWEN HEATER CASE AND RIGHT FRONT DOOR
