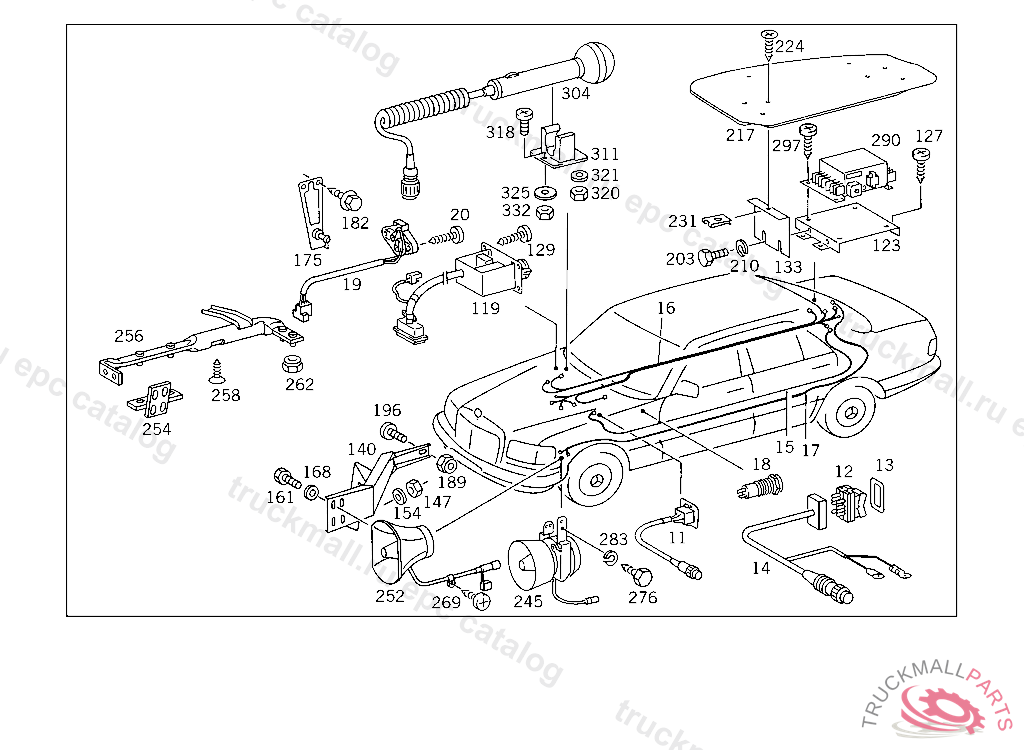

Поз.
Артикул
Описание
11
SWITCH SWITCH TO COVERING
12
SWITCH SWITCH TO COVERING,5/93
13
GUIDE SIGN SWITCH,5/93
14
ELECTRIC CABLE SWITCH,5/93
15
ELECTRIC CABLE SWITCH TO APPARATUS PLATE
16
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM
16
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM
16
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM
16
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM
16
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM
16
ELECTRIC CABLE SPECIAL SIGNAL SYSTEM
17
ELECTRIC CABLE LOUDSPEAKER
17
ELECTRIC CABLE LOUDSPEAKER
17
ELECTRIC CABLE LOUDSPEAKER
18
PLUG SOCKET
19
ELECTRIC CABLE POWER SUPPLY TO LEGROOM PLUG SOCKET, RIGHT
20
SHEET METAL SCREW
119
CONTROL UNIT SPECIAL SIGNAL SYSTEM OPERATING PART
123
BRACKET
127
SHEET METAL SCREW , Replaced By: N000000000459
127
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
129
SCREW
133
BRACKET BRACKET TO LUGGAGE COMPARTMENT FLOOR, RIGHT
140
BRACKET MOUNTING PLATE AND LOUDSPEAKER
147
NUT BALL PIVOT TO LEVER
147
NUT BRACKET TO BUMPER
154
WASHER , Replaced By: N009021006208
154
WASHER COMPRESSED AIR LINE TO BRACKET
161
SCREW BRACKET TO LOUDSPEAKER
161
SCREW LOUDSPEAKER TO BRACKET
168
WASHER BOOT TO CAB FLOOR
175
BRACKET PARTITION PANEL TO LEFT SIDE MEMBER
182
SHEET METAL SCREW
189
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
196
HEXAGON HEAD BOLT
203
SCREW BRACKET TO TAIL LAMP BRACKET
210
LOCK WASHER T-FITTING TO BRACKET
217
COVERING
224
SHEET METAL SCREW BRACKET TO FIRE WALL
224
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
231
LOCK INSTRUMENT PANEL TO COWL
245
LOUDSPEAKER ROOF MOUNTED LOUDSPEAKER
252
LOUDSPEAKER
252
LOUDSPEAKER
254
BRACKET BETWEEN LOUDSPEAKER AND LOUDSPEAKER BRACKET
256
BRACKET LOUDSPEAKER
258
SHEET METAL SCREW
262
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
269
SHEET METAL SCREW
276
SHEET METAL SCREW VALVE TO WINDOW SILL
283
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
290
AMPLIFIER60 W, FROM CHASSIS 123.A 182586 F 027780 126.A 087564
290
AMPLIFIER60 W
290
AMPLIFIER60 W
290
AMPLIFIER60 W
297
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
304
MICROPHONE
311
BRACKET MICROPHONE
318
SCREW , Replaced By: N007985004107
320
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
321
WASHER COVERING TO CYCLONE AIR TRAP
325
WASHER COVERING TO CYCLONE AIR TRAP
332
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
