E 300 TURBODIESEL/4MATIC
124.333 200-320 FROM 10/92, 200D-300D FROM 7/93
32 SPRINGS,SUSPENSION AND HYDRAULICS

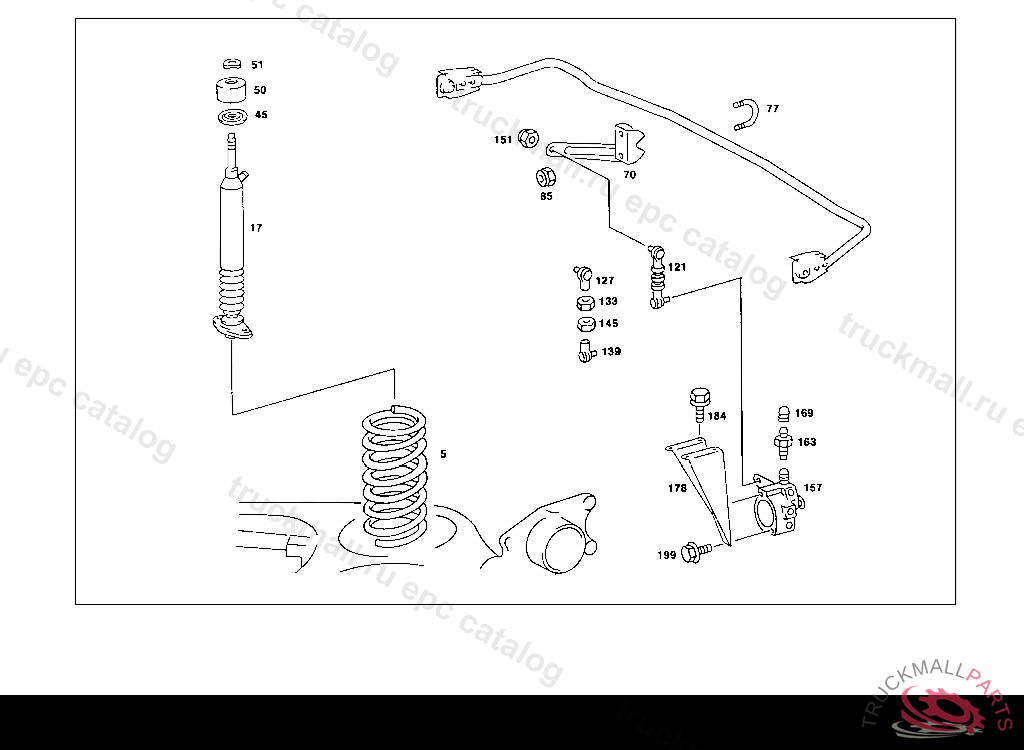

001 SELF-LEVELLING DEVICE ON REAR AXLE IL.6

E 300 TURBODIESEL/4MATIC - 124.333 200-320 FROM 10/92, 200D-300D FROM 7/93 - 32 SPRINGS,SUSPENSION AND HYDRAULICS

Поз.
Артикул
Описание
5
A1263241704
REAR SPRING
5
A1243241404
REAR SPRING AS REQUIRED
5
A2013242704
REAR SPRING
5
A2013242804
REAR SPRING
5
A2013244004
REAR SPRING
5
A1233242704
REAR SPRING
5
A2013242604
REAR SPRING
5
A1243242204
REAR SPRING
5
A2013243704
REAR SPRING
5
A1243242004
REAR SPRING
5
A1233243604
REAR SPRING
5
A2013243204
REAR SPRING
5
A1153242704
REAR SPRING , 107.022 009324 026 002145
5
A1233240604
REAR SPRING
5
A1243241304
REAR SPRING AS REQUIRED
17
A1163204613
HYDROPN. SPRING LEG REAR
17
A1263204813
HYDROPN. SPRING LEG , A 428209
17
A1163204513
HYDROPN. SPRING LEG ,107.022 009323
45
A2013260067
RETAINER HYDROPNEUMATIC SPRING LEG TO FRAME, A 218637
45
A1243260467
RETAINER HYDROPNEUMATIC SPRING LEG TO FRAME, A 218638 F 000001
45
A1163260067
RETAINER HYDROPNEUMATIC SPRING LEG TO FRAME
45
A1243260167
RETAINER , Replaced By: A1243260467
50
A1143260068
RUBBER BUFFER HYDROPNEUMATIC SPRING LEG TO FRAME
51
N000137010201
SPRING WASHER STEERING COLUMN BRACKET TO CAB
70
A1263261569
LEVER AT TORSION BAR,A 383213
70
A1263261269
LEVER ,A 383212, Replaced By: A1263261569, +001A1163280026
77
A1233280026
MOUNTING BOW LEVER TO TORSION BAR, 123.000 075123 102 054657
77
A2013280326
MOUNTING BOW ,A 383212, Replaced By: A1163280026, +001A1263261569
77
A1163280026
MOUNTING BOW LEVER TO TORSION BAR
85
N913023005002
NUT RELAY TO BRACKET M5
85
N913023005000
NUT , Replaced By: N913023005002
121
A1233201489
ROD FROM TORSION BAR TO SELF-LEVELLING UNIT
127
A1233280063
JOINT R.H. THREAD
133
N000934006007
NUT BALL PIVOT TO LEVER
139
A1233280163
JOINT L.H. THREAD
145
N000934006012
NUT L.H. THREAD
151
N910113006000
NUT HEATING PIPE TO BRACKET
151
N913004006001
NUT PUMP TO BRACKET
151
N913004006002
NUT , Replaced By: N913004006001
157
A1233200258
VALVE , Replaced By: A1243200058
157
A1243200058
VALVE , Replaced By: A2023200058
157
A2023200058
VALVE , Replaced By: A2023200258
157
A2023200258
VALVE HEIGHT CONTROL VALVE
163
A1233280065
PIPE SOCKET OIL DRAIN
169
A0004217187
PROTECTIVE CAP ,5 962906
178
A1263281440
BRACKET HEIGHT CONTROL VALVE TO FRAME
184
N914031006300
COMBINATION BOLT BRACKET TO FRAME
199
N000000002270
SCREW BELL HOUSING LOWER PART TO BELL HOUSING
199
N910106006006
HEXAGON HEAD BOLT , Replaced By: N000000002270
199
N914125006306
SCREW , Replaced By: N910106006006
999
A1153261768
RUBBER BUFFER SHOCK ABSORBER TO FRAME
999
A1243200031
SHOCK ABSORBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 367936, Replaced By: A1243200231
999
A1243200131
SHOCK ABSORBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 367936, Replaced By: A1243200331
999
A1243200331
SHOCK ABSORBER , Replaced By: A1243201131
999
A1243200531
SHOCK ABSORBER , Replaced By: A1243200931
999
A1243200631
SHOCK ABSORBER REAR
999
A1243200831
SHOCK ABSORBER , Replaced By: A1243201131
999
A1243205772
LINE CONNECTION "N", FROM CONTROL VALVE TO SERVICE VALVE
999
A1263200031
SHOCK ABSORBER REAR
999
A1263200131
SHOCK ABSORBER REAR
999
A1269970034
SCREW. RETAINING SCREW
999
A1803260168
RUBBER BUFFER
999
A2013200031
SHOCK ABSORBER REAR
999
A2013200131
SHOCK ABSORBER REAR
999
A2013261268
RUBBER BUFFER SHOCK ABSORBER TO FRAME, A 367936
999
A2013261700
SHOCK ABSORBER REAR
