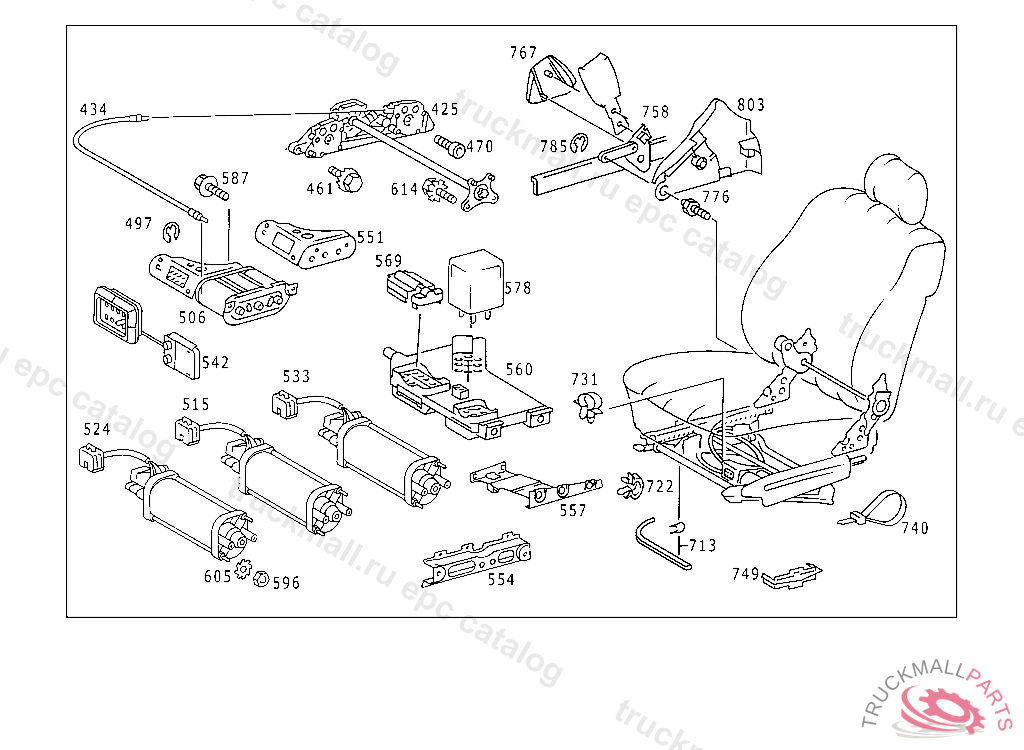

Поз.
Артикул
Описание
425
GEARING HEIGHT ADJUSTMENT
434
SHAFT HEIGHT ADJUSTMENT,REAR
461
SCREW TUNNEL,FRONT FLOOR M8X20
470
SCREW GEARING TO SEAT HEIGHT ADJUSTMENT
497
LOCK PLATE
506
ELECTRIC MOTOR HEIGHT ADJUSTMENT
515
ELECTRIC MOTOR SEAT HEIGHT ADJUSTMENT,FRONT
524
ELECTRIC MOTOR SEAT HEIGHT ADJUSTMENT,REAR
533
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT,A 297972
542
PLUG 8-POLE
551
BRACKET 8-PIN PLUG
554
BRACKET MOTOR TO SEAT HEIGHT ADJUSTMENT
557
BRACKET MOTOR TO SEAT HEIGHT ADJUSTMENT
560
CONTACT RAIL
569
COVER CONTACT PLATE
578
RELAY HEADREST DRIVE
587
SCREW MOTOR TO BRACKET
596
NUT MOTOR TO BRACKET
605
SERRATED WASHER MOTOR TO BRACKET
614
SCREW
713
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
713
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
722
CLAMP BOWDEN CABLE TO CAB
731
CLAMP ELECTRIC CABLE TO DOOR INTERIOR PLATE
740
LOOM TIE
749
COVERING CABLE TO ELECTRIC WINDOW REGULATOR MOTOR, REAR DOOR
758
BRACKET
758
BRACKET
767
COVERING LEFT
767
COVERING RIGHT
776
SCREW BACKREST TO SEAT FRAME
785
CATCH BACKREST TO SEAT FRAME
803
COVERING RIGHT RECLINING SEAT FITTING,LEFT SEAT
803
COVERING LEFT RECLINING SEAT FITTING,RIGHT SEAT
