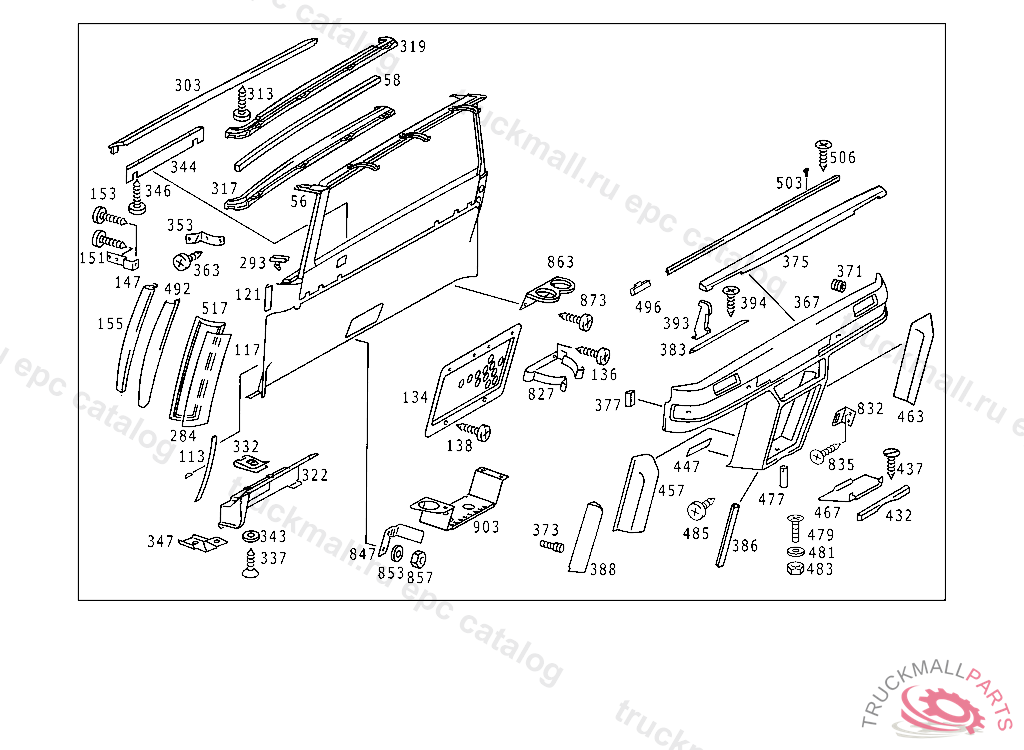

Поз.
Артикул
Описание
56
INSULATION WINDOW RUN LINING,LATERAL REAR
58
INSULATION BETWEEN TOP FRAME AND ROOF PANELLING
113
FILLER
113
FILLER
117
COVER PARTITION PANEL,REAR
121
COVER PARTITION PANEL,REAR LATERAL
134
COVERING
136
SHEET METAL SCREW BRACKET TO FIRE WALL
138
SHEET METAL SCREW CENTRAL NOZZLE TO INSTRUMENT PANEL
147
BRACKET PANELLING TO CENTRAL PILLAR
151
SHEET METAL SCREW BRACKET TO CAB
153
SHEET METAL SCREW
155
PANELLING RIGHT
155
PANELLING LEFT
155
PANELLING RIGHT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BI
155
PANELLING LEFT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BI
284
GLASS PANE LATERAL LEFT
284
GLASS PANE LATERAL RIGHT
293
BRACKET LEFT SIDE PANE,BOTTOM
293
BRACKET RIGHT SIDE PANE,BOTTOM
303
PANELLING CENTRAL FRONT
313
WOOD SCREW
317
PANELLING TOP,TRANSVERSE
319
PANELLING TOP,TRANSVERSE, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BI
319
PANELLING TOP,TRANSVERSE
322
COVERING PARTITION PANEL,BOTTOM LEFT
322
COVERING PARTITION PANEL,BOTTOM RIGHT, NO.7088I NO.5072I NO.8312I NO.8384I NO.8407I NO.6095 AI NO.3107I NO.7124I I NO.6130 BI
322
COVERING PARTITION PANEL,BOTTOM LEFT, NO.7088I NO.5072I NO.8312I NO.8384I NO.8407I NO.6095 AI NO.3107I NO.7124I I NO.6130 BI
322
COVERING PARTITION PANEL,BOTTOM RIGHT
332
LOCK FUEL LINE
337
SHEET METAL SCREW COVERING TO PARTITION PANEL
343
WASHER
344
COVERING BEHIND FRONT SEAT BACKREST,TOP RIGHT
344
COVERING BEHIND FRONT SEAT BACKREST,TOP LEFT
346
SHEET METAL SCREW
347
BRACKET BRACKET TO SEAT FRAMEWORK
353
BRACKET LEFT
353
BRACKET RIGHT
363
SHEET METAL SCREW TYPE PLATE,K 262628
367
PANELLING PARTITION PANEL
371
THREADED DOWEL PANELLING TO PARTITION PANEL
373
STUD PANELLING TO PARTITION PANEL
375
LEDGE TOP
377
LEDGE LEFT AND RIGHT
383
LEDGE LATERAL BOTTOM LEFT
383
LEDGE LATERAL BOTTOM RIGHT
386
LEDGE IN BAR COMPARTMENT,LATERAL REAR LEFT
386
LEDGE IN BAR COMPARTMENT,LATERAL REAR RIGHT
388
LEDGE IN BAR COMPARTMENT,LATERAL FRONT RIGHT
388
LEDGE IN BAR COMPARTMENT,LATERAL FRONT LEFT
393
PLATE REINFORCEMENT IN PARTITION PANELLING
394
SHEET METAL SCREW
432
LEDGE
437
WOOD SCREW
447
WEB
457
COVER INSIDE LEFT
463
COVER INSIDE RIGHT
467
COVER BOTTOM
477
THREADED CHUCK PANELLING
479
SCREW GUIDE TO STEERING COLUMN END,5 227753
481
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
483
NUT TACHOGRAPH TO BRACKET
485
SHEET METAL SCREW
492
COVER WINDOW RUN
496
CLIP
503
RAIL SEAL RAIL TO CENTRAL FRONT PANELLING
506
SHEET METAL SCREW BLIND PLUG SOCKET
517
SEAL RIGHT SIDE WINDOW
517
SEAL LEFT SIDE WINDOW
827
SPRING BOTTLE FIXTURE IN BAR COMPARTMENT
832
BRACKET ADJUSTER TO COVERING
835
SHEET METAL SCREW
847
CONSOLE LEFT
847
CONSOLE RIGHT
853
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
857
NUT BALL PIVOT TO LEVER
863
BRACKET INSIDE LATERAL RIGHT
873
SHEET METAL SCREW TACHOGRAPH
873
SHEET METAL SCREW
903
BOTTOM
999
COVER AT WINDOW RUN,LATERAL LEFT AND RIGHT, FRONT
999
COVER AT WINDOW RUN,LATERAL LEFT AND RIGHT, REAR
999
DUCT TOP RIGHT, FROM CHASSIS:126.023078014033039681037028347
999
DUCT TOP LEFT, FROM CHASSIS:126.023078014033039681037028347
