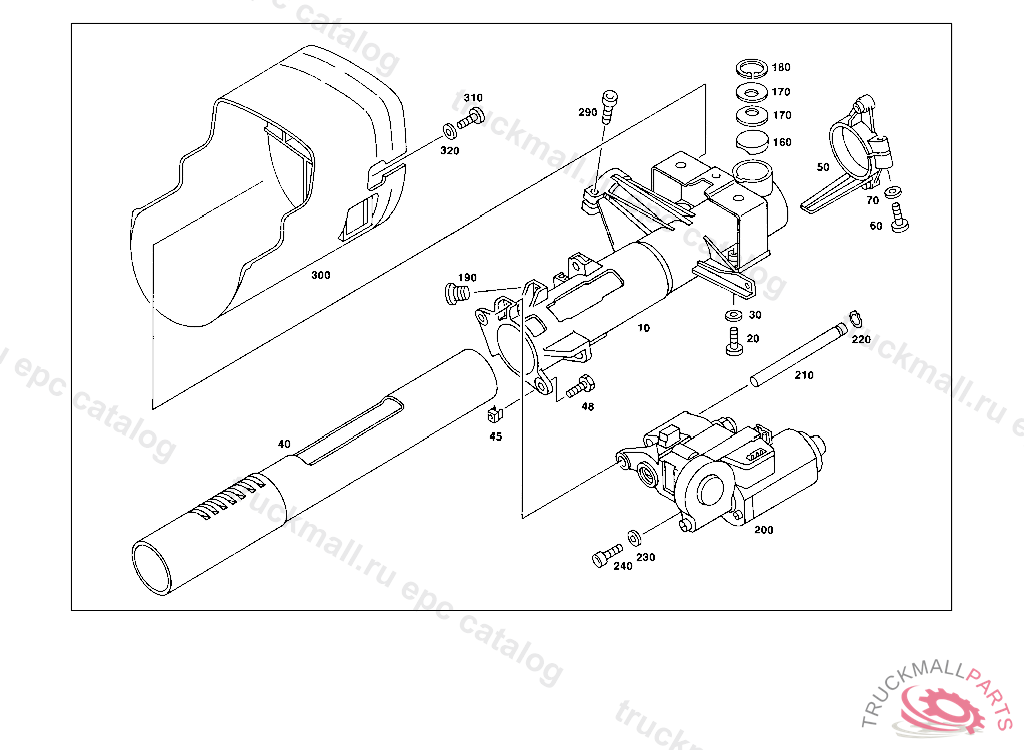

Поз.
Артикул
Описание
10
STEER. COLUMN JACKET TUBE OUTSIDE
20
SCREWM 6X16
20
SCREW BEARING BRACKET TO TRANSMISSION
30
WASHER BRACKET TO HEAT SHIELD
40
STEER.COLUMN JACKET TUBE INSIDE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
40
STEER.COLUMN JACKET TUBE , Replaced By: A1244621220
45
NUT RETAINER HEATER UNIT TOP BRACKET TO BODY
48
SCREW , Replaced By: N304017006018
48
SCREW COVER PLATE TO COVER PLATE M 6 X 12
50
BRACKET BLINKER SWITCH, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
60
SCREW OIL TANK TO BRACKET
70
WASHER BRACKET TO HEAT SHIELD
160
THRUST WASHER , Replaced By: A1244600422
170
DISC SPRING , Replaced By: A1244600422
180
LOCK RING21 MM
190
SCREW
200
GEARING
200
GEARING , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1264600325
210
PIN
220
LOCK HOSE FASTENING
230
WASHER EXHAUST MUFFLER TO STRAP
230
SPACER WASHER , Replaced By: N000125008418
230
WASHER , Replaced By: N000125008443
240
SCREW GRIP RAIL MOUNTING M 8 X 25
290
SCREW , Replaced By: N000912006175
290
SCREW , Replaced By: A0019907212
290
SCREW SHIM TO LEAF SPRING
300
COVER
310
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
320
SPRING WASHER ALTERNATOR CONNECTION D+
999
CLIP BELT LOCK TO SEAT RAIL
999
CLAMPING PIECE
999
CLAMPING PIECE
999
BRACKET , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1244622539
999
STEERING SHAFT , Replaced By: A1264602109
999
STEER. COLUMN JACKET TUBE
999
SEAL RING
999
BRACKET
