Поз.
Артикул
Описание
5

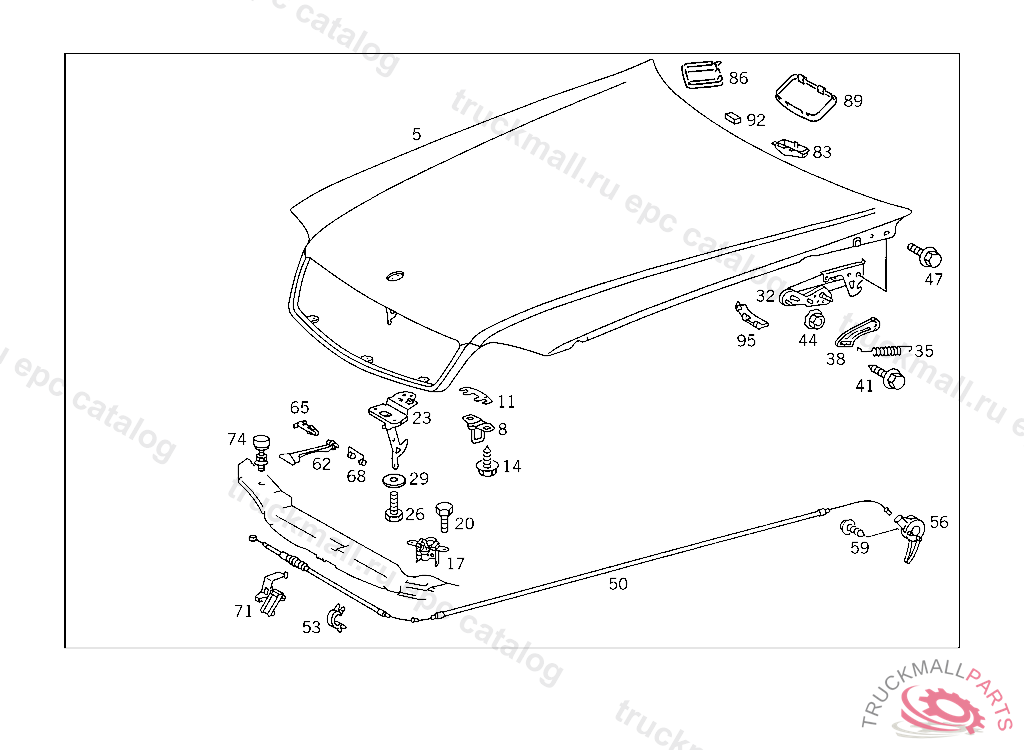

ENGINE HOOD
5
ENGINE HOOD , Replaced By: A1298800357
5
ENGINE HOOD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. F 048569, Replaced By: A1298800557, +001A1298890525
8
ENGINE HOOD CATCH UPPER PART
11
PAD CATCH TO ENGINE HOOD
14
SCREW
17
FASTENER LOWER PART
17
ENGINE HOOD CATCH ,A 151394 ORDER ADDITIONALLY: WITH BURGLARY ALARM SYSTEM 1X A140 821 34 51, Replaced By: A2028800160
20
SCREW PUMP TO BRACKET
23
SAFETY HOOK
23
SAFETY HOOK , Replaced By: A1408800964
26
SCREW COVER PLATE TO COVER PLATE M 6 X 12
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
HINGE ENGINE HOOD,RIGHT
32
HINGE ENGINE HOOD, LEFT
35
SPRING BETWEEN LEVER AND BRACKET ON FRONT PANEL PILLAR,LEFT
35
SPRING BETWEEN LEVER AND BRACKET ON FRONT PANEL PILLAR,RIGHT
35
SPRING , Replaced By: A1408870379
35
SPRING , Replaced By: A1408870479
35
SPRING , Replaced By: A1408871179
35
SPRING , Replaced By: A1408871279
38
LEVER ENGINE HOOD HINGE,RIGHT
38
LEVER ENGINE HOOD HINGE,LEFT
41
SCREW
41
SCREW , Replaced By: A1249900901
44
NUT HINGE TO WHEELHOUSE
47
SCREW ENGINE HOOD TO HINGE
50
ENGINE HOOD RELEASE CABLE
50
ENGINE HOOD RELEASE CABLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1298800059, +001A1169973481
53
CLAMP , Replaced By: A0009956044
53
CLAMP BOWDEN CABLE TO CAB
56
HANDLE ENGINE HOOD UNLOCKING
59
TAPPING SCREW LIGHTING UNIT TO LATERAL STIFFENING 4.8X25
62
HANDLE
65
PIN AT HANDLE
68
SPRING HANDLE TO SAFETY HOOK
71
DEFLECTOR SAFETY HOOK
71
DEFLECTOR , Replaced By: A1298870145
74
BUFFER , Replaced By: A2019880511
74
BUFFER LEFT, FROM CHASSIS: 010 077937
83
COVERING ON ENGINE HOOD BRACKET,REAR, TO COVER WASHER NOZZLES ON THE LEFT
83
COVERING ON ENGINE HOOD BRACKET,REAR, TO COVER WASHER NOZZLES ON THE RIGHT
86
COVERING ON ENGINE HOOD REAR BRACKET STIFFENING,RIGHT, F 000416
86
COVERING ON ENGINE HOOD REAR BRACKET STIFFENING,RIGHT, F 000417
89
COVERING , F 000417
92
SEAL UNIT COMPARTMENT,ABOVE THE CABLE DUCTS
95
PAD BETWEEN ENGINE HOOD PANELLING AND REAR BRACKET 250 MM
95
PAD BETWEEN ENGINE HOOD PANELLING AND REAR BRACKET100 MM
999
ORNAMENTAL COVER , NOT USED
999
RIVET COVERING TO FRAME SIDE PART AND TO SIDE MEMBER,FRONT,F 187025
