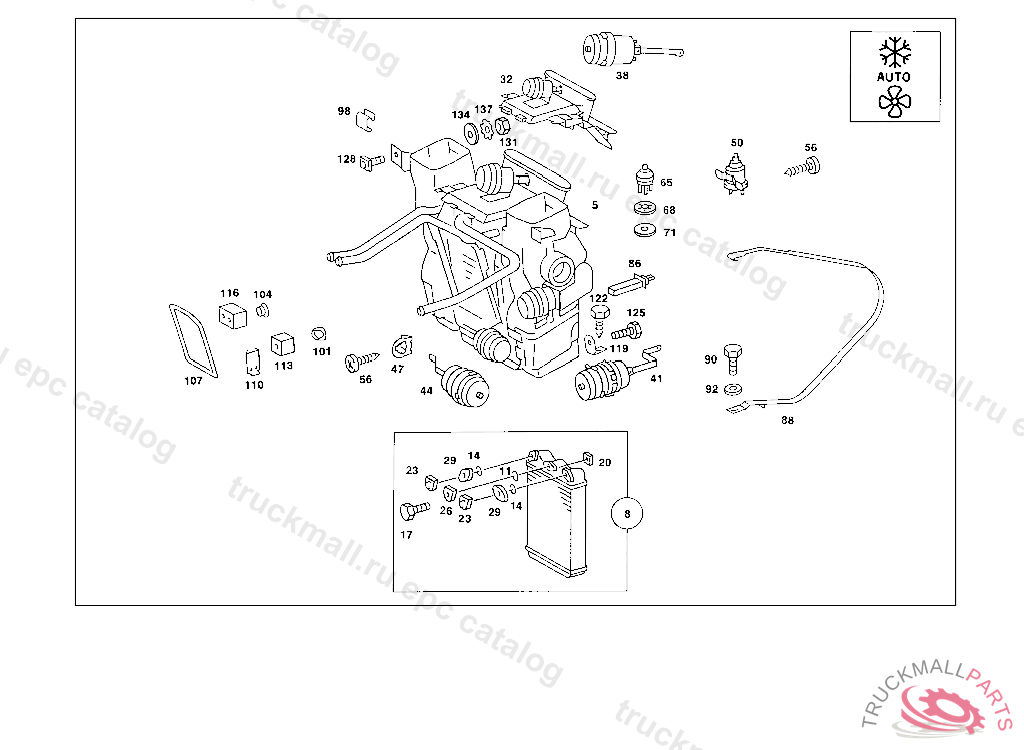

Поз.
Артикул
Описание
5
HEATER CASE
8
HEAT EXCHANGER , Replaced By: A0028352901
8
HEAT EXCHANGER
11
SEAL
14
SEAL
17
SCREW
20
NUT
23
GROMMET
26
GROMMET
29
FLANGE
32
PIPE SOCKET , FROM MODEL YEAR '81
38
ELEMENT CENTRAL NOZZLE
41
ELEMENT DEFROSTER NOZZLE FLAP CONTROL, FROM MODEL YEAR '81
44
ELEMENT LEGROOM FLAP LEVER, FROM MODEL YEAR '81
47
BRACKET VACUUM ELEMENT TO LEGROOM FLAP, FROM MODEL YEAR '81
86
TEMPERATURE SENSOR (HEAT EXCHANGER),AT HEATER CASE
86
TEMPERATURE SENSOR , Replaced By: A1268301772
88
BRACKET HEATER CASE WITH HEAT EXCHANGER, 023 193636 033 079829 123 207997 130 211344 223 005817
90
SCREW PIPE CLAMP
90
SCREW , Replaced By: N304017008021
92
WASHER , Replaced By: N000125008443
98
SPRING , Replaced By: A0008352134
101
SPACER
104
SPACER
107
SEAL
110
SPRING
113
SEAL
116
SEAL
119
BRACKET
122
SCREW BRACKET TO FIRE WALL
122
SHEET METAL SCREW , Replaced By: N000000000542
125
SCREW COVER PLATE TO BRACKET
125
SCREW PUMP TO BRACKET
128
SCREW
131
NUT BALL PIVOT TO LEVER
134
WASHER COMPRESSED AIR LINE TO BRACKET
134
WASHER , Replaced By: N009021006208
137
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
