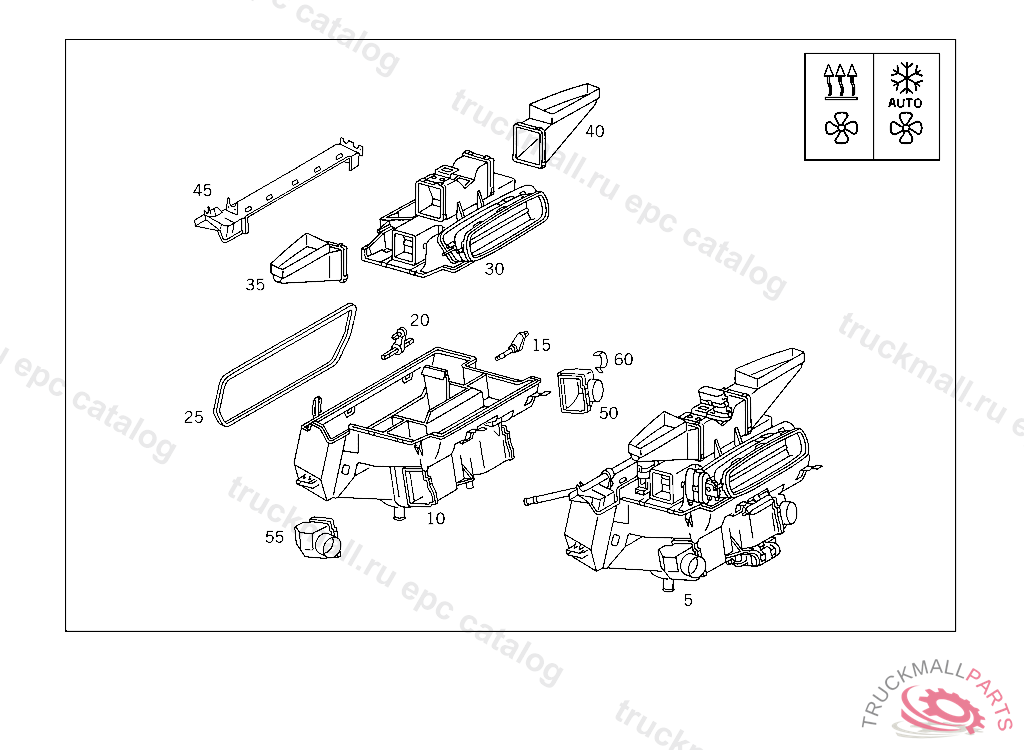

Mercedes A2019884178 - ЗАЖИМ

5

HEATER CASE ONLY USED W/AUTOMATIC AIR CONDITIONER, UP TO IDENT NO.F 022920,REMOVE BREATHER PIPE ON HEAT EXCHANGER, IN ITS PLACE, INSTALL 129 835 00 78 PLUGF 103297 F 125157 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM F 125158 WITH CODE 805

10

HOUSING LOWER PART, WHEN USED WITH TEMPMATIC,BORE THE MARKED SECOND OPENING FOR TEMP.SENSOR F 125157 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM F 125158 WITH CODE 805

15

LEVER , F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806

20

LEVER TEMPERING VALVE, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806

25

SEAL HEATER CASE TO FIRE WALL

30

HOUSING UPPER PART

35

HOUSING LEFT

40

HOUSING RIGHT

45

HOUSING EVAPORATOR CASE

50

HOUSING RIGHT,F 103297

55

HOUSING LEFT,F 103297

60

SPRING

999

TEMPERATURE SENSOR EVAPORATOR, NOT USED
