Mercedes N304017006018 - Болт

SL 500 JAPAN 129.068 320-600 FROM 06/98

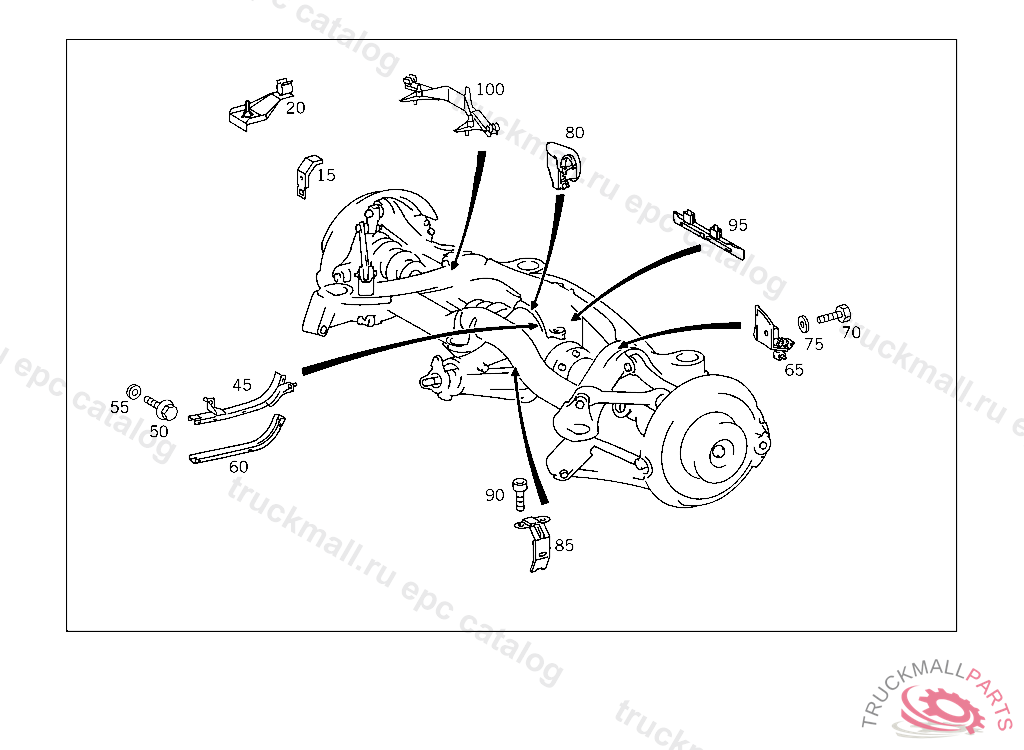

32 SPRINGS,SUSPENSION AND HYDRAULICS - 090 FRONT TORSION BAR & HEIGHT CONTROL VALVE USED WITH SELF-LEVELLING DEVICE

Поз.
Артикул
Описание
15
A2105460443
BRACKET SCREWED ON BRAKE BRACKET-WHEEL CARRIER,LEFT/RIGHT
20
A1295462443
BRACKET BRAKE LINING WEAR INDICATOR
45
A1295400093
CABLE DUCT ,F 187343
45
A1295400018
RAIL
50
N914007006013
COMBINATION BOLT
55
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
55
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
60
A1295460064
CAP COVER TO RAIL, ONLY FOR USE WITH ACCELERATION SKID CONTROL(A S R)
65
A1295462143
BRACKET
70
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
75
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
75
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
80
A1295462243
BRACKET
85
A1295452340
BRACKET UNDER FUEL PUMP PACKAGE BRACKET
90
N000912006095
SCREW DOOR HANDLE TO DOOR
95
A1295460181
COVERING
100
A1295462343
BRACKET BRAKE LINING WEAR INDICATOR CABLE TO REAR AXLE, ONLY FOR USE WITH ACCELERATION SKID CONTROL(A S R)
