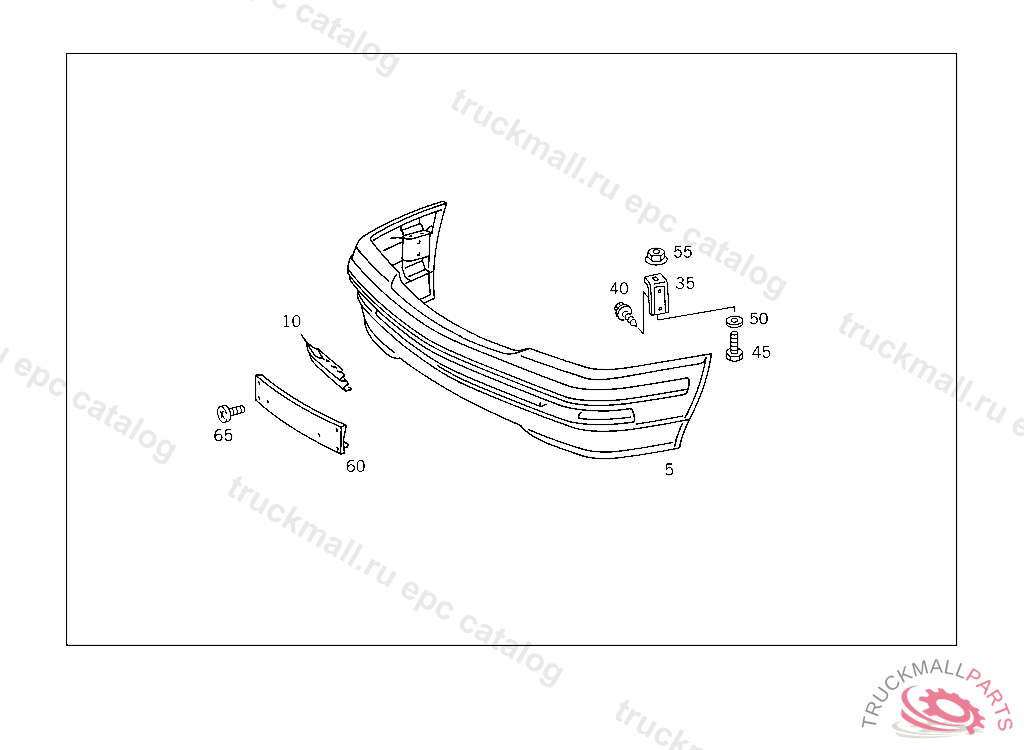

Mercedes A1298801470 - БАМПЕР ПЕРЕДНИЙ

SL 500 JAPAN 129.068 320-600 FROM 06/98

88 ATTACHMENT PARTS - 030 FRONT BUMPER

Поз.
Артикул
Описание
5
A1298801470
FRONT BUMPER FACE BAR , F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806 TO BE PAINTED PRIOR TO INSTALLATION FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 905 + 910
10
A1298800205
ESCUTCHEON TOWING BRACKET COVER FLAP
35
A1298850012
ANGLE ON BUMPER BRACKET
40
A2019901501
SCREW BUMPER TO WHEELHOUSE ANGLE
45
N000933008301
SCREW , Replaced By: A0079900801
45
A0079900801
SCREW REDUCTION VALVE TO BRACKET
50
A1089900340
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
55
A0019902150
NUT BUMPER TO TAIL CENTRAL PIECE
60
A1298851081
LICENSE PLATE MOULDING
65
A2029900121
SCREW COVERING TO FRONT BUMPER
