Поз.
Артикул
Описание

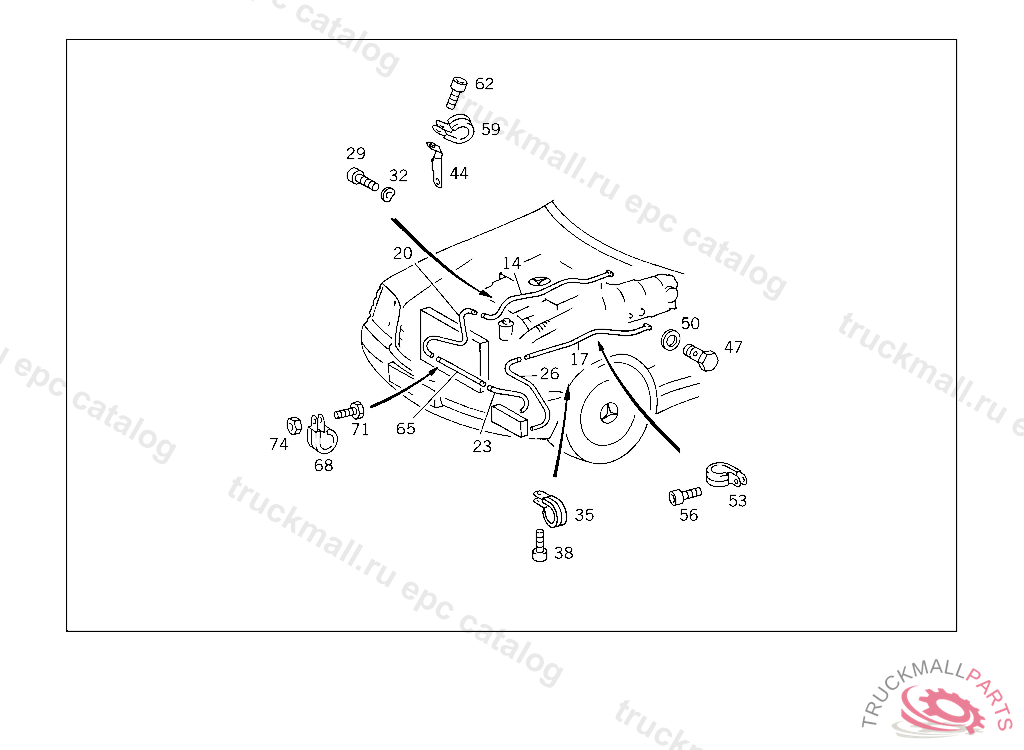

14
LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
14
LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
17
LINE FROM TRANSMISSION TO OIL COOLER,LEFT
17
LINE FROM TRANSMISSION TO OIL COOLER,LEFT
20
HOSE FROM ENGINE JUNCTION TO OIL COOLER, FROM IDENT NO. 556500 ALSO INSTALLED ON 543411,543418,551588,551771,552021,552392,552551,552654,552687,552840,552846,553000,553005,553105, 553112,553264,553332,554081,554103,554213,554266,554270,554993,555186,555885,555992,556138,556169, 556181,556184,556187,556189,556194-556197,556215.
20
HOSE , Replaced By: A0209973382
20
HOSE FROM TRANSMISSION TO AIR COOLED OIL COOLER,RIGHT
23
HOSE FROM TRANSMISSION TO AIR COOLED OIL COOLER,RIGHT
26
HOSE FROM TRANSMISSION TO AIR COOLED OIL COOLER,LEFT
29
SCREW RUBBER BUFFER TO SPRING LEAF
32
SPRING WASHER LICENSE PLATE TO BRACKET
35
CLAMP , Replaced By: N916016010211
38
SCREW HOUSING TO INSTRUMENT PANEL
38
SCREWROCKINGER,TYP 59 U150
38
SCREW , Replaced By: A0009847929
44
BRACKET OIL LINE TO ENGINE
47
HOLLOW SCREW , Replaced By: N915036010109
50
SEAL RING INJECTION PUMP
53
CLAMP , Replaced By: N916016010211
56
SCREW BEARING BRACKET TO TRANSMISSION
56
SCREWROCKINGER,TYP 59 U150
56
SCREW , Replaced By: A0009847929
56
SCREWM 6X16
59
CLAMP , Replaced By: N916016010211
62
SCREW , Replaced By: A0009847929
62
SCREWROCKINGER,TYP 59 U150
65
LINE OIL COOLER LINE TO RADIATOR
68
CLAMP CABLE HARNESS MOUNTING
68
CLAMP , Replaced By: N000000001045
71
SCREW , Replaced By: N304017006016
71
SCREW PUMP TO BRACKET
74
NUT BATTERY CABLE MOUNTING,5 193595
74
NUT , Replaced By: N000439006204
74
NUT BATTERY CABLE TO CABLE CONNECTOR,5 193595
