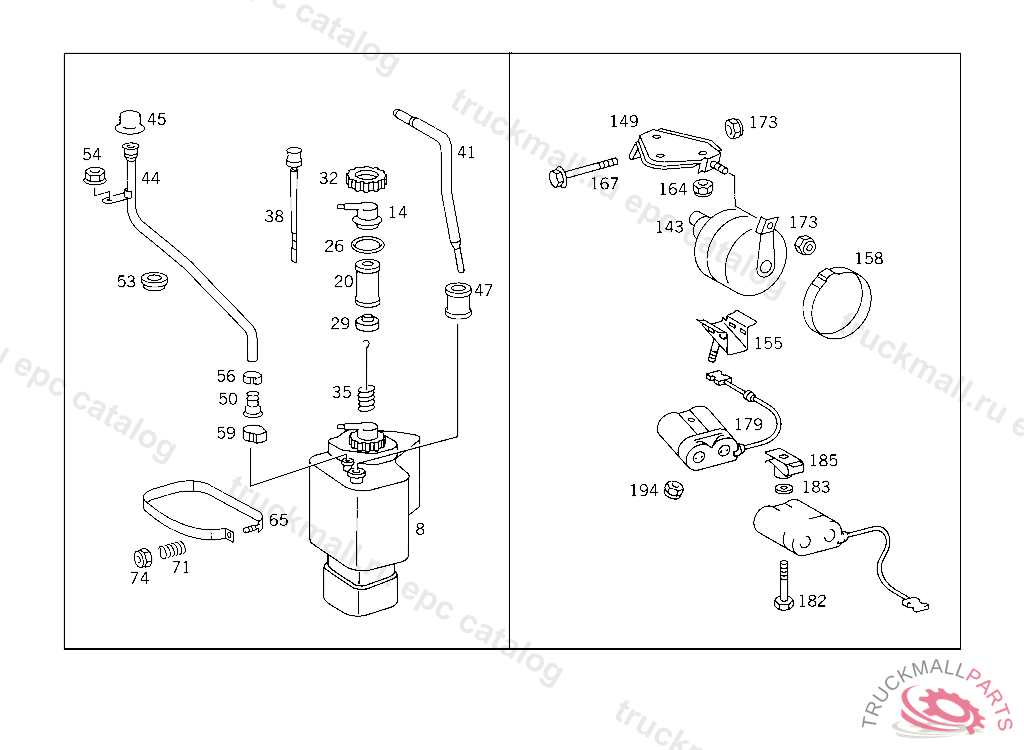

Поз.
Артикул
Описание
8
RESERVOIR SELF-LEVELLING DEVICE OIL RESERVOIR
14
COVER SELF-LEVELLING DEVICE OIL RESERVOIR
20
OIL FILTER
26
SEAL RING
29
SEAL RING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
32
NUT
35
SPRING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
38
HOUSING OIL DIPSTICK
41
SUCTION PIPE
44
LINE OIL FILLER NECK
45
PROTECTIVE CAP
47
GROMMET
50
GROMMET
53
GROMMET
54
NUT , Replaced By: A2109900150
54
NUT , Replaced By: A2109900150
54
HEXAGON NUT W COLLAR BRACKET MOUNTING
56
LOOM TIE
59
LOOM TIE
65
STRAP
71
SPRING OIL RESERVOIR TO CONSOLE
74
NUT OIL TANK TO BRACKET
143
AIR CELL (SPRING LOAD ACCUMULATOR)
149
BRACKET
155
BRACKET
158
LOOM TIE
164
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
NUT , Replaced By: N913004008001
167
COMBINATION BOLT SPRING LOAD ACCUMULATOR TO BRACKET
173
NUT HORN TO BRACKET M8
179
VALVE (DAMPING VALVE),REAR LEFT
179
VALVE ,A 148128, Replaced By: A1403271825, +001A1404405934
179
VALVE ,A 148128, Replaced By: A1403271825, +001A1404405934
182
SCREW , Replaced By: N304017008043
182
SCREW VALVE TO BRACKET M 8X55
183
WASHER , Replaced By: N000125008443
185
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
194
NUT HORN TO BRACKET M8
