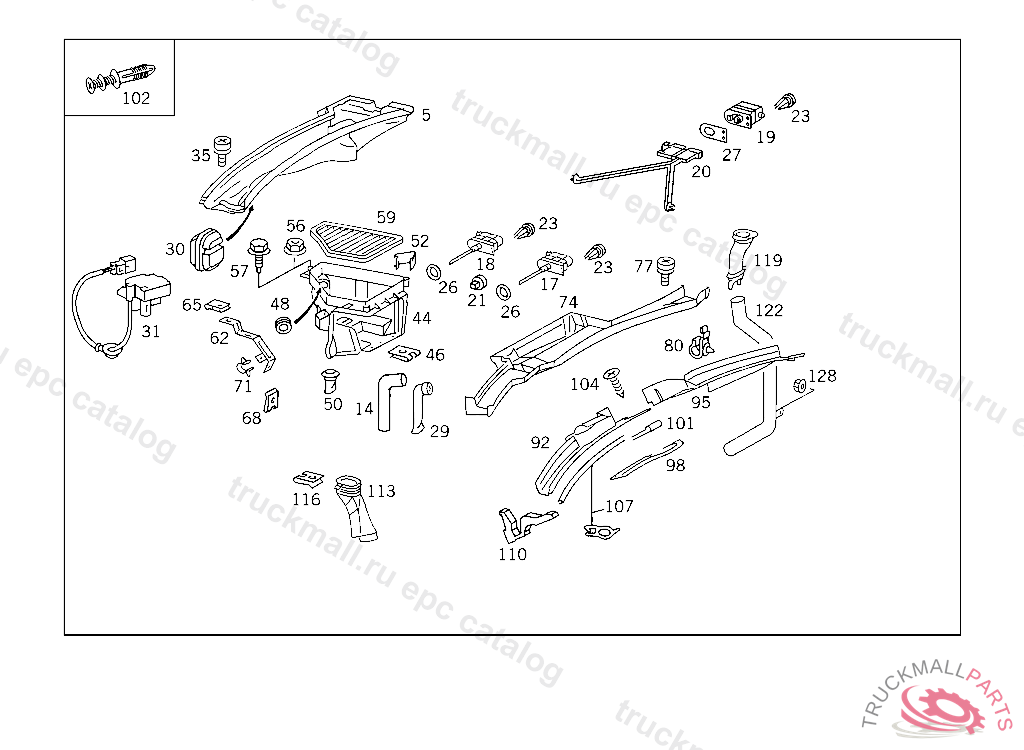

Поз.
Артикул
Описание
5
AIR DUCT
5
AIR DUCT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 183682, Replaced By: A1408303844
5
AIR DUCT , Replaced By: A1408304144, +001A1169870244
14
INSULATING HOSETO 140 831 02 97,140 831 03 97 -60MM-, TO BE ADAPTED DURING ASSEMBLY
17
ELEMENT FLAP ACTUATION, A 183682
18
ELEMENT FLAP ACTUATION, A 183682
19
ELEMENT FLAP ACTUATION, A 183683
20
LEVER FLAP ACTUATION, A 183683
21
CLIP , A 183682
23
RIVET AT FLAP IN HOUSING
26
SEAL , A 183682
27
SEAL CIRCULATING-AIR VACUUM ELEMENT
29
HOSE WATER DRAIN,RIGHT
29
HOSE WATER DRAIN,LEFT, A 183682
30
VALVE WATER DRAIN, A 183683
31
SENSOR GASEOUS POLLUTANT SENSOR, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
35
SCREW AIR DUCT ON INTAKE SHELL,A 082605A 284236
35
COMBINATION BOLT AIR DUCT ON INTAKE SHELL,A 082604
35
COMBINATION BOLT AIR DUCT ON INTAKE SHELL,A 082604
35
SCREW AIR DUCT ON INTAKE SHELL,A 082605A 284236
44
SHELL AT FIRE WALL, A 144703 IF NEW SHELL IS INSTALLED BLOWER CAN NO LONGER BE USED! ORDER 1 X 140 831 41 46 + 1 X 116 987 02 44
46
LOCK INSTRUMENT PANEL TO PANELLING
48
GROMMET VENTILATION BLOWER TO INTAKE SHELL
50
GROMMET INTAKE SHELL WATER DRAIN
52
CLIP INTAKE SHELL TO FRONT PANEL,A 124971
56
NUT , Replaced By: N910112006001
56
NUT BRACKET TO PIN
57
SCREW INTAKE SHELL TO BRACKET,A 213305
59
DUST FILTER IN INTAKE SHELL
59
DUST FILTER
62
BRACKET
65
NUT RETAINER
68
LOCK COVERING TO INSTRUMENT PANEL,TOP
71
CLAMP
74
WATER TANK AT FIRE WALL
77
COMBINATION BOLT LIGHTING UNIT TO LATERAL STIFFENING
80
CLAMP
92
WATER BAFFLE ABOVE WIPE SYSTEM,LEFT,A 166303
92
WATER BAFFLE ,A 166302, Replaced By: A1408302128, +001A1408302428, +001A1408302628
95
WATER BAFFLE ,A 166302, Replaced By: A1408302428, +001A1408302128, +001A1408302628
95
WATER BAFFLE ABOVE WIPE SYSTEM,RIGHT,A 166303
98
WATER BAFFLE ABOVE WIPE SYSTEM,CENTER
98
WATER BAFFLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 164840, Replaced By: A1408302628
101
LOCK RIGHT PANELLING TO SIDE MEMBER
102
RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
104
SHEET METAL SCREW WATER BAFFLE TO CROSS MEMBER,A 166302
104
TAPPING SCREW , Replaced By: N914127004207
104
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
107
SEAL ON WATER BAFFLE
107
SEAL ON WATER BAFFLE
110
SEAL ON WATER BAFFLE,LEFT
113
PIPE SOCKET BETWEEN CONNECTION SUPPORT AND WATER BAFFLE,TOP
116
LOCK INSTRUMENT PANEL TO PANELLING
119
PIPE SOCKET TOP RIGHT
122
HOSE WATER DRAIN,RIGHT
122
HOSE WATER DRAIN,LEFT
128
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
128
FASTENER BUTTON , Replaced By: A0019889581
