Mercedes A0049902712 - Болт

ML 350 163.157 FROM 09/2000

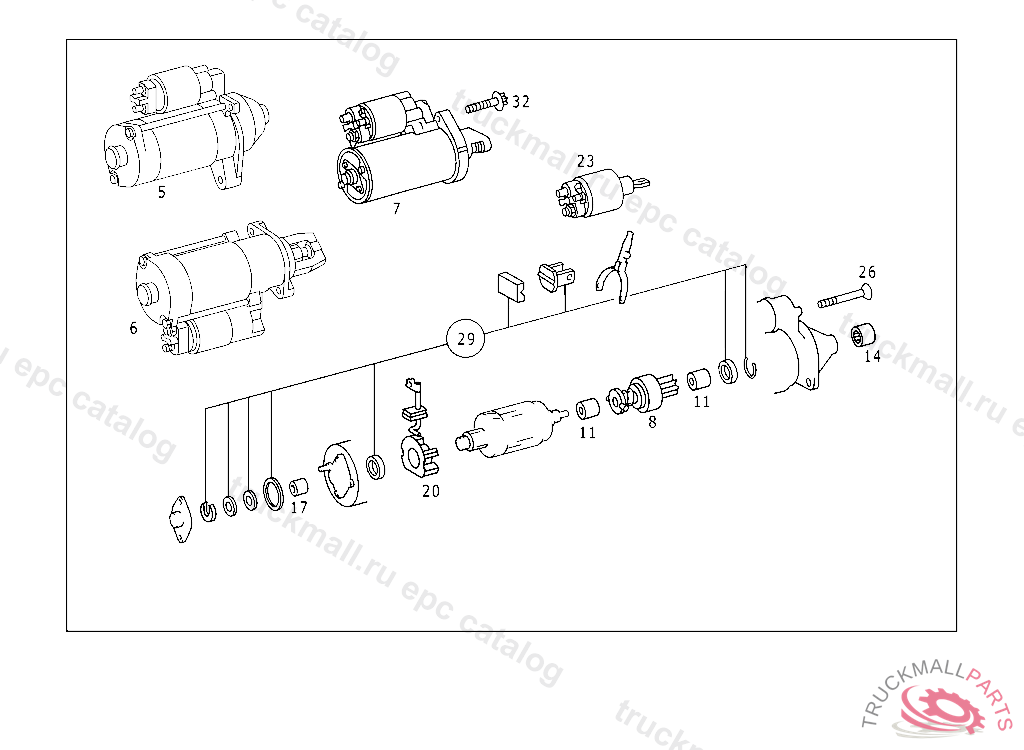

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 023 STARTING MOTOR

Поз.
Артикул
Описание
7
A0051516501
STARTING MOTORBOSCH
8
A0011512113
STARTER PINION. PINIONTO A 112 151 00 01
11
A0001515350
BUSHING STARTER PINION TO 112 151 00 01
14
A0199811910
NEEDLE BEARING DRIVE END BEARING TO 112 151 00 01
17
A0001516850
SINTERED BUSH. BUSHING COMMUTATOR END SHIELD TO A 004 151 69 01, A 005 151 06 01
20
A0011514914
CARBON BRUSH SET
20
A0011512514
CARBON BRUSH SET STARTING MOTOR BOSCH,TO A 005 151 65 01
23
A0011522810
SOLENOID SWITCHTO A 112 151 00 01
26
A0049902712
BOLT. SCREW SOLENOID SWITCH TO HOUSING TO A 004 151 64 01/ 69 01
29
A0001513615
TS ARMATURE. ARMATURE (PARTS KT),DRIVE END BEARING BOSCH, TO A 004 151 64 01/ 69 01
32
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
