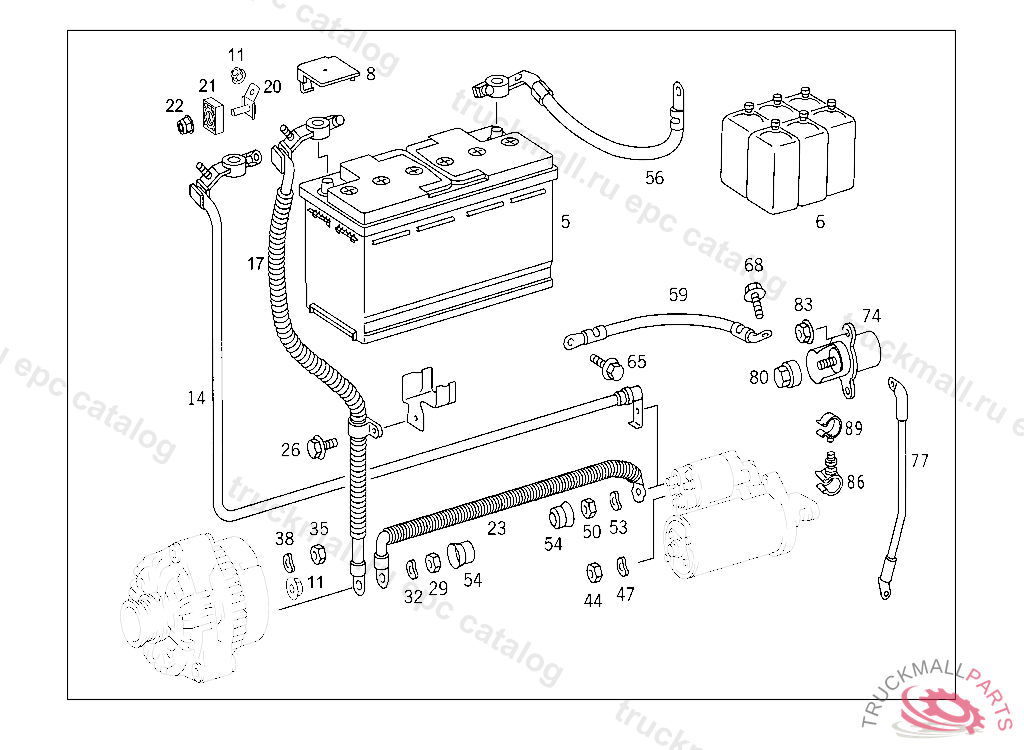

Поз.
Артикул
Описание
5
BATTERY PARTS KIT
5
BATTERY100 AH
6
BATTERY ACID BOTTLE SET
8
BOOT POS. POLE
11
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
17
POSITIVE CABLE TO ALTERNATOR
20
BRACKET TO FUSE
23
POSITIVE CABLE FROM STARTING MOTOR TO ALTERNATOR, A 319543 ALSO INSTALLED IN VEHICLE 317803,317910,318227,318440,318477,318515,318517,318523,318535,318538,318542,318543,318546,318550, 318557,318776,318842,318980,319309,319318,319399.
26
SCREW BRACKET MOUNTING M6X10
29
NUT
32
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
35
NUT CLAMP TO BRACKET
38
SPRING WASHER ALTERNATOR CONNECTION D+
44
NUTM6
47
SPRING WASHER LICENSE PLATE TO BRACKET
50
NUT , Replaced By: A0005480472
50
NUT HORN TO BRACKET M8
53
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
54
PROTECTION CAP , Replaced By: A0008310929
54
CAP SCREW HEAD COVERING
56
GROUND STRAP BATTERY
59
GROUND STRAP ENGINE BLOCK GROUND
59
GROUND STRAP RIGHT WHEEL ARCH L210 MM
59
GROUND STRAP RIGHT WHEEL ARCH L300 MM, TO BE ADAPTED DURING ASSEMBLY
65
SCREW SPEED SENSOR TO REAR AXLE
68
SCREW CATALYST
74
CABLE CONNECTOR TO FIRE WALL,RECHTS, A 371935 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE TO A 371934 WITH CODE 803
74
CABLE CONNECTOR TO FIRE WALL,RECHTS, A 371934 X 778320 EXCEPT CODE 803 ALSO INSTALLED IN VEHICLE FROM A 371935 WITH CODE 802
74
CABLE CONNECTOR TO FIRE WALL,RECHTS, A 145273 X 707756 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 145272, X 707755 WITH CODE 800
77
ELECTRIC CABLE INBOARD CABLE HARNESS
80
NUT CABLE HARNESS MOUNTING
83
NUT , Replaced By: N913023006001
83
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
86
CLAMP BRAKE HOSE
89
CLAMP HOSE TO HOSE 20 MM
