Поз.
Артикул
Описание

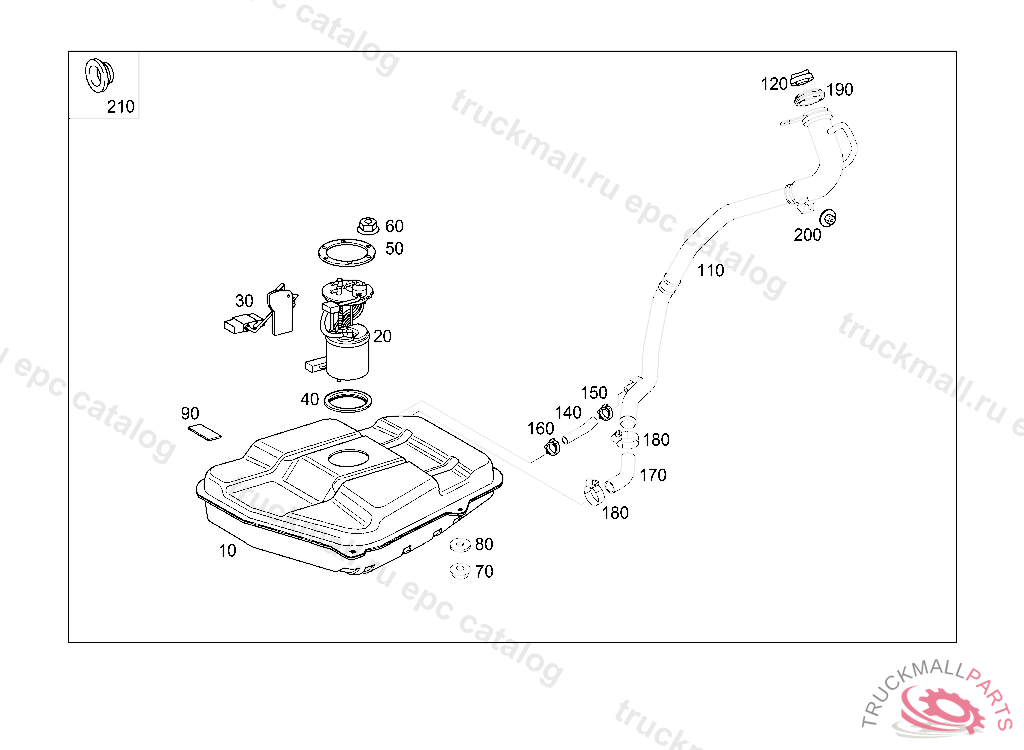

10
FUEL TANK54 L.
20
DELIVERY UNIT
20
DELIVERY UNIT , Replaced By: A1684703494
30
SENDER UNIT FUEL GAUGE
40
SEAL RING DELIVERY UNIT TO RESERVOIR
50
RING DELIVERY UNIT
60
MULTIPLE NUT DELIVERY UNIT TO RESERVOIR
70
HEXAGON NUT
80
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
90
SHIM FUEL TANK FRONT SIDE,LEFT AND RIGHT
110
FILLER NECK , Replaced By: A1684703420
110
FILLER NECK , Replaced By: A1684703420
110
FILLER NECK
120
FILLER CAP CENTRAL LOCKING MECHANISM TO 124 470 08 04 / 09 04
120
FUEL FILLER CAP WITH REBOUND STRAP
120
FILLER CAP
140
HOSE FROM VENT PIPE TO FILLER NECK 400 MM, 000 098845 003 049444 007 042062 083 000290 086 000150 093 000121 102 079297 103 079274 105 099374 183 000405 190 000351
150
LOOM TIE BREATHER LINE TO FUEL TANK
160
LOOM TIE BREATHER LINE TO FUEL TANK
170
HOSE FILLER NECK TO FUEL TANK
180
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
190
GROMMET FILLER NECK TO FRAME
200
PLASTIC NUT. NUT
210
SEALING GROMMET
