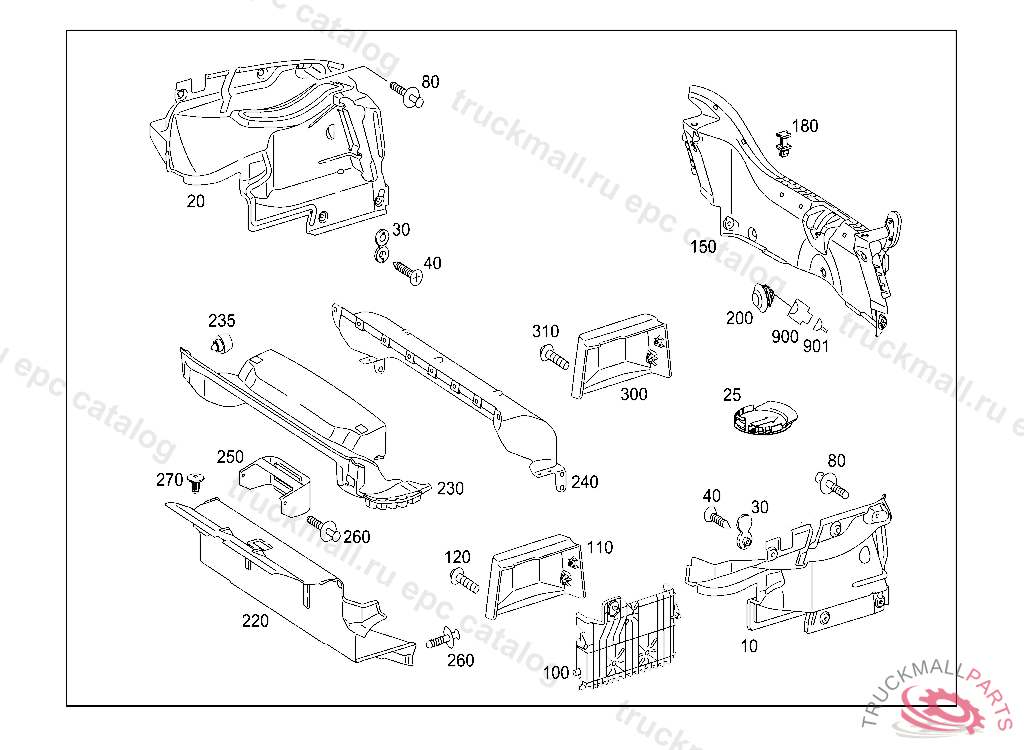

Поз.
Артикул
Описание
10
PANELING LUGGAGE COMPARTMENT, LATERAL LEFT
10
PANELING LUGGAGE COMPARTMENT, LATERAL LEFT
10
PANELING LUGGAGE COMPARTMENT, LATERAL LEFT
20
PANELING LUGGAGE COMPARTMENT,LATERAL RIGHT
20
PANELING TRUNK, SIDE, RIGHT
25
CAP ON SIDE PANELLING
30
CAP LINING TO LEFT LONGITUDINAL MEMBER
40
TAPPING SCREW4.2X32
80
RIVET RESERVOIR TO FIRE WALL
100
BRACKET LUGGAGE COMPARTMENT, LATERAL LEFT
110
LEFT COVERING AT BRACKET
120
SCREW W COLLAR A DRIVEM5X35
150
PANELING LOADING EDGE
150
PANELING LOADING EDGE
180
RIVET REAR BODY PANEL,BOTTOM,A 561621I
200
SWITCH LUGGAGE COMPARTMENT INTERIOR CONTROL, A 23717420010831 F 16659520010831
220
PANELING TANK PARTITION WALL, BOTTOM
220
PANELING TANK PARTITION WALL, BOTTOM
220
PANELING TANK PARTITION WALL, BOTTOM
230
PANELING TANK PARTITION WALL, TOP
235
RUBBER BUFFER. RUBBER BUMPER VIBRATION SAFETY DEVICE, FOLDING ROOF
240
COVER
250
PANELING BETWEEN TANK PARTITION WALL, TOP AND BOTTOM
250
PANELING BETWEEN TANK PARTITION WALL, TOP AND BOTTOM
260
RIVET RESERVOIR TO FIRE WALL
270
PLUG. STOP PLUG FILLER TO A-PILLAR RIGHT
300
COVER SATELLITE RADIO, NO LONGER AVAILABLE
310
SCREW W COLLAR A DRIVEM5X35
900
PLUG HOUSING BUS NODE ROOF 6-PIN MQS,N70/3
901
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
