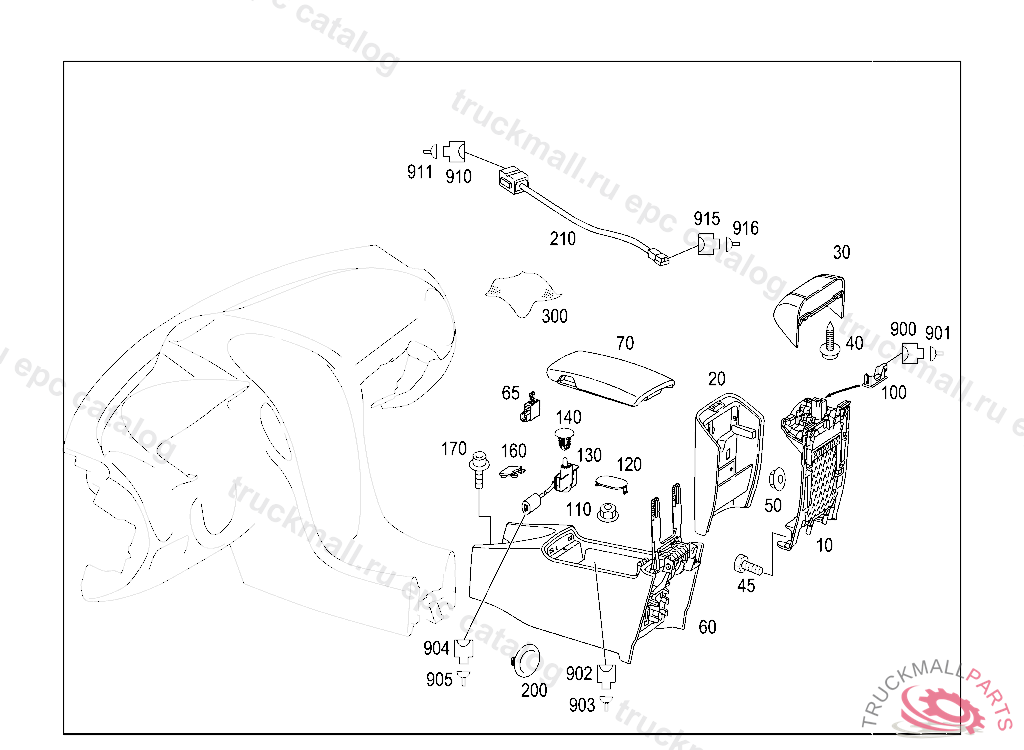

Поз.
Артикул
Описание
10
BRACKET HOUSING
10
BRACKET HOUSING
20
COVER TO HOUSING, REAR PANEL
20
COVER TO HOUSING, REAR PANEL, F 11394720060110 9D53 871A/872A/844A/875A/877A/878AQFT171A3165 BLACK
30
COVER ON COVER
30
COVER ON COVER
30
COVER ON COVER
30
COVER ON COVER
40
BOLT. SCREW
45
SCREW , WITH DIESEL ENGINE
50
NUT , Replaced By: N913023006001
60
CONSOLE PIGEONHOLE
60
PIGEONHOLE CONSOLE
60
PIGEONHOLE CONSOLE
60
PIGEONHOLE CONSOLE
60
CONSOLE PIGEONHOLE
60
PIGEONHOLE CONSOLE
60
PIGEONHOLE CONSOLE
60
PIGEONHOLE CONSOLE
65
RELAY FASTENER
65
RELAY CATCH, ARMREST, F 11394820060110
70
COVER TO HOUSING ARMREST
70
COVER TO HOUSING ARMREST, Replaced By: A1716800696
70
COVER ARMREST , 9E38 908A+P61 QFT171A3117 BLACK
70
COVER TO HOUSING ARMREST
70
COVER ARMREST
70
COVER TO HOUSING ARMREST
70
COVER TO HOUSING ARMREST
70
COVER TO HOUSING ARMREST
70
COVER TO HOUSING ARMREST
100
INTERIOR LAMP TRAY, F 129679 T 028296 EXCEPT CODE 809 EXCEPT T 029773 ALSO INSTALLED IN VEHICLE TO F 129678, T 028295 WITH CODE 800 ALSO INSTALLED ON T 001258
110
NUT , Replaced By: N913023006001
120
COVER CAP LEFT AND RIGHT
130
SWITCH TO STOWAGE COMPARTMENT (ATA), 9107QFT171A1004 MIDSOFT BLACK
140
PLUG TO STOWAGE COMPARTMENT WITHOUT (ATA)
160
COVER HAND BRAKE LEVER
170
SCREW W COLLAR A DRIVEM5X35
200
CAP REAR SIDE MEMBER
210
ELECT. LINE CENTRAL LOCKING CENTER SHELF, F 17710020070930808
210
WIRING HARNESS CENTRAL LOCKING CENTER SHELF, F 19720120080331809
300
MICROFIBER CLOTH , F 11394720060110
900
SOCKET HOUSING. PIN BUSHING HOUSING FRONT MIRROR R 27, 2 PIN
901
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
902
SOCKET HOUSING. PIN BUSHING HOUSING FRONT MIRROR R 27, 2 PIN
903
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
904
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
905
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
910
PLUG SOCKET ACTUATOR, CENTRAL LOCKING, CENTER STOWAGE M14/19, to A 171 540 47 10
911
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
915
PIN BUSHING HOUSING CONNECTOR, DASH SUPPORT WIRING HARNESS FRONT MIRROR HEATING X 209, 2 PINCODE A
916
PLUG PINX 209, 0.75 MM2
