Поз.
Артикул
Описание

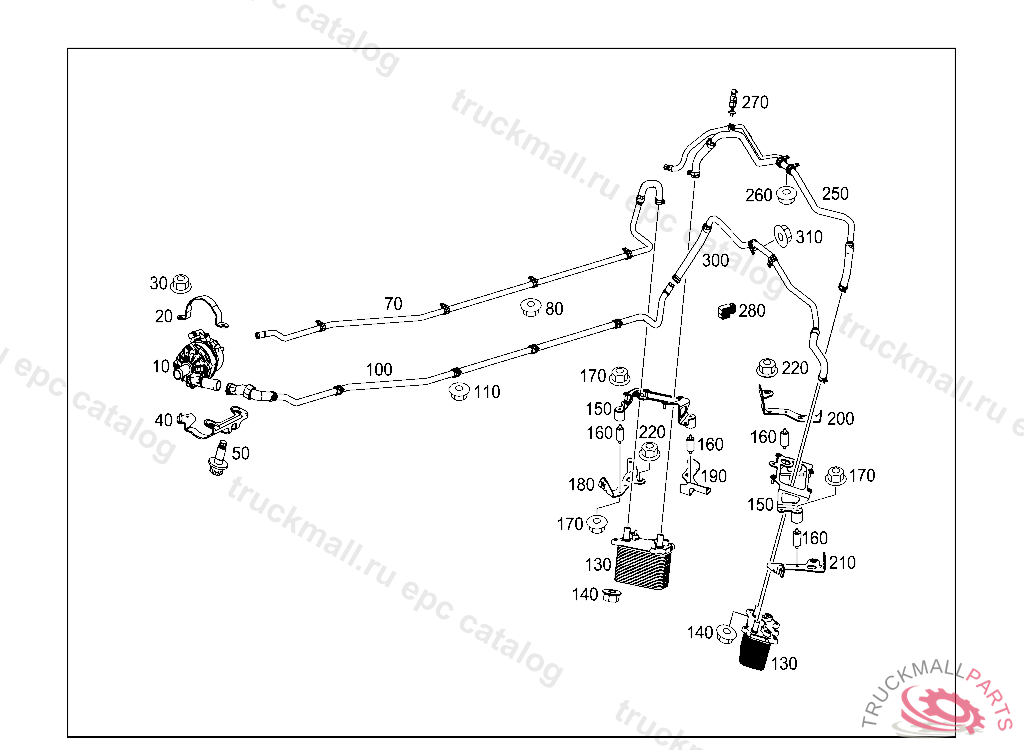

10
COOLANT PUMP BATTERY COOLING SYSTEM CIRCUIT
20
RETAINING CLIP WATER PUMP TO BRACKET
30
NUT , Replaced By: N913023006001
40
BRACKET WATER PUMP
50
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
70
RETURN LINE SEPARATION POINT TO OIL COOLER
80
NUT , Replaced By: N913023006001
100
FEED LINE FEED
110
NUT , Replaced By: N913023006001
130
OIL COOLER LEFT
140
NUT , Replaced By: N913023006001
150
BRACKET OIL COOLER,RIGHT
160
RUBBER BUMPER ON REFRIGERANT COMPRESSOR BRACKET
170
NUT , Replaced By: N913023006001
180
BRACKET OIL COOLER,RIGHT, Replaced By: A1975004531
180
BRACKET OIL COOLER,RIGHT
190
BRACKET OIL COOLER,RIGHT
190
BRACKET OIL COOLER,RIGHT, Replaced By: A1975004731
200
BRACKET OIL COOLER,LEFT, Replaced By: A1975004631
200
BRACKET OIL COOLER,LEFT
210
BRACKET OIL COOLER,LEFT
210
BRACKET OIL COOLER,LEFT, Replaced By: A1975004431
220
NUT , Replaced By: N913023006001
250
COOLANT LINE FROM OIL COOLER TO OIL COOLER
260
NUT , Replaced By: N913023006001
270
LINE HOLDER VENTILATION LINE AT POWER STEERING EXPANSION RESERVOIR
280
BRACKET ATTACHMENT OF VENT LINE
300
HOSE ASSEMBLY FROM CONNECTING POINT TO OIL COOLER
310
NUT , Replaced By: N913023006001
